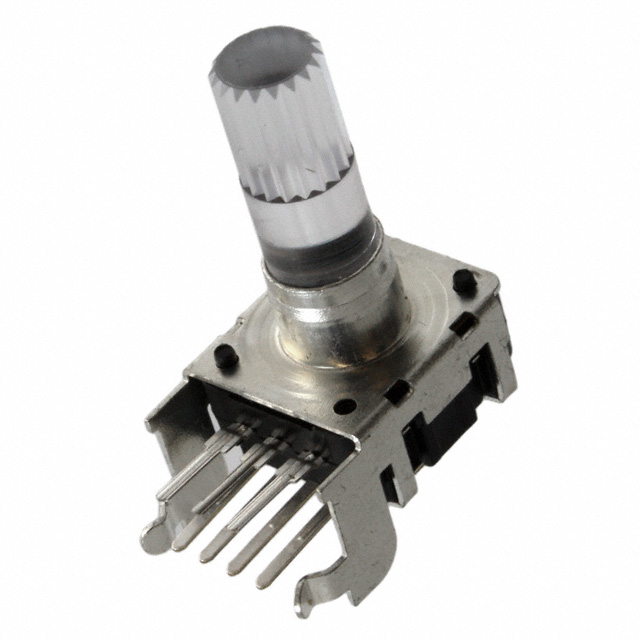

PEL12D-2225S-S1024
ActiveBourns Inc.
ROTARY ENCODER MECHANICAL 24PPR
Deep-Dive with AI
Search across all available documentation for this part.
PEL12D-2225S-S1024
ActiveBourns Inc.
ROTARY ENCODER MECHANICAL 24PPR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PEL12D-2225S-S1024 |
|---|---|
| Actuator Type | 6mm Dia Knurled End, Illuminated |
| Built in Switch | True |
| Detent | True |
| Encoder Type | Mechanical |
| Orientation | Right Angle |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 24 per Revolution |
| Rotational Life (Cycles Min) [Min] | 30K |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.48 | |
| 5 | $ 4.05 | |||
| 10 | $ 3.79 | |||
| 25 | $ 3.47 | |||
| 40 | $ 3.24 | |||
| 100 | $ 3.05 | |||
| 300 | $ 2.79 | |||
| 500 | $ 2.62 | |||
| 1000 | $ 2.45 | |||
Description
General part information
PEL12D Series
Rotary Encoder Mechanical 24 Quadrature (Incremental) Right Angle
