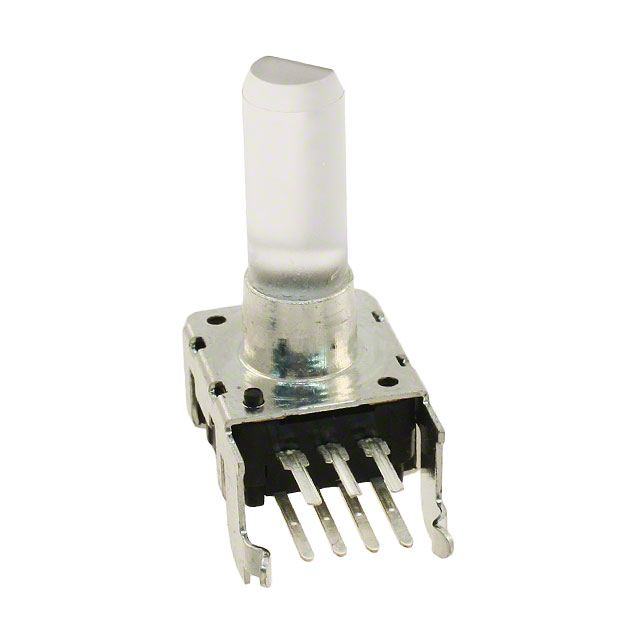

PEL12D-2226F-S3024

Active

Bourns Inc.

ROTARY ENCODER MECHANICAL 24PPR

Search across all available documentation for this part.

Active

Bourns Inc.

ROTARY ENCODER MECHANICAL 24PPR

Technical Specifications

Parameters and characteristics for this part

Specification	PEL12D-2226F-S3024

Actuator Type	Illuminated
Actuator Type [diameter]	6 mm
Built in Switch	True
Detent	True
Encoder Type	Mechanical
Orientation	Right Angle
Output Type	Quadrature (Incremental)
Pulses per Revolution	24 per Revolution
Rotational Life (Cycles Min) [Min]	30K
Termination Style	PC Pin

Part	Actuator Type	Actuator Type [diameter]	Rotational Life (Cycles Min) [Min]	Output Type	Termination Style	Pulses per Revolution	Orientation	Encoder Type
Bourns Inc. PEL12D-2226F-S3024	Illuminated	6 mm	30K	Quadrature (Incremental)	PC Pin	24 per Revolution	Right Angle	Mechanical
Bourns Inc. PEL12D-2225S-S1024	6mm Dia Knurled End Illuminated		30K	Quadrature (Incremental)	PC Pin	24 per Revolution	Right Angle	Mechanical
Bourns Inc. PEL12D-4021F-S1024	Illuminated	6 mm	30K	Quadrature (Incremental)	PC Pin	24 per Revolution	Vertical	Mechanical
Bourns Inc. PEL12D-4225T-S3024	6mm Dia Knurled End Illuminated		30K	Quadrature (Incremental)	PC Pin	24 per Revolution	Vertical	Mechanical
Bourns Inc. PEL12D-4225S-S1024	6mm Dia Knurled End Illuminated		30K	Quadrature (Incremental)	PC Pin	24 per Revolution	Vertical	Mechanical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 2.45

General part information

Rotary Encoder Mechanical 24 Quadrature (Incremental) Right Angle
