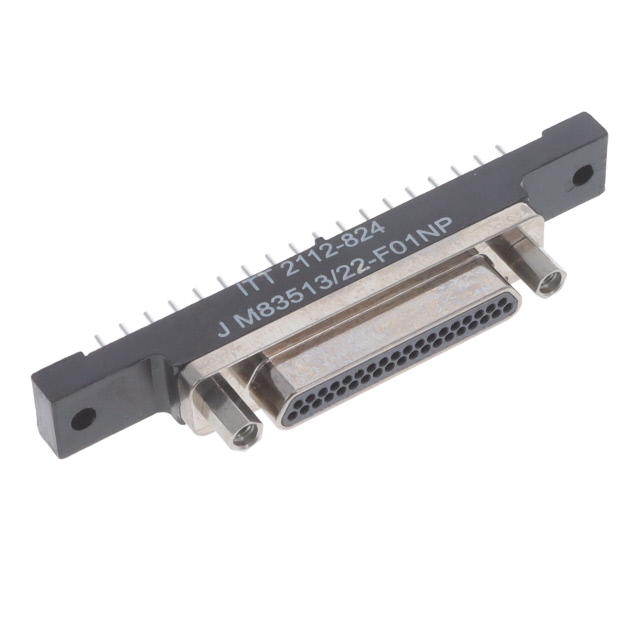

M83513/22-F01NP

Active

ITT Cannon, LLC

CABLE ASSY D TO MIC D 37POS

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CABLE ASSY D TO MIC D 37POS

Technical Specifications

Parameters and characteristics for this part

Part	2nd Connector	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Type	Shielding	1st Connector
ITT Cannon, LLC M83513/22-E02NN	Individual Wire Leads	Gold	31	50 µin	1.27 µm	D-Type Micro-D	Unshielded	Plug Male Pins
ITT Cannon, LLC M83513/22-F03NP	Individual Wire Leads	Gold	37	50 µin	1.27 µm	D-Type Micro-D	Unshielded	Plug Male Pins
ITT Cannon, LLC M83513/22-F01NP	Individual Wire Leads	Gold	37	50 µin	1.27 µm	D-Type Micro-D	Unshielded	Plug Male Pins
ITT Cannon, LLC M83513/22-B02NN	Individual Wire Leads	Gold	15	50 µin	1.27 µm	D-Type Micro-D	Unshielded	Plug Male Pins
ITT Cannon, LLC M83513/22-E03NN	Individual Wire Leads	Gold	31	50 µin	1.27 µm	D-Type Micro-D	Unshielded	Plug Male Pins
ITT Cannon, LLC M83513/22-A03CP		Gold	9	50 µin	1.27 µm
ITT Cannon, LLC M83513/22-B03CP	Individual Wire Leads	Gold	15	50 µin	1.27 µm	D-Type Micro-D	Unshielded	Plug Male Pins
ITT Cannon, LLC M83513/22-B03NP		Gold	15	50 µin	1.27 µm
ITT Cannon, LLC M83513/22-F03CN	Individual Wire Leads	Gold	37	50 µin	1.27 µm	D-Type Micro-D	Unshielded	Plug Male Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

D-Sub Cable Assembly D-Type, Micro-D Plug, Male Pins to Individual Wire Leads Unshielded

Technical documentation and resources

No documents available
