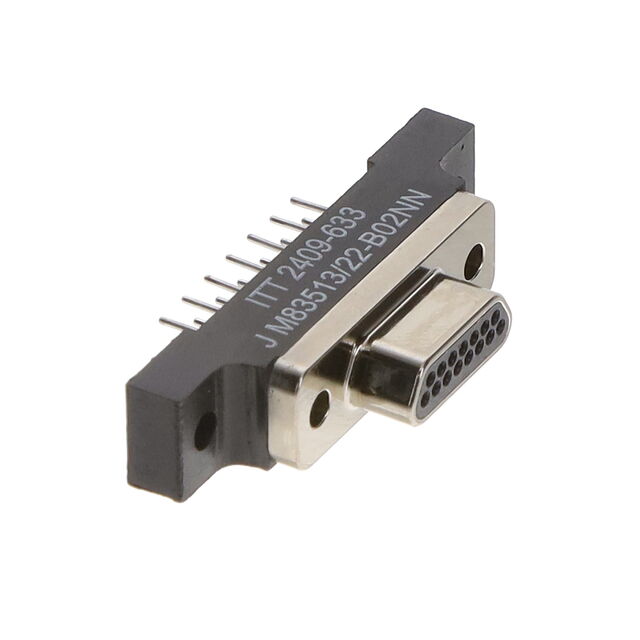

M83513/22-B02NN
ActiveD-SUB MIL SPEC CONNECTORS MICRO D METAL SHELL - 0.050 INCH SPACINGCONNECTOR, PLUG, BOARD STRAIGHT (BS), SIZES 9 - 3715 CONTACTSOLDERT POT0.140" LONG, #24 AWG SOLID COPPER WIRE PER QQ-W-343, TYPE S, SOLDER DIPPED
M83513/22-B02NN
ActiveD-SUB MIL SPEC CONNECTORS MICRO D METAL SHELL - 0.050 INCH SPACINGCONNECTOR, PLUG, BOARD STRAIGHT (BS), SIZES 9 - 3715 CONTACTSOLDERT POT0.140" LONG, #24 AWG SOLID COPPER WIRE PER QQ-W-343, TYPE S, SOLDER DIPPED
Description
General part information
Micro Series
D-Sub Cable Assembly D-Type, Micro-D Plug, Male Pins to Individual Wire Leads Unshielded
Technical Specifications
Parameters and characteristics for this part
| Specification | M83513/22-B02NN |
|---|---|
| 1st Connector | Male Pins, Plug |
| 2nd Connector | Individual Wire Leads |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Number of Positions | 15 |
| Shielding | Unshielded |
| Type | Micro-D, D-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
