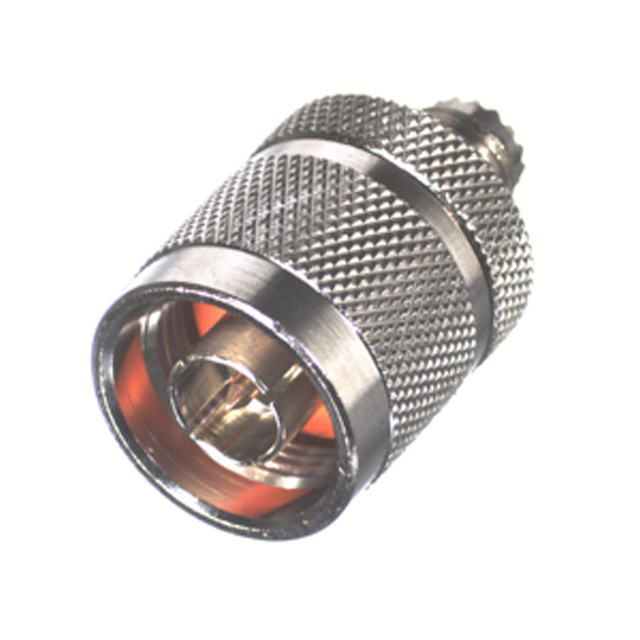

Specification	RFU-625-03

Adapter Series	N to UHF, Mini
Adapter Type	Plug to Jack
Body Finish	Nickel
Center Contact Plating	Silver
Center Gender	Male, Female
Conversion Type	Between Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End) Gender	Female Socket
Convert To (Adapter End) Type	UHF Mini Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Mounting Type	Free Hanging (In-Line)
Style	Straight

RFU Series

Part	Body Material	Center Contact Plating	Dielectric Material	Body Finish	Voltage Rating	Shield Termination	Contact Termination	Number of Ports	Connector Style	Connector Type	Mounting Type	Fastening Type	Mounting Feature	Center Contact Material	Frequency - Max	Impedance	Housing Color	Conversion Type	Style	Convert From (Adapter End)	Convert To (Adapter End) Gender	Convert To (Adapter End) Type	Center Gender	Adapter Type	Adapter Series	Convert To (Adapter End)	Impedance	Operating Temperature (Min)	Operating Temperature (Max)	Cable Group	Convert To (Adapter End) Count
RF Industries RFU-523	Zinc Die Cast	Silver	Diallyl Phthalate (DAP)	Nickel	500 V	Solder	Solder Cup	1	UHF	Female Socket Jack	Panel Mount	Threaded	Bulkhead Rear Side Nut	Brass	300 MHz	Non-Constant	Silver
RF Industries RFU-537	Brass	Silver	Polyoxymethylene (POM) Acetal	Nickel							Panel Mount	Threaded	Bulkhead	Brass	300 MHz	Non-Constant		Same Series	Straight	Female Socket UHF Jack	Female Socket	UHF Jack	Female	Jack to Jack	UHF to UHF
RF Industries RFU-633		Gold	Polytetrafluoroethylene (PTFE)	Nickel							Free Hanging (In-Line) Right Angle	Threaded						Between Series	Right Angle	Male Pin UHF Mini Plug			Female Male	Plug to Jack	Mini TNC to UHF	Female Socket TNC Jack
RF Industries RFU-628	Brass	Gold	Polytetrafluoroethylene (PTFE)	Nickel							Free Hanging (In-Line)	Threaded		Brass	2.5 GHz			Between Series	Straight	Male Pin TNC Plug	Female Socket	UHF Mini Jack	Female Male	Plug to Jack	Mini TNC to UHF		50 Ohm
RF Industries RFU-600-1X	Brass	Gold	Polytetrafluoroethylene (PTFE)	Nickel	335 V	Crimp	Crimp	1	Mini UHF	Male Pin Plug	Free Hanging (In-Line)	Threaded		Brass	2.5 GHz		Silver										50 Ohm	-65 °C	165 °C	Belden 9258 LMR-240 RG-8X
RF Industries RFU-643	Brass	Gold	Polytetrafluoroethylene (PTFE)	Nickel							Free Hanging (In-Line)	Snap-On Threaded		Phosphor Bronze	2.5 GHz			Same Series	Straight	Male Pin UHF Mini Plug	Female Socket	UHF Mini Jack	Female Male	Plug to Jack	Mini Mini to UHF UHF		50 Ohm	-65 °C	165 °C
RF Industries RFU-532	Brass	Silver	Polyoxymethylene (POM) Acetal	Nickel							Free Hanging (In-Line) Right Angle	Threaded		Brass	300 MHz	Non-Constant		Same Series	Right Angle	Male Pin UHF Plug	Female Socket	UHF Jack	Female Male	Plug to Jack	UHF to UHF
RF Industries RFU-533	Brass	Silver	Polyoxymethylene (POM) Acetal	Nickel							Free Hanging (In-Line)	Threaded		Brass	300 MHz	Non-Constant		Same Series	T-Shape	Male Pin UHF Plug			Female Male	Plug to Jack	Dual UHF to UHF	UHF Jack Female Socket					2 count
RF Industries RFU-623	Brass	Gold	Polytetrafluoroethylene (PTFE)	Nickel							Free Hanging (In-Line)	Threaded		Brass	2.5 GHz			Between Series	Straight	Male Pin UHF Mini Plug			Female Male	Plug to Jack	Mini TNC to UHF	Female Socket TNC Jack	50 Ohm
RF Industries RFU-625-03		Silver	Polytetrafluoroethylene (PTFE)	Nickel							Free Hanging (In-Line)	Threaded						Between Series	Straight	Male Pin N Plug	Female Socket	UHF Mini Jack	Female Male	Plug to Jack	Mini N to UHF
