RFU-533

Active

RF Industries

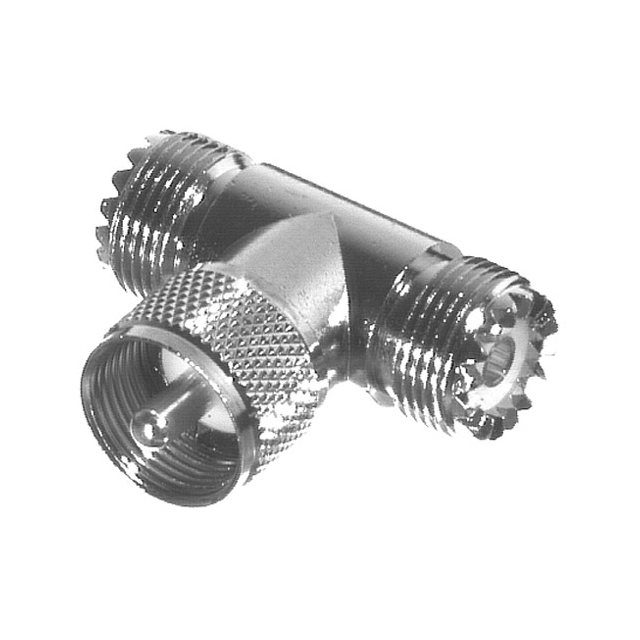

T SHAPE; UHF; 2 FEMALE-1 MALE

Deep-Dive with AI

Search across all available documentation for this part.

RFU-533

Active

RF Industries

T SHAPE; UHF; 2 FEMALE-1 MALE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RFU-533

Adapter Series	UHF to UHF, Dual
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Silver
Conversion Type	Same Series
Convert From (Adapter End)	UHF Plug, Male Pin
Convert To (Adapter End)	Female Socket (2), UHF Jack
Dielectric Material	Polyoxymethylene (POM) Acetal
Frequency - Max [Max]	300 MHz
Impedance	Non-Constant
Mounting Type	Free Hanging (In-Line)
Style	T-Shape

RFU Series

Part	Center Contact Plating	Center Contact Material	Shield Termination	Mounting Feature	Housing Color	Contact Termination	Connector Type	Frequency - Max [Max]	Number of Ports	Connector Style	Body Material	Dielectric Material	Impedance	Body Finish	Voltage Rating	Conversion Type	Adapter Series	Style	Convert To (Adapter End)	Center Gender	Adapter Type	Convert From (Adapter End)	Mounting Type	Impedance	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]
RF Industries RFU-523	Silver	Brass	Solder	Bulkhead - Rear Side Nut	Silver	Solder Cup	Female Socket Jack	300 MHz	1	UHF	Zinc Die Cast	Diallyl Phthalate (DAP)	Non-Constant	Nickel	500 V
RF Industries RFU-537	Silver	Brass		Bulkhead				300 MHz			Brass	Polyoxymethylene (POM) Acetal	Non-Constant	Nickel		Same Series	UHF to UHF	Straight	Female Socket UHF Jack	Female to Female	Jack to Jack
RF Industries RFU-633	Gold											Polytetrafluoroethylene (PTFE)		Nickel		Between Series	TNC to UHF Mini	Right Angle	Female Socket TNC Jack		Plug to Jack	UHF Mini Plug Male Pin	Free Hanging (In-Line) Right Angle
RF Industries RFU-628	Gold	Brass						2.5 GHz			Brass	Polytetrafluoroethylene (PTFE)		Nickel		Between Series	TNC to UHF Mini	Straight	Female Socket UHF Mini Jack		Plug to Jack		Free Hanging (In-Line)	50 Ohms
RF Industries RFU-643	Gold	Phosphor Bronze						2.5 GHz			Brass	Polytetrafluoroethylene (PTFE)		Nickel		Same Series	Mini Mini to UHF UHF	Straight	Female Socket UHF Mini Jack		Plug to Jack	UHF Mini Plug Male Pin	Free Hanging (In-Line)	50 Ohms	Snap-On Threaded	-65 ░C	165 °C
RF Industries RFU-532	Silver	Brass						300 MHz			Brass	Polyoxymethylene (POM) Acetal	Non-Constant	Nickel		Same Series	UHF to UHF	Right Angle	Female Socket UHF Jack		Plug to Jack	UHF Plug Male Pin	Free Hanging (In-Line) Right Angle
RF Industries RFU-533	Silver	Brass						300 MHz			Brass	Polyoxymethylene (POM) Acetal	Non-Constant	Nickel		Same Series	UHF to UHF Dual	T-Shape	Female Socket (2) UHF Jack		Plug to Jack	UHF Plug Male Pin	Free Hanging (In-Line)
RF Industries RFU-623	Gold	Brass						2.5 GHz			Brass	Polytetrafluoroethylene (PTFE)		Nickel		Between Series	TNC to UHF Mini	Straight	Female Socket TNC Jack		Plug to Jack	UHF Mini Plug Male Pin	Free Hanging (In-Line)	50 Ohms
RF Industries RFU-625-03	Silver											Polytetrafluoroethylene (PTFE)		Nickel		Between Series	N to UHF Mini	Straight	Female Socket UHF Mini Jack		Plug to Jack	N Plug Male Pin	Free Hanging (In-Line)
RF Industries RFU-500-D	Silver		Solder		Silver	Solder	Male Pin Plug	300 MHz	1	UHF		Diallyl Phthalate (DAP)	Non-Constant	Silver	500 V								Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RFU Series

Adapter Coaxial Connector UHF Plug, Male Pin To UHF Jack, Female Socket (2) Non-Constant
