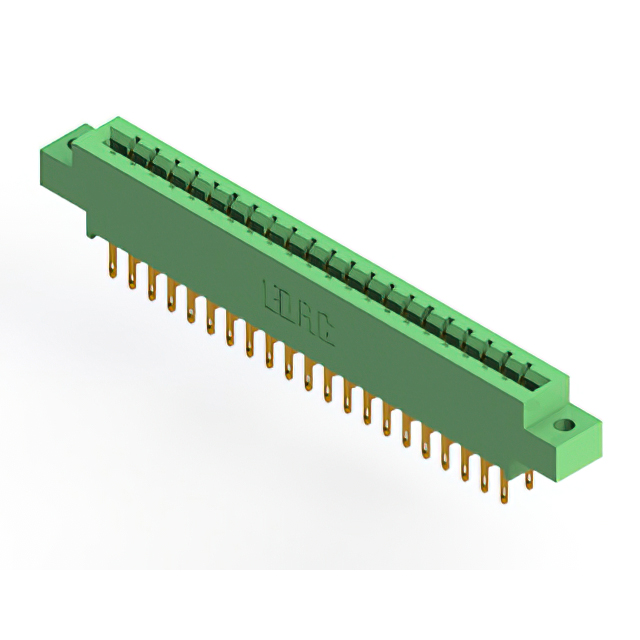

833-042-500-802

Active

EDAC Inc.

CONN EDGE DUAL FMALE 42POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

833-042-500-802

Active

EDAC Inc.

CONN EDGE DUAL FMALE 42POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	833-042-500-802

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	42
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

833-042 Series

...

Part	Mounting Type	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish	Contact Material	Number of Rows	Contact Type	Termination Rows	Card Type	Number of Positions/Bay/Row [custom]	Gender	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Read Out	Flange Feature	Flange Feature
EDAC Inc. 833-042-558-104	Through Hole Right Angle	0.156 in	3.96 mm	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Gold	Copper Alloy	1	Cantilever	1	Non Specified - Single Edge	42	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	42	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Single
EDAC Inc. 833-042-521-103	Through Hole	0.156 in	3.96 mm	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Gold	Copper Alloy	1	Cantilever	1	Non Specified - Single Edge	42	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	42	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Single
EDAC Inc. 833-042-559-802	Through Hole Right Angle	0.156 in	3.96 mm				Gold	Copper Alloy	2	Cantilever	2	Non Specified - Dual Edge		Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	42	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Dual	3.25 mm	0.128 in
EDAC Inc. 833-042-521-212	Through Hole	0.156 in	3.96 mm		Side Mount Opening Unthreaded		Gold	Copper Alloy	2	Cantilever	2	Non Specified - Dual Edge		Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	42	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Dual	3.25 mm	0.128 in
EDAC Inc. 833-042-523-202	Through Hole	0.156 in	3.96 mm	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Gold	Copper Alloy	2	Cantilever	2	Non Specified - Dual Edge		Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	42	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Dual
EDAC Inc. 833-042-524-212	Through Hole	0.156 in	3.96 mm		Side Mount Opening Unthreaded		Gold	Copper Alloy	2	Cantilever	2	Non Specified - Dual Edge		Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	42	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Dual	3.25 mm	0.128 in
EDAC Inc. 833-042-523-207	Through Hole	0.156 in	3.96 mm		Flush Mount M3 Threaded Insert Top Opening		Gold	Copper Alloy	2	Cantilever	2	Non Specified - Dual Edge		Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	42	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Dual
EDAC Inc. 833-042-542-201	Through Hole	0.156 in	3.96 mm				Gold	Copper Alloy	2	Cantilever	2	Non Specified - Dual Edge		Female	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	42	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Dual
EDAC Inc. 833-042-541-103	Through Hole	0.156 in	3.96 mm	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Gold	Copper Alloy	1	Cantilever	1	Non Specified - Single Edge	42	Female	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	42	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Single
EDAC Inc. 833-042-500-802	Through Hole	0.156 in	3.96 mm				Gold	Copper Alloy	2	Cantilever	2	Non Specified - Dual Edge		Female	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	125 °C	-40 °C	42	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Dual	3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 55.28
Newark	Each	1	$ 63.82
		100	$ 43.50
		250	$ 36.95
		500	$ 33.68
		1000	$ 28.75

Description

General part information

833-042 Series

42 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
