833-042-523-202
ActiveEDAC Inc.

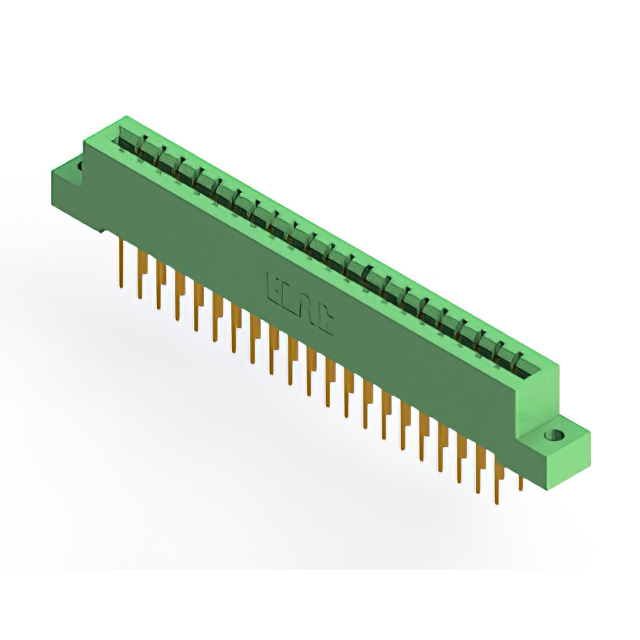

CONN EDGE DUAL FMALE 42POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 833-042-523-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 42 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
833-042 Series
...
| Part | Mounting Type | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish | Contact Material | Number of Rows | Contact Type | Termination Rows | Card Type | Number of Positions/Bay/Row [custom] | Gender | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Read Out | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole Right Angle | 0.156 in | 3.96 mm | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Gold | Copper Alloy | 1 | Cantilever | 1 | Non Specified - Single Edge | 42 | Female | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 125 °C | -40 °C | 42 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Single | ||
EDAC Inc. | Through Hole | 0.156 in | 3.96 mm | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Gold | Copper Alloy | 1 | Cantilever | 1 | Non Specified - Single Edge | 42 | Female | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 125 °C | -40 °C | 42 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Single | ||
EDAC Inc. | Through Hole Right Angle | 0.156 in | 3.96 mm | Gold | Copper Alloy | 2 | Cantilever | 2 | Non Specified - Dual Edge | Female | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 125 °C | -40 °C | 42 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Dual | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Through Hole | 0.156 in | 3.96 mm | Side Mount Opening Unthreaded | Gold | Copper Alloy | 2 | Cantilever | 2 | Non Specified - Dual Edge | Female | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 125 °C | -40 °C | 42 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Dual | 3.25 mm | 0.128 in | |||
EDAC Inc. | Through Hole | 0.156 in | 3.96 mm | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Gold | Copper Alloy | 2 | Cantilever | 2 | Non Specified - Dual Edge | Female | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 125 °C | -40 °C | 42 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Dual | |||
EDAC Inc. | Through Hole | 0.156 in | 3.96 mm | Side Mount Opening Unthreaded | Gold | Copper Alloy | 2 | Cantilever | 2 | Non Specified - Dual Edge | Female | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 125 °C | -40 °C | 42 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Dual | 3.25 mm | 0.128 in | |||
EDAC Inc. | Through Hole | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | Gold | Copper Alloy | 2 | Cantilever | 2 | Non Specified - Dual Edge | Female | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 125 °C | -40 °C | 42 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Dual | |||||
EDAC Inc. | Through Hole | 0.156 in | 3.96 mm | Gold | Copper Alloy | 2 | Cantilever | 2 | Non Specified - Dual Edge | Female | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 125 °C | -40 °C | 42 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Dual | ||||||
EDAC Inc. | Through Hole | 0.156 in | 3.96 mm | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Gold | Copper Alloy | 1 | Cantilever | 1 | Non Specified - Single Edge | 42 | Female | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 125 °C | -40 °C | 42 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Single | ||
EDAC Inc. | Through Hole | 0.156 in | 3.96 mm | Gold | Copper Alloy | 2 | Cantilever | 2 | Non Specified - Dual Edge | Female | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 125 °C | -40 °C | 42 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Dual | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 36.56 | |
Description
General part information
833-042 Series
42 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
