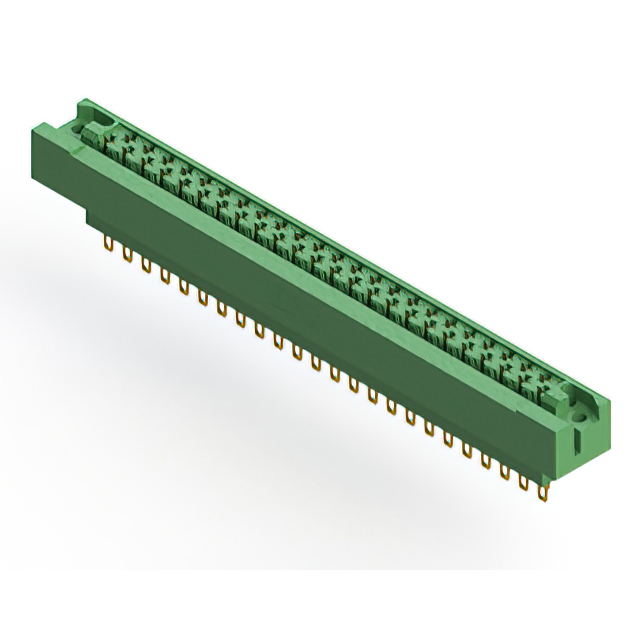

Specification	438-047-500-112

Card Thickness	0.062 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Flange Feature	Top Mount Opening, Unthreaded
Flange Feature Diameter	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate, DAP
Mounting Type	Panel Mount, Through Hole
Number of Positions	47
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-65 °C
Pitch	5.08 mm
Termination	Solder Eyelet(s)
Termination Rows	2 rows

438 Series

Part	Material - Insulation	Termination Rows	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Card Thickness	Contact Material	Pitch	Contact Finish Thickness	Termination	Number of Rows	Contact Finish	Flange Feature Diameter	Flange Feature	Mounting Type	Card Type	Gender	Color	Material Flammability Rating	Note
EDAC Inc. 438-041-540-122	DAP Diallyl Phthalate	2 rows	41	125 °C	-65 °C	0.093 in	Copper Alloy	5.08 mm	10 Ąin	Wire Wrap	2	Gold	0.128 in	Top Mount Opening Unthreaded	Panel Mount Through Hole	Dual Edge Non Specified	Female	Green
EDAC Inc. 438-047-540-122			47	125 °C	-65 °C	0.093 in	Copper Alloy	5.08 mm	10 Ąin	Wire Wrap	2	Gold	0.128 in	Top Mount Opening Unthreaded	Panel Mount Through Hole	Dual Edge Non Specified	Female	Green
EDAC Inc. 438-047-500-112	DAP Diallyl Phthalate	2 rows	47	125 °C	-65 °C	0.062 in	Copper Alloy	5.08 mm	10 Ąin	Solder Eyelet(s)	2	Gold	0.128 in	Top Mount Opening Unthreaded	Panel Mount Through Hole	Dual Edge Non Specified	Female	Green
EDAC Inc. 438-035-542-112			35	125 °C	-65 °C	0.062 in	Copper Alloy	5.08 mm	10 Ąin	Wire Wrap	2	Gold	0.128 in	Top Mount Opening Unthreaded	Panel Mount Through Hole	Dual Edge Non Specified	Female	Green
EDAC Inc. 438-029-541-112			29	125 °C	-65 °C	0.062 in	Copper Alloy	5.08 mm	10 Ąin	Wire Wrap	2	Gold	0.128 in	Top Mount Opening Unthreaded	Panel Mount Through Hole	Dual Edge Non Specified	Female	Green
EDAC Inc. 438-035-520-122			35	125 °C	-65 °C	0.093 in	Copper Alloy	5.08 mm	10 Ąin	Solder	2	Gold	0.128 in	Top Mount Opening Unthreaded	Panel Mount Through Hole	Dual Edge Non Specified	Female	Green
EDAC Inc. 438-029-540-112			29	125 °C	-65 °C	0.062 in	Copper Alloy	5.08 mm	10 Ąin	Wire Wrap	2	Gold	0.128 in	Top Mount Opening Unthreaded	Panel Mount Through Hole	Dual Edge Non Specified	Female	Green
EDAC Inc. 438-029-500-122	DAP Diallyl Phthalate	2 rows	29	125 °C	-65 °C	0.093 in	Copper Alloy	5.08 mm	10 Ąin	Solder Eyelet(s)	2	Gold	0.128 in	Top Mount Opening Unthreaded	Panel Mount Through Hole	Dual Edge Non Specified	Female	Green
EDAC Inc. 438-017-000-112	Polyphenylene Sulfide PPS		17	125 °C	-65 °C	0.062 in		5.08 mm					0.128 in	Top Mount Opening Unthreaded		Dual Edge Non Specified		Green	UL94 V-0	Contacts Not Included
EDAC Inc. 438-017-540-122	DAP Diallyl Phthalate	2 rows	17	125 °C	-65 °C	0.093 in	Copper Alloy	5.08 mm	10 Ąin	Wire Wrap	2	Gold	0.128 in	Top Mount Opening Unthreaded	Panel Mount Through Hole	Dual Edge Non Specified	Female	Green
