438-017-000-112
ActiveEDAC Inc.

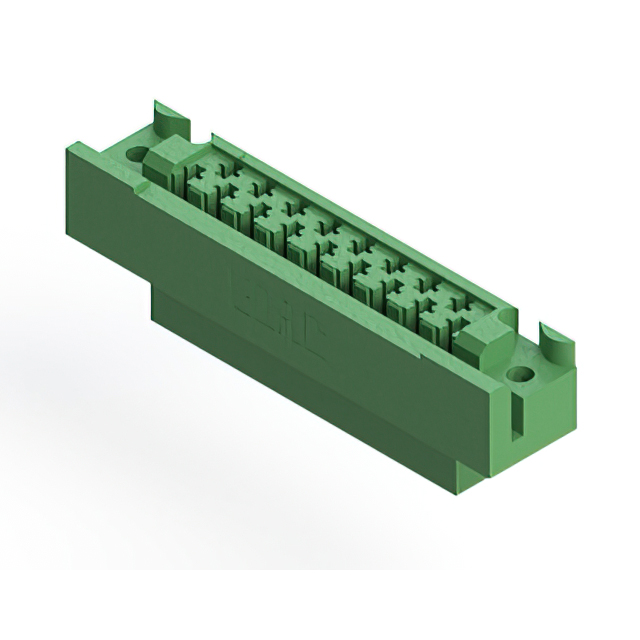

CONN CARDEDGE HSG 17POS .200 GRN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
438-017-000-112
ActiveEDAC Inc.
CONN CARDEDGE HSG 17POS .200 GRN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 438-017-000-112 |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Material Flammability Rating | UL94 V-0 |
| Note | Contacts Not Included |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
438-017 Series
| Part | Contact Finish Thickness | Contact Finish Thickness | Card Type | Termination Rows | Pitch [x] | Pitch [x] | Termination | Flange Feature | Flange Feature | Number of Rows | Color | Operating Temperature [Max] | Operating Temperature [Min] | Material - Insulation | Contact Material | Contact Finish | Gender | Card Thickness | Card Thickness | Mounting Type | Material Flammability Rating | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | 0.2 in | 5.08 mm | Wire Wrap | 3.25 mm | 0.128 in | 2 | Green | 125 °C | -65 ░C | Diallyl Phthalate (DAP) | Copper Alloy | Gold | Female | 0.062 in | 1.57 mm | Panel Mount Through Hole | ||
EDAC Inc. | Non Specified - Dual Edge | 0.2 in | 5.08 mm | 3.25 mm | 0.128 in | Green | 125 °C | -65 ░C | Polyphenylene Sulfide (PPS) | 0.062 in | 1.57 mm | UL94 V-0 | Contacts Not Included | |||||||||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | 0.2 in | 5.08 mm | Wire Wrap | 3.25 mm | 0.128 in | 2 | Green | 125 °C | -65 ░C | Diallyl Phthalate (DAP) | Copper Alloy | Gold | Female | 0.093 in | 2.36 mm | Panel Mount Through Hole | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | 0.2 in | 5.08 mm | Solder | 3.25 mm | 0.128 in | 2 | Green | 125 °C | -65 ░C | Diallyl Phthalate (DAP) | Copper Alloy | Gold | Female | 0.062 in | 1.57 mm | Panel Mount Through Hole | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | 0.2 in | 5.08 mm | Wire Wrap | 3.25 mm | 0.128 in | 2 | Green | 125 °C | -65 ░C | Diallyl Phthalate (DAP) | Copper Alloy | Gold | Female | 0.062 in | 1.57 mm | Panel Mount Through Hole | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | 0.2 in | 5.08 mm | Wire Wrap | 3.25 mm | 0.128 in | 2 | Green | 125 °C | -65 ░C | Diallyl Phthalate (DAP) | Copper Alloy | Gold | Female | 0.062 in | 1.57 mm | Panel Mount Through Hole | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | 0.2 in | 5.08 mm | Wire Wrap | 3.25 mm | 0.128 in | 2 | Green | 125 °C | -65 ░C | Diallyl Phthalate (DAP) | Copper Alloy | Gold | Female | 0.093 in | 2.36 mm | Panel Mount Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.60 | |
| 10 | $ 5.94 | |||
| 25 | $ 5.59 | |||
| 50 | $ 5.45 | |||
| 100 | $ 5.31 | |||
| 250 | $ 5.05 | |||
Description
General part information
438-017 Series
17 Position Card Edge Connector Housing Green 0.200" (5.08mm)
