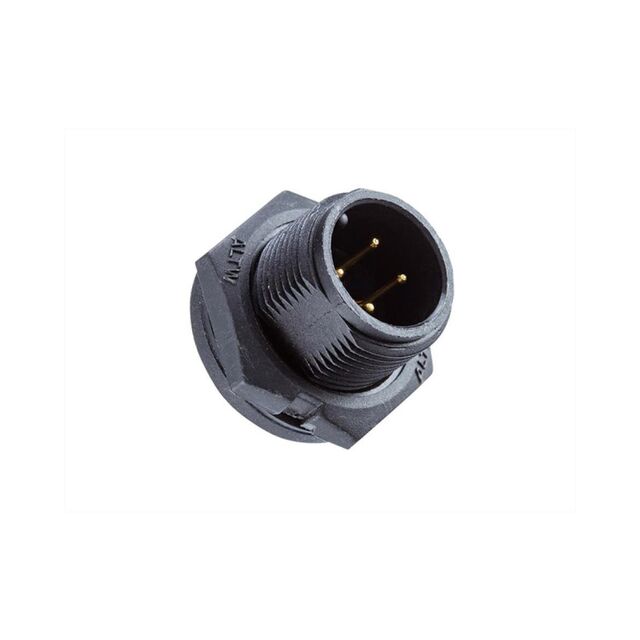

BD-05PMMP-SC7001

Active

Amphenol LTW

CERES, STANDARD SIZE, 5A, 05 PINS, RECEPTACLE, CIRCULAR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, STANDARD SIZE, 5A, 05 PINS, RECEPTACLE, CIRCULAR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	BD-05PMMP-SC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Material	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Connector Type	Voltage Rating	Primary Material	Mounting Feature	Current Rating (Amps)	Shielding	Termination	Color	Contact Finish - Mating	Insert Material	Ingress Protection	Shell Material
Amphenol LTW BD-05PMMP-LC7001	Copper Alloy	Keyed	-40 °C	105 ░C	B	Male Pins Receptacle	250 VDC	Plastic	Bulkhead - Front Side Nut	5 A	Unshielded	Solder	Black	Gold	Thermoplastic	IP67 - Dust Tight Waterproof
Amphenol LTW BD-05PMMP-SC7001	Copper Alloy	Keyed	-40 °C	105 ░C	B	Male Pins Receptacle	250 VDC	Plastic	Bulkhead - Front Side Nut	5 A	Unshielded	Solder	Black	Gold	Polyamide (PA) Nylon Glass Filled	IP67 - Dust Tight Waterproof	Glass Filled Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Solder
