Description

General part information

LM2853 Series

The LM2853 synchronous buck regulator is a 550 kHz step-down switching voltage regulator capable of driving up to a 3A load with excellent line and load regulation. The LM2853 accepts an input voltage between 3 V and 5.5 V and delivers a customizable output voltage that is factory programmable from 0.8 V to 3.3 V in 100 mV increments. Internal type-three compensation enables a low component count solution and greatly simplifies external component selection. The HTSSOP-14 (PWP) package enhances the thermal performance of the LM2853.

Technical Specifications

Parameters and characteristics for this part

Specification	LM2853MHX-1.0/NOPB

Current - Output	3 A
Frequency - Switching	550 kHz
Function	Step-Down
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Positive
Output Type	Fixed
Package Length	0.173 in
Package Name	14-HTSSOP, 14-PowerTSSOP
Package Width	4.4 mm
Synchronous Rectifier	Yes
Topology	Buck
Voltage - Input (Max)	5.5 V
Voltage - Input (Min)	3 V
Voltage - Output (Min/Fixed)	1 V

LM2853 Series

3A 550 kHz Synchronous Buck Regulator

Part	Total Output Count	Output Type	Non-Isolated Output Count	Board Type	Supplied Contents	Utilized IC / Part	Current - Output	Contents	Main Purpose	Frequency - Switching	Voltage - Output	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Regulator Topology	Number of Outputs	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Input (Max)	Package Length	Package Name	Package Width	Function	Synchronous Rectifier	Mounting Type	Voltage - Input (Min)	Topology	Voltage - Output (Min/Fixed)	Output Configuration

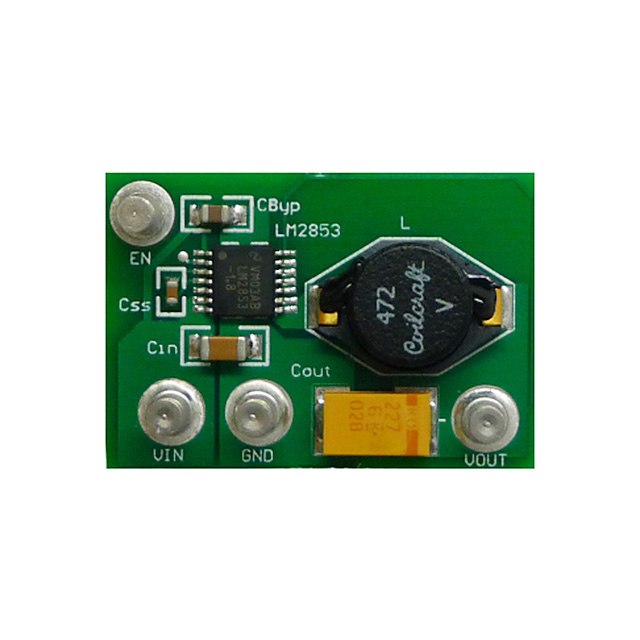

Texas Instruments LM2853-1.8EVAL/NOPB	1	Non-Isolated	1 count	Fully Populated	Board(s)	LM2853	3 A	Board	DC/DC Step Down	550 kHz	1.8 V	3 V	5.5 V	Buck
Texas Instruments LM2853MH-1.8		Fixed					3 A			550 kHz					1	125 °C	-40 °C	5.5 V	0.173 in	14-HTSSOP 14-PowerTSSOP	4.4 mm	Step-Down	Yes	Surface Mount	3 V	Buck	1.8 V	Positive
Texas Instruments LM2853MH-1.5/NOPB		Fixed					3 A			550 kHz					1	125 °C	-40 °C	5.5 V	0.173 in	14-HTSSOP 14-PowerTSSOP	4.4 mm	Step-Down	Yes	Surface Mount	3 V	Buck	1.5 V	Positive
Texas Instruments LM2853MHX-1.0/NOPB		Fixed					3 A			550 kHz					1	125 °C	-40 °C	5.5 V	0.173 in	14-HTSSOP 14-PowerTSSOP	4.4 mm	Step-Down	Yes	Surface Mount	3 V	Buck	1 V	Positive
Texas Instruments LM2853MH-2.5		Fixed					3 A			550 kHz					1	125 °C	-40 °C	5.5 V	0.173 in	14-HTSSOP 14-PowerTSSOP	4.4 mm	Step-Down	Yes	Surface Mount	3 V	Buck	2.5 V	Positive
Texas Instruments LM2853MHX-1.2		Fixed					3 A			550 kHz					1	125 °C	-40 °C	5.5 V	0.173 in	14-HTSSOP 14-PowerTSSOP	4.4 mm	Step-Down	Yes	Surface Mount	3 V	Buck	1.2 V	Positive
Texas Instruments LM2853MHX-1.5		Fixed					3 A			550 kHz					1	125 °C	-40 °C	5.5 V	0.173 in	14-HTSSOP 14-PowerTSSOP	4.4 mm	Step-Down	Yes	Surface Mount	3 V	Buck	1.5 V	Positive
Texas Instruments LM2853MHX-2.5/NOPB		Fixed					3 A			550 kHz					1	125 °C	-40 °C	5.5 V	0.173 in	14-HTSSOP 14-PowerTSSOP	4.4 mm	Step-Down	Yes	Surface Mount	3 V	Buck	2.5 V	Positive
Texas Instruments LM2853MH-3.3/NOPB		Fixed					3 A			550 kHz					1	125 °C	-40 °C	5.5 V	0.173 in	14-HTSSOP 14-PowerTSSOP	4.4 mm	Step-Down	Yes	Surface Mount	3 V	Buck	3.3 V	Positive
Texas Instruments LM2853MHX-3.3/NOPB		Fixed					3 A			550 kHz					1	125 °C	-40 °C	5.5 V	0.173 in	14-HTSSOP 14-PowerTSSOP	4.4 mm	Step-Down	Yes	Surface Mount	3 V	Buck	3.3 V	Positive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

AN-1513 LM2853 Evaluation Board (Rev. A)

LM2853 3-A 550-kHz Synchronous Buck Regulator datasheet (Rev. A)

Power Management Guide 2018 (Rev. R)

AN-1197 Selecting Inductors for Buck Converters (Rev. B)

AN-1973 Benefits and Challenges of High-Frequency Regulators (Rev. A)
