BQ25882YFFR
ActiveI2C 2 CELL 2A BOOST BATTERY CHARGER FOR USB INPUT IN A WCSP PACKAGE WITH POWER PATH
Deep-Dive with AI
Search across all available documentation for this part.
BQ25882YFFR
ActiveI2C 2 CELL 2A BOOST BATTERY CHARGER FOR USB INPUT IN A WCSP PACKAGE WITH POWER PATH
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ25882YFFR | BQ25882 Series |
|---|---|---|
| Battery Chemistry | Multi-Chemistry | Multi-Chemistry |
| Fault Protection | Over Temperature, Short Circuit, Over Current | Over Temperature, Short Circuit, Over Current |
| Function | Power Management | Power Management, Battery Charger |
| Interface | I2C | I2C |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Cells | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |

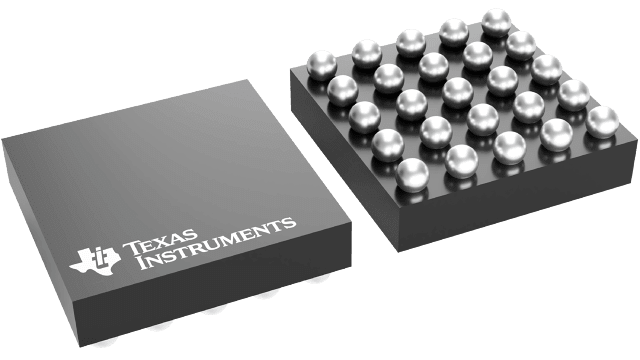

| Package / Case | DSBGA, 25-UFBGA | DSBGA, 25-UFBGA |
| Primary Attributes | - | Li-Ion / Li-Pol (2 Cells) |
| Secondary Attributes | - | I2C Interface(s) |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 25-DSBGA | 25-DSBGA |
| Type | - | Power Management |
| Utilized IC / Part | - | BQ25882 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.48 | |
| Digi-Reel® | 1 | $ 5.48 | ||
| Tape & Reel (TR) | 3000 | $ 2.75 | ||
| Texas Instruments | LARGE T&R | 1 | $ 3.77 | |
| 100 | $ 3.07 | |||
| 250 | $ 2.42 | |||
| 1000 | $ 2.05 | |||
BQ25882 Series
I2C 2 cell 2A Boost battery charger for USB input in a WCSP package with Power Path
| Part | Battery Chemistry | Function | Supplier Device Package | Interface | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Fault Protection | Number of Cells | Package / Case | Secondary Attributes | Utilized IC / Part | Type | Supplied Contents | Primary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ25882YFFT | Multi-Chemistry | Power Management | 25-DSBGA | I2C | 85 °C | -40 °C | Surface Mount | Over Current, Over Temperature, Short Circuit | 2 | 25-UFBGA, DSBGA | |||||
Texas Instruments BQ25882YFFR | Multi-Chemistry | Power Management | 25-DSBGA | I2C | 85 °C | -40 °C | Surface Mount | Over Current, Over Temperature, Short Circuit | 2 | 25-UFBGA, DSBGA | |||||
Texas Instruments BQ25882EVM-001 | Battery Charger | I2C Interface(s) | BQ25882 | Power Management | Board(s) | Li-Ion / Li-Pol (2 Cells) |
Description
General part information
BQ25882 Series
The BQ25882 is a highly-integrated 2-A switch-mode battery charge management and system power path management device for dual-cell Li-Ion and Li-polymer batteries. The I2C Serial interface with charging and system settings makes the device a truly flexible solution.
The BQ25882 is a highly-integrated 2-A switch-mode battery charge management and system power path management device for dual-cell Li-Ion and Li-polymer batteries. The I2C Serial interface with charging and system settings makes the device a truly flexible solution.
