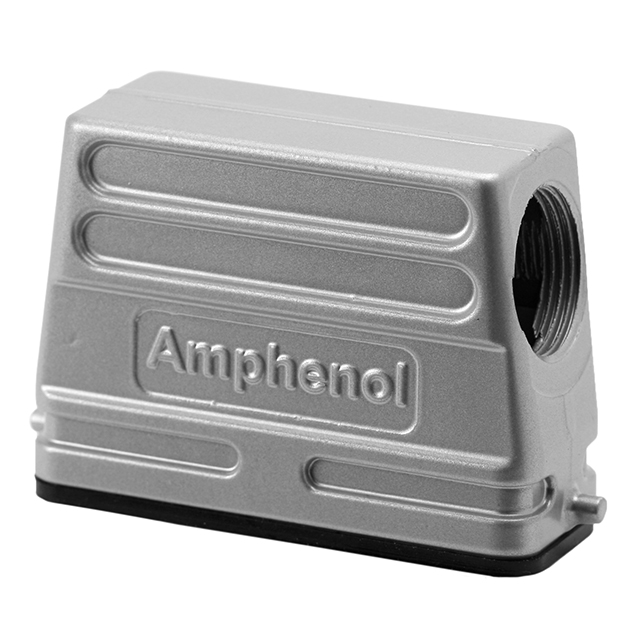

C14621R0255002

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZA16 M25

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZA16 M25

Technical Specifications

Parameters and characteristics for this part

Specification	C14621R0255002

Connector Type	Hood
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	A16
Size / Dimension [x]	3.11 in
Size / Dimension [x]	79 mm
Size / Dimension [y]	29.5 mm
Size / Dimension [y]	1.161 "
Size / Dimension [z]	70.5 mm
Size / Dimension [z]	2.776 in
Style	Side Entry
Thread Size	M25

Part	Size	Thread Size	Connector Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Ingress Protection	Style	Features
Amphenol Tuchel Industrial C14621R0258042	A16	M25	Hood - Coupling	79 mm	29.5 mm	2.559 "	3.11 in	65 mm	1.161 "	Locking Clip (1) on Hood Top	100 °C	-40 °C	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	Bottom Entry	Cable to Cable
Amphenol Tuchel Industrial C14621R0256502	A16	M20	Hood	79 mm	29.5 mm	2.776 in	3.11 in	70.5 mm	1.161 "	Locking Clip (1) on Base Bottom	100 °C	-40 °C	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	Top Entry
Amphenol Tuchel Industrial C14621R0255002	A16	M25	Hood	79 mm	29.5 mm	2.776 in	3.11 in	70.5 mm	1.161 "	Locking Clip (1) on Base Bottom	100 °C	-40 °C	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	Side Entry

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 17.23

General part information

Hood Connector Side Entry M25 A16 IP65 - Dust Tight, Water Resistant
