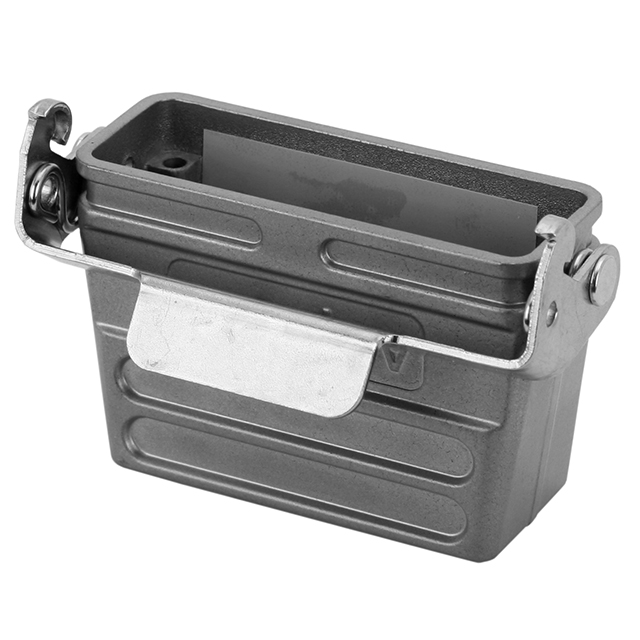

C14621R0258042
ActiveAmphenol Tuchel Industrial
CONN HOOD CPLNG BOTTOM SZA16 M25
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C14621R0258042
ActiveAmphenol Tuchel Industrial
CONN HOOD CPLNG BOTTOM SZA16 M25
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C14621R0258042 |
|---|---|
| Connector Type | Hood - Coupling |
| Features | Cable to Cable |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Hood Top |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Size | A16 |
| Size / Dimension [x] | 79 mm |
| Size / Dimension [x] | 3.11 in |
| Size / Dimension [y] | 29.5 mm |
| Size / Dimension [y] | 1.161 " |
| Size / Dimension [z] | 2.559 " |
| Size / Dimension [z] | 65 mm |
| Style | Bottom Entry |
| Thread Size | M25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 23.69 | |
Description
General part information
C14621R025 Series
Hood - Coupling Connector Bottom Entry M25 A16 IP65 - Dust Tight, Water Resistant
