UF80A02-BWHR-L24

Active

Mechatronics Fan Group

FAN AXIAL 80X38MM BALL WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC Axial Part Numbering Guide Datasheet

UF80A02-BWHR-L24

Active

Mechatronics Fan Group

FAN AXIAL 80X38MM BALL WIRE

Deep-Dive with AI

DocumentsAC Axial Part Numbering Guide Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.30
		10	$ 19.45
		25	$ 18.71
		50	$ 17.48
		100	$ 16.13
		250	$ 15.88
		500	$ 15.76

Description

General part information

UF80A Series

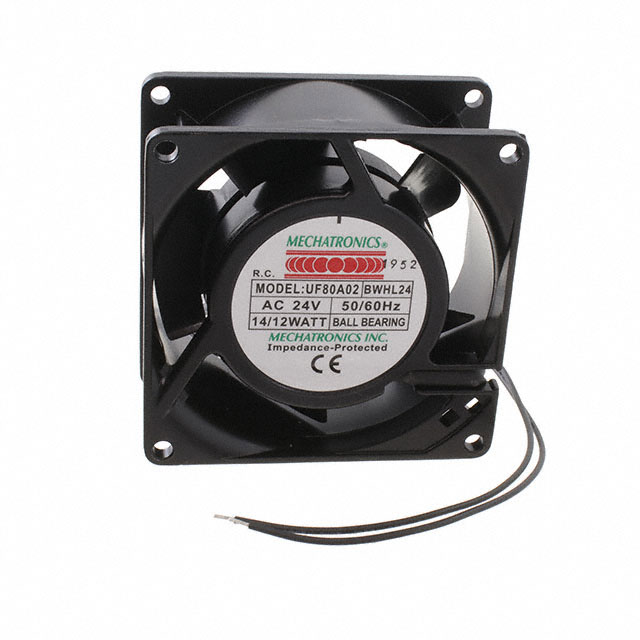

Fan Tubeaxial 24VAC Square - 80mm L x 80mm H Ball 2 Wire Leads

Documents

Technical documentation and resources

AC Axial Part Numbering Guide

Datasheet

Specification	UF80A02-BWHR-L24	UF80A Series

Air Flow	-	25 - 34 CFM
Air Flow	-	0.7 - 0.952 mł/min
Approval Agency	CE	CE, cUL, TUV, UL, CE
Bearing Type	Ball	Ball, Sleeve
Current Rating (Amps)	-	50 - 120 mA
Fan Type	Tubeaxial	Tubeaxial
Features	-	Thermal Overload Protector (TOP)
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT), Metal
Material - Frame	-	Aluminum
Noise	-	32 - 40 dB
Operating Temperature [Max]	70 °C	70 - 90 °C
Operating Temperature [Max]	70 °C	70 - 90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	-	9 - 12 W
RPM	-	2400 - 3250 RPM
Size / Dimension [x]	80 mm	80 mm
Size / Dimension [y]	80 mm	80 mm
Static Pressure	-	0.22 - 0.26 in H2O
Static Pressure	-	54.8 - 64.8 Pa
Termination	2 Wire Leads	2 Terminals, 2 Wire Leads
Voltage - Rated	-	115 - 230 VAC
Weight	-	0.617 lb
Weight	-	279.87 - 280 g
Width [y]	38 mm	38 mm

Part

Width [y]

Size / Dimension [y]

Size / Dimension [x]

Operating Temperature [Max]

Operating Temperature [Min]

Bearing Type

Fan Type

Weight

Voltage - Rated

Power (Watts)

Noise

Current Rating (Amps)

Air Flow

Termination

Material - Frame

Approval Agency

Material - Blade

RPM

Static Pressure

Features

Mechatronics Fan Group

UF80A23-BTLR

38 mm

80 mm

70 °C

-40 °C

Ball

Tubeaxial

0.617 lb

279.87 g

230 VAC

12 W

32 dB

50 mA

25 CFM

0.7 mł/min

2 Terminals

Aluminum

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

2400 RPM

Mechatronics Fan Group

UF80AM12-BWHR-F

38 mm

80 mm

90 °C

-40 °C

Ball

Tubeaxial

115 VAC

11 W

40 dB(A)

34 CFM

0.952 m³/min

2 Wire Leads

Aluminum

Metal

3250 RPM

0.26 in H2O

64.8 Pa

Mechatronics Fan Group

UF80AM23-BTHR-F

38 mm

80 mm

90 °C

-40 °C

Ball

Tubeaxial

230 VAC

11 W

40 dB(A)

70 mA

34 CFM

0.952 m³/min

2 Terminals

Aluminum

Metal

3250 RPM

0.26 in H2O

64.8 Pa

Mechatronics Fan Group

UF80A12-BWLR

38 mm

80 mm

70 °C

-40 °C

Ball

Tubeaxial

0.617 lb

279.87 g

115 VAC

9 W

32 dB

100 mA

25 CFM

0.7 mł/min

2 Wire Leads

Aluminum

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

2400 RPM

Mechatronics Fan Group

UF80A23-BWHR

38 mm

80 mm

70 °C

-40 °C

Ball

Tubeaxial

0.617 lb

279.87 g

230 VAC

12 W

36 dB

60 mA

30 CFM

0.84 mł/min

2 Wire Leads

Aluminum

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

3000 RPM

0.22 in H2O

54.8 Pa

Mechatronics Fan Group

UF80AM12-BTHR-F

38 mm

80 mm

90 °C

-40 °C

Ball

Tubeaxial

115 VAC

11 W

40 dB(A)

34 CFM

0.952 m³/min

2 Terminals

Aluminum

Metal

3250 RPM

0.26 in H2O

64.8 Pa

Mechatronics Fan Group

UF80A12-BWHR

38 mm

80 mm

70 °C

-40 °C

Ball

Tubeaxial

0.617 lb

279.87 g

115 VAC

9 W

36 dB

120 mA

30 CFM

0.84 mł/min

2 Wire Leads

Aluminum

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

3000 RPM

0.22 in H2O

54.8 Pa

Mechatronics Fan Group

UF80A12-BTLR

38 mm

80 mm

70 °C

-40 °C

Ball

Tubeaxial

0.617 lb

279.87 g

115 VAC

9 W

32 dB

100 mA

25 CFM

0.7 mł/min

2 Terminals

Aluminum

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

2400 RPM

Mechatronics Fan Group

UF80A23-SWHR

38 mm

80 mm

70 °C

-40 °C

Sleeve

Tubeaxial

0.617 lb

279.87 g

230 VAC

12 W

36 dB

60 mA

30 CFM

0.84 mł/min

2 Wire Leads

Aluminum

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

3000 RPM

0.22 in H2O

54.8 Pa

Mechatronics Fan Group

UF80A12-BTHR

38 mm

80 mm

70 °C

-40 °C

Ball

Tubeaxial

0.617 lb

279.87 g

115 VAC

9 W

36 dB

120 mA

30 CFM

0.84 mł/min

2 Terminals

Aluminum

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

3000 RPM

0.22 in H2O

54.8 Pa

Part	Width [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Bearing Type	Fan Type	Weight	Weight	Voltage - Rated	Power (Watts)	Noise	Current Rating (Amps)	Air Flow	Air Flow	Termination	Material - Frame	Approval Agency	Material - Blade	RPM	Static Pressure	Static Pressure
Mechatronics Fan Group UF80A23-BTLR	38 mm	80 mm	80 mm	70 °C	70 °C	-40 °C	-40 °C	Ball	Tubeaxial	0.617 lb	279.87 g	230 VAC	12 W	32 dB	50 mA	25 CFM	0.7 mł/min	2 Terminals	Aluminum	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	2400 RPM
Mechatronics Fan Group UF80AM12-BWHR-F	38 mm	80 mm	80 mm	90 °C	90 °C	-40 °C	-40 °C	Ball	Tubeaxial			115 VAC	11 W	40 dB(A)		34 CFM	0.952 m³/min	2 Wire Leads	Aluminum		Metal	3250 RPM	0.26 in H2O	64.8 Pa
Mechatronics Fan Group UF80AM23-BTHR-F	38 mm	80 mm	80 mm	90 °C	90 °C	-40 °C	-40 °C	Ball	Tubeaxial			230 VAC	11 W	40 dB(A)	70 mA	34 CFM	0.952 m³/min	2 Terminals	Aluminum		Metal	3250 RPM	0.26 in H2O	64.8 Pa
Mechatronics Fan Group UF80A12-BWLR	38 mm	80 mm	80 mm	70 °C	70 °C	-40 °C	-40 °C	Ball	Tubeaxial	0.617 lb	279.87 g	115 VAC	9 W	32 dB	100 mA	25 CFM	0.7 mł/min	2 Wire Leads	Aluminum	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	2400 RPM
Mechatronics Fan Group UF80A23-BWHR	38 mm	80 mm	80 mm	70 °C	70 °C	-40 °C	-40 °C	Ball	Tubeaxial	0.617 lb	279.87 g	230 VAC	12 W	36 dB	60 mA	30 CFM	0.84 mł/min	2 Wire Leads	Aluminum	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	3000 RPM	0.22 in H2O	54.8 Pa
Mechatronics Fan Group UF80AM12-BTHR-F	38 mm	80 mm	80 mm	90 °C	90 °C	-40 °C	-40 °C	Ball	Tubeaxial			115 VAC	11 W	40 dB(A)		34 CFM	0.952 m³/min	2 Terminals	Aluminum		Metal	3250 RPM	0.26 in H2O	64.8 Pa
Mechatronics Fan Group UF80A12-BWHR	38 mm	80 mm	80 mm	70 °C	70 °C	-40 °C	-40 °C	Ball	Tubeaxial	0.617 lb	279.87 g	115 VAC	9 W	36 dB	120 mA	30 CFM	0.84 mł/min	2 Wire Leads	Aluminum	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	3000 RPM	0.22 in H2O	54.8 Pa
Mechatronics Fan Group UF80A12-BTLR	38 mm	80 mm	80 mm	70 °C	70 °C	-40 °C	-40 °C	Ball	Tubeaxial	0.617 lb	279.87 g	115 VAC	9 W	32 dB	100 mA	25 CFM	0.7 mł/min	2 Terminals	Aluminum	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	2400 RPM
Mechatronics Fan Group UF80A23-SWHR	38 mm	80 mm	80 mm	70 °C	70 °C	-40 °C	-40 °C	Sleeve	Tubeaxial	0.617 lb	279.87 g	230 VAC	12 W	36 dB	60 mA	30 CFM	0.84 mł/min	2 Wire Leads	Aluminum	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	3000 RPM	0.22 in H2O	54.8 Pa
Mechatronics Fan Group UF80A12-BTHR	38 mm	80 mm	80 mm	70 °C	70 °C	-40 °C	-40 °C	Ball	Tubeaxial	0.617 lb	279.87 g	115 VAC	9 W	36 dB	120 mA	30 CFM	0.84 mł/min	2 Terminals	Aluminum	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	3000 RPM	0.22 in H2O	54.8 Pa
