HLCD-30-12.00-TD-TH-1

Active

Samtec Inc.

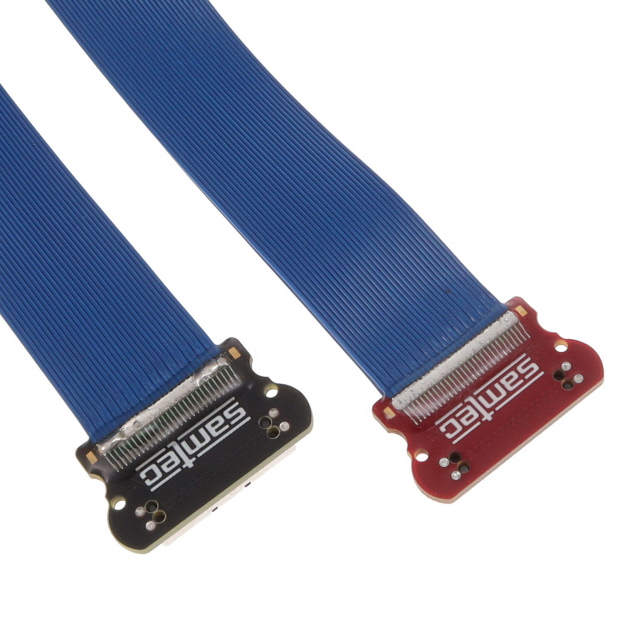

CBL ASSM SELF-MATE 60POS 12" HDR

Find alt

Alpha

HLCD-30-12.00-TD-TH-1

Active

Samtec Inc.

CBL ASSM SELF-MATE 60POS 12" HDR

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

HLCD-30 Series

60 Position Cable Assembly Rectangular Self Mating, Non-Gendered, Hermaphroditic to Self Mating, Non-Gendered, Hermaphroditic, Reversed 1.00' (304.80mm)

Technical Specifications

Parameters and characteristics for this part

Specification	HLCD-30-12.00-TD-TH-1

Cable Termination	IDC
Color	Ribbon, Blue
Connector Type	Hermaphroditic, Self Mating, Non-Gendered, Reversed, Hermaphroditic to Self Mating
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Length	12 in
Number of Positions	60
Number of Rows	2
Pitch - Cable	0.01 in
Pitch - Connector	0.02 in
Shielding	Shielded

HLCD-30 Series

Part	Cable Termination	Shielding	Color	Contact Finish	Pitch - Cable	Contact Finish Thickness	Length	Number of Positions	Pitch - Connector	Number of Rows	Connector Type
Samtec Inc. HLCD-30-40.00-TR-TR-1	IDC	Shielded	Blue Ribbon	Gold	0.01 in	10 Ąin	3.33 ft	60	0.02 in	2	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Self Mating
Samtec Inc. HLCD-30-06.00-TR-TR-1	IDC	Shielded	Blue Ribbon	Gold	0.01 in	10 Ąin	0.5 ft	60	0.02 in	2	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Self Mating
Samtec Inc. HLCD-30-18.00-TR-TR-1	IDC	Shielded	Blue Ribbon	Gold	0.01 in	10 Ąin	1.5 ft	60	0.02 in	2	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Self Mating
Samtec Inc. HLCD-30-12.00-TR-TR-1	IDC	Shielded	Blue Ribbon	Gold	0.01 in	10 Ąin	12 in	60	0.02 in	2	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Self Mating
Samtec Inc. HLCD-30-12.00-TD-TH-1	IDC	Shielded	Blue Ribbon	Gold	0.01 in	10 Ąin	12 in	60	0.02 in	2	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating
Samtec Inc. HLCD-30-06.00-TR-TR-2	IDC	Shielded	Blue Ribbon	Gold	0.01 in	10 Ąin	0.5 ft	60	0.02 in	2	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Self Mating
Samtec Inc. HLCD-30-40.00-TD-TH-1	IDC	Shielded	Blue Ribbon	Gold	0.01 in	10 Ąin	3.33 ft	60	0.02 in	2	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating
Samtec Inc. HLCD-30-06.00-TD-TH-1	IDC	Shielded	Blue Ribbon	Gold	0.01 in	10 Ąin	0.5 ft	60	0.02 in	2	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating
Samtec Inc. HLCD-30-12.00-TD-TH-2	IDC	Shielded	Blue Ribbon	Gold	0.01 in	10 Ąin	12 in	60	0.02 in	2	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating
Samtec Inc. HLCD-30-40.00-TR-TR-2	IDC	Shielded	Blue Ribbon	Gold	0.01 in	10 Ąin	3.33 ft	60	0.02 in	2	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Self Mating
