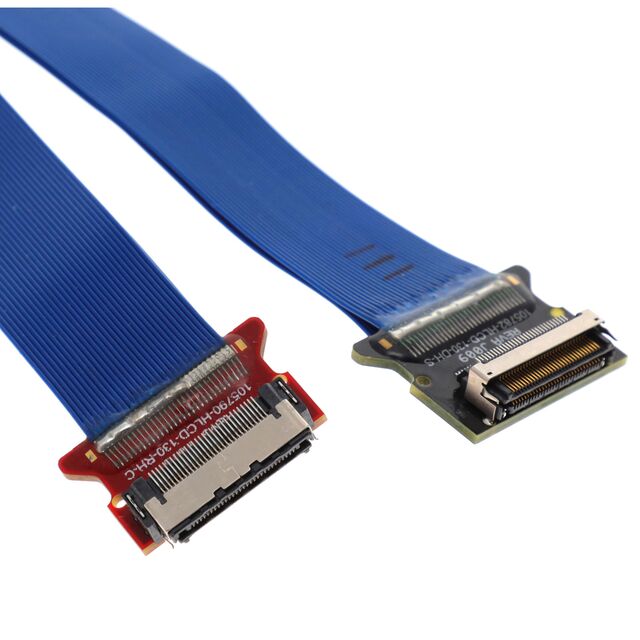

HLCD-30-12.00-TD-TH-2

Active

Samtec Inc.

CBL ASSM SELF-MATE 60POS 12" HDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HLCD-30-12.00-TD-TH-2

Active

Samtec Inc.

CBL ASSM SELF-MATE 60POS 12" HDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HLCD-30-12.00-TD-TH-2

Cable Termination	IDC
Color	Ribbon, Blue
Connector Type	Hermaphroditic to Self Mating, Reversed, Hermaphroditic, Self Mating, Non-Gendered
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Length	1 ft
Length	304.8 mm
Number of Positions	60
Number of Rows	2
Pitch - Cable	0.01 in
Pitch - Cable	0.25 mm
Pitch - Connector	0.02 in
Pitch - Connector	0.5 mm
Shielding	Shielded

HLCD-30 Series

Part	Cable Termination	Contact Finish	Number of Rows	Pitch - Cable	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Length [x]	Length [x]	Shielding	Connector Type	Color	Pitch - Connector	Pitch - Connector	Length	Length	Length	Length
Samtec Inc. HLCD-30-40.00-TR-TR-1	IDC	Gold	2	0.01 in	0.25 mm	10 Áin	0.25 Ám	60	1.02 m	3.33 '	Shielded	Self Mating Non-Gendered Hermaphroditic to Self Mating Non-Gendered Hermaphroditic	Blue Ribbon	0.02 in	0.5 mm
Samtec Inc. HLCD-30-06.00-TR-TR-1	IDC	Gold	2	0.01 in	0.25 mm	10 Áin	0.25 Ám	60			Shielded	Self Mating Non-Gendered Hermaphroditic to Self Mating Non-Gendered Hermaphroditic	Blue Ribbon	0.02 in	0.5 mm	152.4 mm	6 "	0.5 '
Samtec Inc. HLCD-30-18.00-TR-TR-1	IDC	Gold	2	0.01 in	0.25 mm	10 Áin	0.25 Ám	60	457.2 mm	1.5 ft	Shielded	Self Mating Non-Gendered Hermaphroditic to Self Mating Non-Gendered Hermaphroditic	Blue Ribbon	0.02 in	0.5 mm
Samtec Inc. HLCD-30-12.00-TR-TR-1	IDC	Gold	2	0.01 in	0.25 mm	10 Áin	0.25 Ám	60			Shielded	Self Mating Non-Gendered Hermaphroditic to Self Mating Non-Gendered Hermaphroditic	Blue Ribbon	0.02 in	0.5 mm	304.8 mm			1 ft
Samtec Inc. HLCD-30-06.00-TR-TR-2	IDC	Gold	2	0.01 in	0.25 mm	10 Áin	0.25 Ám	60			Shielded	Self Mating Non-Gendered Hermaphroditic to Self Mating Non-Gendered Hermaphroditic	Blue Ribbon	0.02 in	0.5 mm	152.4 mm	6 "	0.5 '
Samtec Inc. HLCD-30-40.00-TD-TH-1	IDC	Gold	2	0.01 in	0.25 mm	10 Áin	0.25 Ám	60	1.02 m	3.33 '	Shielded	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	Blue Ribbon	0.02 in	0.5 mm
Samtec Inc. HLCD-30-06.00-TD-TH-1	IDC	Gold	2	0.01 in	0.25 mm	10 Áin	0.25 Ám	60			Shielded	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	Blue Ribbon	0.02 in	0.5 mm	152.4 mm	6 "	0.5 '
Samtec Inc. HLCD-30-12.00-TD-TH-2	IDC	Gold	2	0.01 in	0.25 mm	10 Áin	0.25 Ám	60			Shielded	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	Blue Ribbon	0.02 in	0.5 mm	304.8 mm			1 ft
Samtec Inc. HLCD-30-40.00-TD-TH-2	IDC	Gold	2	0.01 in	0.25 mm	10 Áin	0.25 Ám	60	1.02 m	3.33 '	Shielded	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	Blue Ribbon	0.02 in	0.5 mm
Samtec Inc. HLCD-30-06.00-TD-TH-2	IDC	Gold	2	0.01 in	0.25 mm	10 Áin	0.25 Ám	60			Shielded	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	Blue Ribbon	0.02 in	0.5 mm	152.4 mm	6 "	0.5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 109.03
		10	$ 84.89
		25	$ 77.26
		50	$ 72.12
		100	$ 67.46

Description

General part information

HLCD-30 Series

60 Position Cable Assembly Rectangular Self Mating, Non-Gendered, Hermaphroditic to Self Mating, Non-Gendered, Hermaphroditic, Reversed 1.00' (304.80mm)
