HSEC8-110-01-S-DV-A
ActiveSamtec Inc.

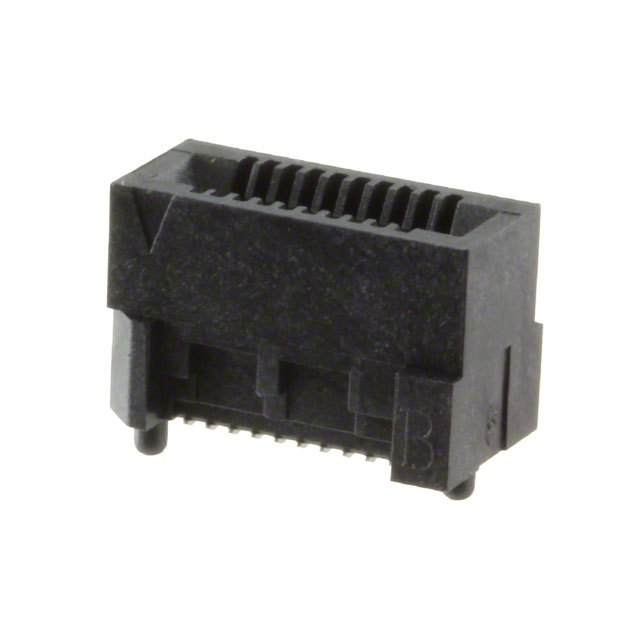

CONN EDGE DUAL FMALE 20POS 0.031
Deep-Dive with AI
Search across all available documentation for this part.
HSEC8-110-01-S-DV-A
ActiveSamtec Inc.
CONN EDGE DUAL FMALE 20POS 0.031
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HSEC8-110-01-S-DV-A |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Contact Type | Cantilever |
| Features | Board Guide |
| Gender | Female |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Number of Positions/Bay/Row [custom] | 10 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
| Read Out | Dual |
| Termination | Solder |
HSEC8-110 Series
| Part | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Features | Contact Material | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Color | Read Out | Card Type | Pitch [x] | Pitch [x] | Number of Positions | Contact Type | Mounting Type | Material - Insulation | Contact Finish | Card Thickness | Card Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Solder | -55 °C | 125 °C | Female | Board Guide | Beryllium Copper | 10 | 0.76 Ám | 30 Áin | 2 | Black | Dual | Non Specified - Dual Edge | 0.8 mm | 0.031 in | 20 | Cantilever | Surface Mount | Liquid Crystal Polymer (LCP) | Gold | 0.093 in | 2.36 mm |
Samtec Inc. | Solder | -55 °C | 125 °C | Female | Board Guide | Beryllium Copper | 10 | 0.25 Ám | 10 Áin | 2 | Black | Dual | Non Specified - Dual Edge | 0.8 mm | 0.031 in | 20 | Cantilever | Surface Mount | Liquid Crystal Polymer (LCP) | Gold | 0.062 in | 1.57 mm |
Samtec Inc. | Solder | -55 °C | 125 °C | Female | Board Guide | Beryllium Copper | 10 | 0.25 Ám | 10 Áin | 2 | Black | Dual | Non Specified - Dual Edge | 0.8 mm | 0.031 in | 20 | Cantilever | Surface Mount | Liquid Crystal Polymer (LCP) | Gold | 0.093 in | 2.36 mm |
Samtec Inc. | Solder | -55 °C | 125 °C | Female | Board Guide | Beryllium Copper | 10 | 0.25 Ám | 10 Áin | 2 | Black | Dual | Non Specified - Dual Edge | 0.8 mm | 0.031 in | 20 | Cantilever | Surface Mount | Liquid Crystal Polymer (LCP) | Gold | 0.062 in | 1.57 mm |
Samtec Inc. | Solder | -55 °C | 125 °C | Female | Board Guide Card Guide | Beryllium Copper | 10 | 0.25 Ám | 10 Áin | 2 | Black | Dual | Non Specified - Dual Edge | 0.8 mm | 0.031 in | 20 | Cantilever | Surface Mount | Liquid Crystal Polymer (LCP) | Gold | 0.062 in | 1.57 mm |
Samtec Inc. | Solder | -55 °C | 125 °C | Female | Board Guide | Beryllium Copper | 10 | 0.76 Ám | 30 Áin | 2 | Black | Dual | Non Specified - Dual Edge | 0.8 mm | 0.031 in | 20 | Cantilever | Surface Mount | Liquid Crystal Polymer (LCP) | Gold | 0.062 in | 1.57 mm |
Samtec Inc. | Solder | -55 °C | 125 °C | Female | Board Guide | Beryllium Copper | 10 | 0.25 Ám | 10 Áin | 2 | Black | Dual | Non Specified - Dual Edge | 0.8 mm | 0.031 in | 20 | Cantilever | Surface Mount | Liquid Crystal Polymer (LCP) | Gold | 0.062 in | 1.57 mm |
Samtec Inc. | Solder | -55 °C | 125 °C | Female | Board Guide | Beryllium Copper | 10 | 0.25 Ám | 10 Áin | 2 | Black | Dual | Non Specified - Dual Edge | 0.8 mm | 0.031 in | 20 | Cantilever | Surface Mount Right Angle | Liquid Crystal Polymer (LCP) | Gold | 0.062 in | 1.57 mm |
Samtec Inc. | Solder | -55 °C | 125 °C | Female | Board Guide Board Lock | Beryllium Copper | 10 | 0.76 Ám | 30 Áin | 2 | Black | Dual | Non Specified - Dual Edge | 0.8 mm | 0.031 in | 20 | Cantilever | Surface Mount | Liquid Crystal Polymer (LCP) | Gold | 0.062 in | 1.57 mm |
Samtec Inc. | Solder | -55 °C | 125 °C | Female | Card Guides | Beryllium Copper | 10 | 0.25 Ám | 10 Áin | 2 | Black | Dual | Non Specified - Dual Edge | 0.8 mm | 0.031 in | 20 | Cantilever | Surface Mount | Liquid Crystal Polymer (LCP) | Gold | 0.062 in | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.66 | |
| 10 | $ 5.10 | |||
| 25 | $ 4.60 | |||
| 40 | $ 4.37 | |||
| 80 | $ 4.05 | |||
| 230 | $ 3.63 | |||
| 440 | $ 3.39 | |||
| 945 | $ 3.15 | |||
| 2400 | $ 2.88 | |||
Description
General part information
HSEC8-110 Series
20 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black
