341-052-555-204
ActiveEDAC Inc.

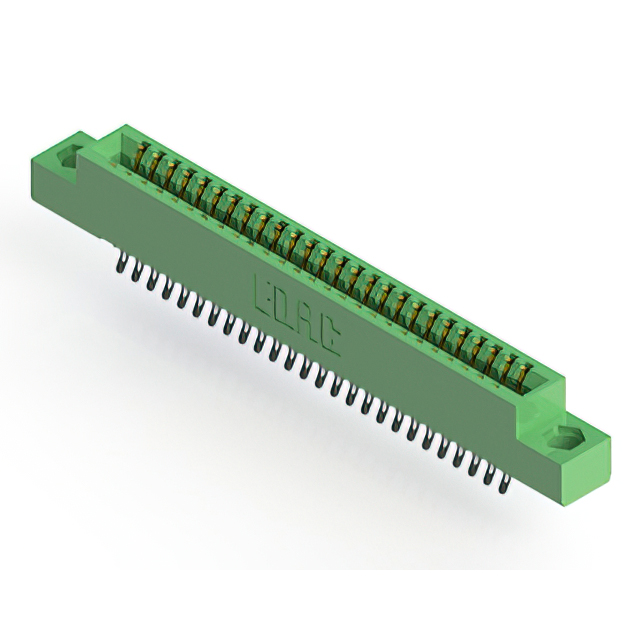

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 52 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
341-052-555-204
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 52 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 341-052-555-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 52 |
| Number of Positions/Bay/Row [custom] | 26 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
341-052 Series
| Part | Gender | Card Type | Contact Finish Thickness | Contact Finish Thickness | Termination | Termination Rows | Flange Feature | Number of Positions | Mounting Type | Contact Material | Color | Number of Positions/Bay/Row [custom] | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Number of Rows | Contact Type | Read Out | Pitch [x] | Pitch [x] | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Solder | 2 | 4-40 Flush Mount Threaded Insert Top Opening | 52 | Through Hole | Copper Alloy | Green | 26 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Semi Bellows | Dual | 2.54 mm | 0.1 in | |||
EDAC Inc. | Female | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Solder | 2 | Flush Mount Top Opening Unthreaded | 52 | Board Edge Straddle Mount | Copper Alloy | Green | 26 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Semi Bellows | Dual | 2.54 mm | 0.1 in | Card Extender | 3.25 mm | 0.128 " |
EDAC Inc. | Female | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Solder | 1 | 52 | Through Hole | Copper Alloy | Green | 52 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | Semi Bellows | Single | 2.54 mm | 0.1 in | ||||
EDAC Inc. | Female | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Solder | 2 | Floating Bobbin Flush Mount | 52 | Through Hole | Copper Alloy | Green | 26 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Semi Bellows | Dual | 2.54 mm | 0.1 in | 2.95 mm | 0.116 in | |
EDAC Inc. | Female | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Solder Eyelet(s) | 2 | Flush Mount Top Opening Unthreaded | 52 | Through Hole | Copper Alloy | Green | 26 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Diallyl Phthalate (DAP) | 2 | Semi Bellows | Dual | 2.54 mm | 0.1 in | 3.25 mm | 0.128 " | |
EDAC Inc. | Female | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Solder | 1 | Flush Mount Top Opening Unthreaded | 52 | Through Hole | Copper Alloy | Green | 52 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | Semi Bellows | Single | 2.54 mm | 0.1 in | 3.25 mm | 0.128 " | |
EDAC Inc. | Female | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Solder | 2 | 52 | Through Hole | Copper Alloy | Green | 26 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Semi Bellows | Dual | 2.54 mm | 0.1 in | ||||
EDAC Inc. | Female | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Solder | 1 | 4-40 Flush Mount Threaded Insert Top Opening | 52 | Through Hole | Copper Alloy | Green | 52 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | Semi Bellows | Single | 2.54 mm | 0.1 in | |||
EDAC Inc. | Female | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Solder | 1 | Flush Mount Top Opening Unthreaded | 52 | Through Hole | Copper Alloy | Green | 52 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | Semi Bellows | Single | 2.54 mm | 0.1 in | 3.96 mm | 0.156 in | |
EDAC Inc. | Female | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Solder Eyelet(s) | 2 | Flush Mount Top Opening Unthreaded | 52 | Board Edge Straddle Mount | Copper Alloy | Green | 26 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Semi Bellows | Dual | 2.54 mm | 0.1 in | Card Extender | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
341-052 Series
52 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
