341-052-524-203

Active

EDAC Inc.

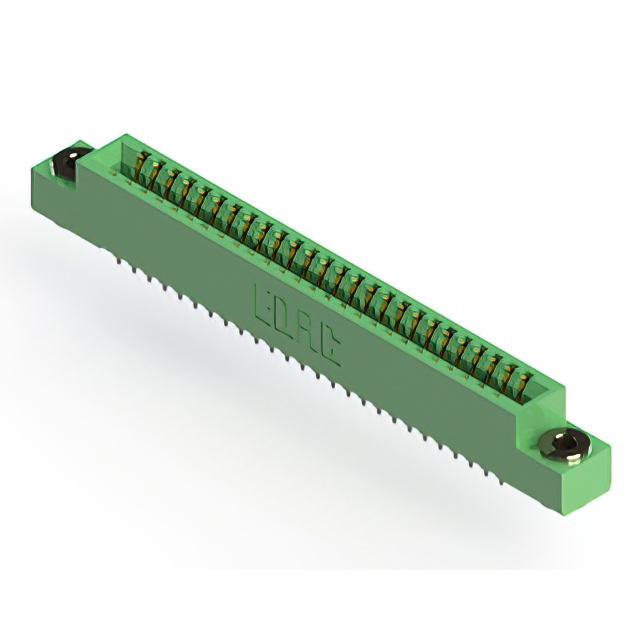

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 52 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

341-052-524-203

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 52 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-052-524-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	52
Number of Positions/Bay/Row [custom]	26
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

341-052 Series

Part	Gender	Card Type	Contact Finish Thickness	Contact Finish Thickness	Termination	Termination Rows	Flange Feature	Number of Positions	Mounting Type	Contact Material	Color	Number of Positions/Bay/Row [custom]	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Number of Rows	Contact Type	Read Out	Pitch [x]	Pitch [x]	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 341-052-522-208	Female	Non Specified - Dual Edge	10 Áin	0.25 Ám	Solder	2	4-40 Flush Mount Threaded Insert Top Opening	52	Through Hole	Copper Alloy	Green	26	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic	2	Semi Bellows	Dual	2.54 mm	0.1 in
EDAC Inc. 341-052-560-202	Female	Non Specified - Dual Edge	10 Áin	0.25 Ám	Solder	2	Flush Mount Top Opening Unthreaded	52	Board Edge Straddle Mount	Copper Alloy	Green	26	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic	2	Semi Bellows	Dual	2.54 mm	0.1 in	Card Extender	3.25 mm	0.128 "
EDAC Inc. 341-052-522-101	Female	Non Specified - Single Edge	10 Áin	0.25 Ám	Solder	1		52	Through Hole	Copper Alloy	Green	52	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic	1	Semi Bellows	Single	2.54 mm	0.1 in
EDAC Inc. 341-052-524-203	Female	Non Specified - Dual Edge	10 Áin	0.25 Ám	Solder	2	Floating Bobbin Flush Mount	52	Through Hole	Copper Alloy	Green	26	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic	2	Semi Bellows	Dual	2.54 mm	0.1 in		2.95 mm	0.116 in
EDAC Inc. 341-052-500-202	Female	Non Specified - Dual Edge	10 Áin	0.25 Ám	Solder Eyelet(s)	2	Flush Mount Top Opening Unthreaded	52	Through Hole	Copper Alloy	Green	26	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Diallyl Phthalate (DAP)	2	Semi Bellows	Dual	2.54 mm	0.1 in		3.25 mm	0.128 "
EDAC Inc. 341-052-524-102	Female	Non Specified - Single Edge	10 Áin	0.25 Ám	Solder	1	Flush Mount Top Opening Unthreaded	52	Through Hole	Copper Alloy	Green	52	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic	1	Semi Bellows	Single	2.54 mm	0.1 in		3.25 mm	0.128 "
EDAC Inc. 341-052-522-201	Female	Non Specified - Dual Edge	10 Áin	0.25 Ám	Solder	2		52	Through Hole	Copper Alloy	Green	26	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic	2	Semi Bellows	Dual	2.54 mm	0.1 in
EDAC Inc. 341-052-522-108	Female	Non Specified - Single Edge	10 Áin	0.25 Ám	Solder	1	4-40 Flush Mount Threaded Insert Top Opening	52	Through Hole	Copper Alloy	Green	52	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic	1	Semi Bellows	Single	2.54 mm	0.1 in
EDAC Inc. 341-052-522-104	Female	Non Specified - Single Edge	10 Áin	0.25 Ám	Solder	1	Flush Mount Top Opening Unthreaded	52	Through Hole	Copper Alloy	Green	52	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic	1	Semi Bellows	Single	2.54 mm	0.1 in		3.96 mm	0.156 in
EDAC Inc. 341-052-555-204	Female	Non Specified - Dual Edge	10 Áin	0.25 Ám	Solder Eyelet(s)	2	Flush Mount Top Opening Unthreaded	52	Board Edge Straddle Mount	Copper Alloy	Green	26	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic	2	Semi Bellows	Dual	2.54 mm	0.1 in	Card Extender	3.96 mm	0.156 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 14.76
Newark	Each	1	$ 14.82
		100	$ 9.29
		250	$ 8.41
		500	$ 7.17
		1000	$ 5.67

Description

General part information

341-052 Series

52 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
