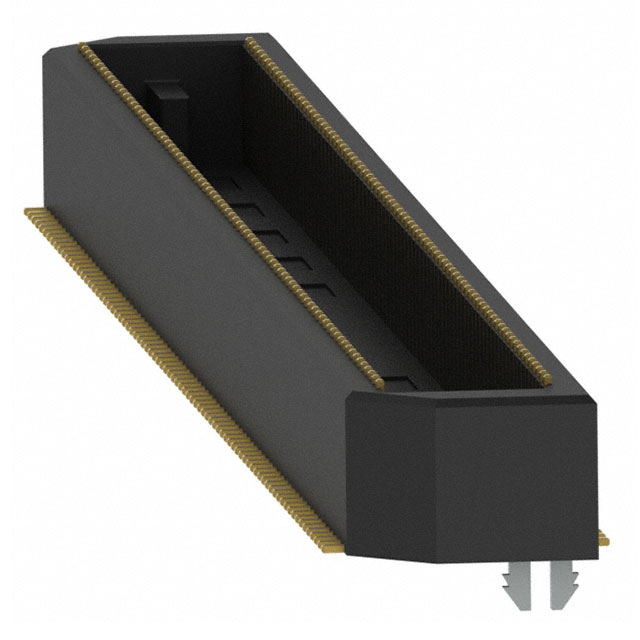

BTE-080-01-H-D-FL-LC

Active

Samtec Inc.

CONN HDR 160POS SMD GOLD

Deep-Dive with AI

DocumentsBTE, BSE Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BTE-080-01-H-D-FL-LC

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Lock, Friction Lock
Height Above Board	4.06 mm
Height Above Board	0.16 in
Mated Stacking Heights	5.03 mm
Mounting Type	Surface Mount
Number of Positions	160
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

BTE-080 Series

Board to Board & Mezzanine Connectors 0.80 mm Basic Blade & Beam Terminal Strip

Part	Contact Finish	Number of Rows	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Mounting Type	Mated Stacking Heights	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Features	Mated Stacking Heights [z]	Height Above Board [z]	Height Above Board [z]
Samtec Inc. BTE-080-01-F-D-LC	Gold	2	4.06 mm	0.16 in	0.8 mm	0.031 in	Surface Mount	5.03 mm	Header Outer Shroud Contacts	3 Áin	0.076 Ám	160
Samtec Inc. BTE-080-01-F-D-A-K	Gold	2	4.06 mm	0.16 in	0.8 mm	0.031 in	Surface Mount	5.03 mm	Header Outer Shroud Contacts	3 Áin	0.076 Ám	160	Board Guide
Samtec Inc. BTE-080-01-L-D-A-K	Gold	2	4.06 mm	0.16 in	0.8 mm	0.031 in	Surface Mount	5.03 mm	Header Outer Shroud Contacts	10 Áin	0.25 Ám	160	Board Guide
Samtec Inc. BTE-080-01-L-D-A-K-TR	Gold	2	4.06 mm	0.16 in	0.8 mm	0.031 in	Surface Mount	5.03 mm	Header Outer Shroud Contacts	10 Áin	0.25 Ám	160	Board Guide
Samtec Inc. BTE-080-02-C-D-A-K	Gold	2	7.06 mm	0.278 "	0.8 mm	0.031 in	Surface Mount		Header Outer Shroud Contacts	50 µin	1.27 µm	160	Board Guide	8.03 mm
Samtec Inc. BTE-080-05-F-D-A-K	Gold	2			0.8 mm	0.031 in	Surface Mount	19.1 mm	Header Outer Shroud Contacts	3 Áin	0.076 Ám	160	Board Guide		0.719 in	18.26 mm
Samtec Inc. BTE-080-01-F-D-A-TR	Gold	2	4.06 mm	0.16 in	0.8 mm	0.031 in	Surface Mount	5.03 mm	Header Outer Shroud Contacts	3 Áin	0.076 Ám	160	Board Guide
Samtec Inc. BTE-080-01-H-D-FL-LC	Gold	2	4.06 mm	0.16 in	0.8 mm	0.031 in	Surface Mount	5.03 mm	Header Outer Shroud Contacts	30 Áin	0.76 Ám	160	Board Lock Friction Lock
Samtec Inc. BTE-040-01-L-D-A-TR	Gold	2	4.06 mm	0.16 in	0.8 mm	0.031 in	Surface Mount	5.03 mm	Header Outer Shroud Contacts	10 Áin	0.25 Ám	80	Board Guide
Samtec Inc. BTE-080-04-F-D-A-K-TR	Gold	2	15.27 mm	0.601 in	0.8 mm	0.031 in	Surface Mount	16.1 mm	Header Outer Shroud Contacts	3 Áin	0.076 Ám	160	Board Guide
