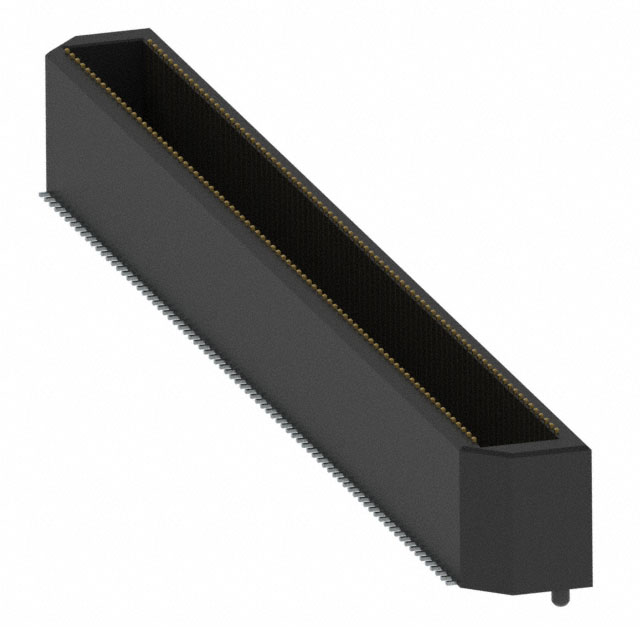

BTE-080-02-C-D-A-K

Active

Samtec Inc.

CONN HDR 160POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBTE (-01/2/3/7/8/9 Lead Style) SMT Footprint Datasheet

BTE-080-02-C-D-A-K

Active

Samtec Inc.

CONN HDR 160POS SMD GOLD

Deep-Dive with AI

DocumentsBTE (-01/2/3/7/8/9 Lead Style) SMT Footprint Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BTE-080-02-C-D-A-K

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Features	Board Guide
Height Above Board	7.06 mm
Height Above Board	0.278 "
Mated Stacking Heights [z]	8.03 mm
Mounting Type	Surface Mount
Number of Positions	160
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

BTE-080 Series

Board to Board & Mezzanine Connectors 0.80 mm Basic Blade & Beam Terminal Strip

Part	Contact Finish	Number of Rows	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Mounting Type	Mated Stacking Heights	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Features	Mated Stacking Heights [z]	Height Above Board [z]	Height Above Board [z]
Samtec Inc. BTE-080-01-F-D-LC	Gold	2	4.06 mm	0.16 in	0.8 mm	0.031 in	Surface Mount	5.03 mm	Header Outer Shroud Contacts	3 Áin	0.076 Ám	160
Samtec Inc. BTE-080-01-F-D-A-K	Gold	2	4.06 mm	0.16 in	0.8 mm	0.031 in	Surface Mount	5.03 mm	Header Outer Shroud Contacts	3 Áin	0.076 Ám	160	Board Guide
Samtec Inc. BTE-080-01-L-D-A-K	Gold	2	4.06 mm	0.16 in	0.8 mm	0.031 in	Surface Mount	5.03 mm	Header Outer Shroud Contacts	10 Áin	0.25 Ám	160	Board Guide
Samtec Inc. BTE-080-01-L-D-A-K-TR	Gold	2	4.06 mm	0.16 in	0.8 mm	0.031 in	Surface Mount	5.03 mm	Header Outer Shroud Contacts	10 Áin	0.25 Ám	160	Board Guide
Samtec Inc. BTE-080-02-C-D-A-K	Gold	2	7.06 mm	0.278 "	0.8 mm	0.031 in	Surface Mount		Header Outer Shroud Contacts	50 µin	1.27 µm	160	Board Guide	8.03 mm
Samtec Inc. BTE-080-05-F-D-A-K	Gold	2			0.8 mm	0.031 in	Surface Mount	19.1 mm	Header Outer Shroud Contacts	3 Áin	0.076 Ám	160	Board Guide		0.719 in	18.26 mm
Samtec Inc. BTE-080-01-F-D-A-TR	Gold	2	4.06 mm	0.16 in	0.8 mm	0.031 in	Surface Mount	5.03 mm	Header Outer Shroud Contacts	3 Áin	0.076 Ám	160	Board Guide
Samtec Inc. BTE-080-01-H-D-FL-LC	Gold	2	4.06 mm	0.16 in	0.8 mm	0.031 in	Surface Mount	5.03 mm	Header Outer Shroud Contacts	30 Áin	0.76 Ám	160	Board Lock Friction Lock
Samtec Inc. BTE-040-01-L-D-A-TR	Gold	2	4.06 mm	0.16 in	0.8 mm	0.031 in	Surface Mount	5.03 mm	Header Outer Shroud Contacts	10 Áin	0.25 Ám	80	Board Guide
Samtec Inc. BTE-080-04-F-D-A-K-TR	Gold	2	15.27 mm	0.601 in	0.8 mm	0.031 in	Surface Mount	16.1 mm	Header Outer Shroud Contacts	3 Áin	0.076 Ám	160	Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.56

Description

General part information

BTE-080 Series

Board to Board & Mezzanine Connectors 0.80 mm Basic Blade & Beam Terminal Strip

Documents

Technical documentation and resources

BTE (-01/2/3/7/8/9 Lead Style) SMT Footprint

Datasheet
