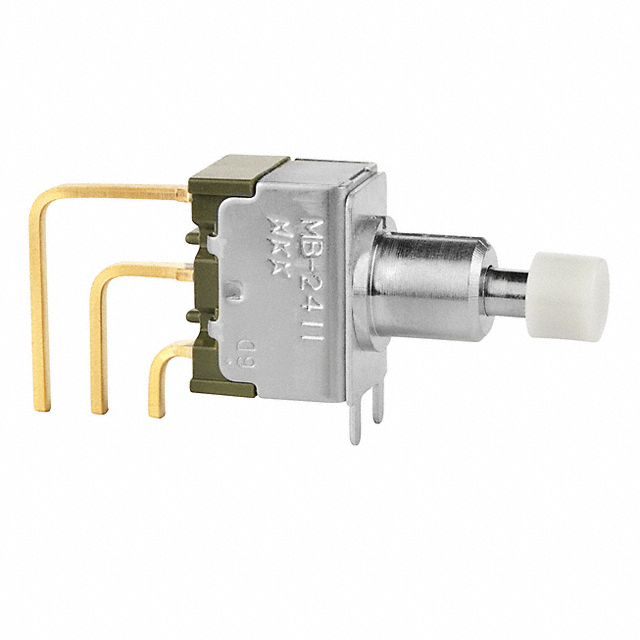

MB2411A2G40-FB

Obsolete

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

MB2411A2G40-FB

Obsolete

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MB2411A2G40-FB

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	White
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	200000 Cycles
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

MB2411A Series

Part	Voltage Rating - AC	Features	Termination Style	Circuit	Actuator Marking	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Actuator Type	Voltage Rating - DC	Type	Electrical Life	Switch Function	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap
NKK Switches MB2411A2G40	28 V	Epoxy Sealed Terminals	PC Pin	SPDT	No Marking	Right Angle Through Hole Vertical	-30 ░C	85 °C	200000 Cycles	Plunger for Cap	28 V	Standard	100000 Cycles	On-Mom	0.4 VA
NKK Switches MB2411A1G30-HA	28 V	Epoxy Sealed Terminals	PC Pin	SPDT	No Marking	Panel Mount Rear Right Angle	-30 ░C	85 °C	200000 Cycles	Button Round	28 V	Standard	100000 Cycles	On-Mom	0.4 VA	6.5 mm	Black
NKK Switches MB2411A2W13-HA	125 V	Epoxy Sealed Terminals	PC Pin	SPDT	No Marking	Through Hole	-30 ░C	85 °C	200000 Cycles	Button Round		Standard	25000 Steps	On-Mom	3 A		Black
NKK Switches MB2411A2W30-FA	125 V	Epoxy Sealed Terminals	PC Pin	SPDT	No Marking	Through Hole Right Angle	-30 ░C	85 °C	200000 Cycles	Button Round		Standard	25000 Steps	On-Mom	3 A		Black
NKK Switches MB2411A2W26	125 V	Epoxy Sealed Terminals	PC Pin	SPDT	No Marking	Through Hole	-30 ░C	85 °C	200000 Cycles	Plunger for Cap		Standard	25000 Steps	On-Mom	3 A
NKK Switches MB2411A2G40-FA	28 V	Epoxy Sealed Terminals	PC Pin	SPDT	No Marking	Right Angle Through Hole Vertical	-30 ░C	85 °C	200000 Cycles	Button Round	28 V	Standard	100000 Cycles	On-Mom	0.4 VA		Black
NKK Switches MB2411A1W03-FC	125 V	Epoxy Sealed Terminals	PC Pin	SPDT	No Marking	Panel Mount Rear	-30 ░C	85 °C	200000 Cycles	Button Round		Standard	25000 Steps	On-Mom	3 A	6.5 mm	Red
NKK Switches MB2411A2G40-FB	28 V	Epoxy Sealed Terminals	PC Pin	SPDT	No Marking	Right Angle Through Hole Vertical	-30 ░C	85 °C	200000 Cycles	Button Round	28 V	Standard	100000 Cycles	On-Mom	0.4 VA		White
NKK Switches MB2411A1A13	125 V	Epoxy Sealed Terminals	PC Pin	SPDT	No Marking	Panel Mount Rear	-30 ░C	85 °C	200000 Cycles	Plunger for Cap		Standard	25000 Steps	On-Mom	3 A	6.5 mm
NKK Switches MB2411A2A40	125 V	Epoxy Sealed Terminals	PC Pin	SPDT	No Marking	Right Angle Through Hole Vertical	-30 ░C	85 °C	200000 Cycles	Plunger for Cap		Standard	25000 Steps	On-Mom	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.58
		10	$ 15.40
		100	$ 14.36
		250	$ 12.62
		2500	$ 11.22

Description

General part information

MB2411A Series

Pushbutton Switch SPDT Standard Through Hole, Right Angle, Vertical
