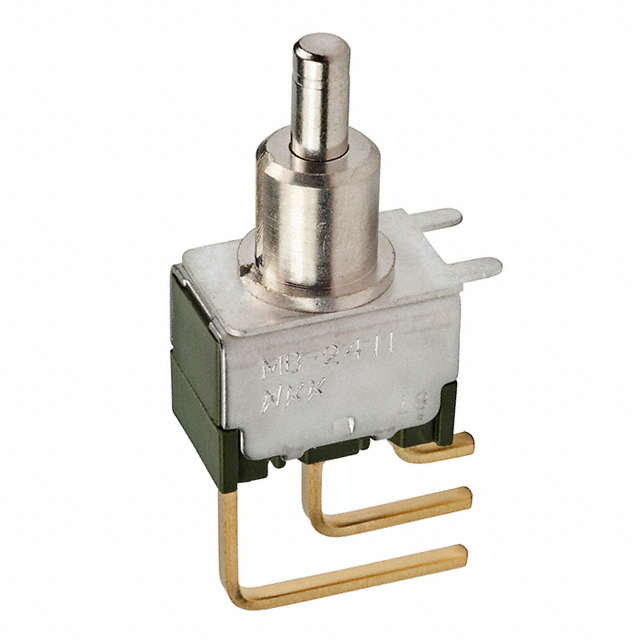

MB2411A2G40

Obsolete

NKK Switches

PUSHBUTTON SWITCHES SPDT ON-(ON) .4VA .28 BUSHING VERT PC

Deep-Dive with AI

Search across all available documentation for this part.

MB2411A2G40

Obsolete

NKK Switches

PUSHBUTTON SWITCHES SPDT ON-(ON) .4VA .28 BUSHING VERT PC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MB2411A2G40

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	200000 Cycles
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

MB2411A Series

Part	Voltage Rating - AC	Features	Termination Style	Circuit	Actuator Marking	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Actuator Type	Voltage Rating - DC	Type	Electrical Life	Switch Function	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap
NKK Switches MB2411A2G40	28 V	Epoxy Sealed Terminals	PC Pin	SPDT	No Marking	Right Angle Through Hole Vertical	-30 ░C	85 °C	200000 Cycles	Plunger for Cap	28 V	Standard	100000 Cycles	On-Mom	0.4 VA
NKK Switches MB2411A1G30-HA	28 V	Epoxy Sealed Terminals	PC Pin	SPDT	No Marking	Panel Mount Rear Right Angle	-30 ░C	85 °C	200000 Cycles	Button Round	28 V	Standard	100000 Cycles	On-Mom	0.4 VA	6.5 mm	Black
NKK Switches MB2411A2W13-HA	125 V	Epoxy Sealed Terminals	PC Pin	SPDT	No Marking	Through Hole	-30 ░C	85 °C	200000 Cycles	Button Round		Standard	25000 Steps	On-Mom	3 A		Black
NKK Switches MB2411A2W30-FA	125 V	Epoxy Sealed Terminals	PC Pin	SPDT	No Marking	Through Hole Right Angle	-30 ░C	85 °C	200000 Cycles	Button Round		Standard	25000 Steps	On-Mom	3 A		Black
NKK Switches MB2411A2W26	125 V	Epoxy Sealed Terminals	PC Pin	SPDT	No Marking	Through Hole	-30 ░C	85 °C	200000 Cycles	Plunger for Cap		Standard	25000 Steps	On-Mom	3 A
NKK Switches MB2411A2G40-FA	28 V	Epoxy Sealed Terminals	PC Pin	SPDT	No Marking	Right Angle Through Hole Vertical	-30 ░C	85 °C	200000 Cycles	Button Round	28 V	Standard	100000 Cycles	On-Mom	0.4 VA		Black
NKK Switches MB2411A1W03-FC	125 V	Epoxy Sealed Terminals	PC Pin	SPDT	No Marking	Panel Mount Rear	-30 ░C	85 °C	200000 Cycles	Button Round		Standard	25000 Steps	On-Mom	3 A	6.5 mm	Red
NKK Switches MB2411A2G40-FB	28 V	Epoxy Sealed Terminals	PC Pin	SPDT	No Marking	Right Angle Through Hole Vertical	-30 ░C	85 °C	200000 Cycles	Button Round	28 V	Standard	100000 Cycles	On-Mom	0.4 VA		White
NKK Switches MB2411A1A13	125 V	Epoxy Sealed Terminals	PC Pin	SPDT	No Marking	Panel Mount Rear	-30 ░C	85 °C	200000 Cycles	Plunger for Cap		Standard	25000 Steps	On-Mom	3 A	6.5 mm
NKK Switches MB2411A2A40	125 V	Epoxy Sealed Terminals	PC Pin	SPDT	No Marking	Right Angle Through Hole Vertical	-30 ░C	85 °C	200000 Cycles	Plunger for Cap		Standard	25000 Steps	On-Mom	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.38
		10	$ 8.45
		25	$ 8.10
		50	$ 7.70
		100	$ 7.39
		250	$ 6.95

Description

General part information

MB2411A Series

Pushbutton Switch SPDT Standard Through Hole, Right Angle, Vertical

Documents

Technical documentation and resources

No documents available
