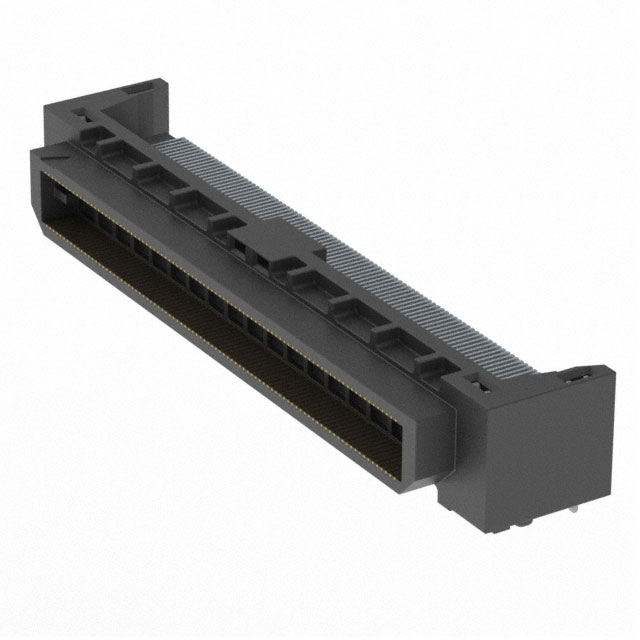

BTH-090-01-L-D-RA-WT-K

Active

Samtec Inc.

CONN HDR 180POS R/A SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BTH-090-01-L-D-RA-WT-K

Active

Samtec Inc.

CONN HDR 180POS R/A SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BTH-090-01-L-D-RA-WT-K

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Solder Retention
Mounting Type	Surface Mount, Right Angle
Number of Positions	180
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

BTH-090 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Rows	Pitch [x]	Pitch [x]	Mated Stacking Heights	Features	Number of Positions	Mounting Type	Contact Finish	Height Above Board	Height Above Board	Height Above Board [z]	Height Above Board [z]
Samtec Inc. BTH-090-01-L-D-A-K-TR	10 Áin	0.25 Ám	Header Outer Shroud Contacts	2	0.5 mm	0.02 in	5 mm	Board Guide Pick and Place	180	Surface Mount	Gold
Samtec Inc. BTH-090-02-F-D-A	3 Áin	0.076 Ám	Header Outer Shroud Contacts	2	0.5 mm	0.02 in	8 mm	Board Guide	180	Surface Mount	Gold	7.26 mm	0.286 "
Samtec Inc. BTH-090-04-F-D-A-K	3 Áin	0.076 Ám	Header Outer Shroud Contacts	2	0.5 mm	0.02 in	16 mm	Board Guide	180	Surface Mount	Gold	15.24 mm	0.6 in
Samtec Inc. BTH-090-02-F-D-A-TR	3 Áin	0.076 Ám	Header Outer Shroud Contacts	2	0.5 mm	0.02 in	8 mm	Board Guide	180	Surface Mount	Gold	7.26 mm	0.286 "
Samtec Inc. BTH-090-04-L-D-A-TR	10 Áin	0.25 Ám	Header Outer Shroud Contacts	2	0.5 mm	0.02 in	16 mm	Board Guide	180	Surface Mount	Gold	15.24 mm	0.6 in
Samtec Inc. BTH-090-02-L-D-A-TR	10 Áin	0.25 Ám	Header Outer Shroud Contacts	2	0.5 mm	0.02 in	8 mm	Board Guide	180	Surface Mount	Gold	7.26 mm	0.286 "
Samtec Inc. BTH-090-05-H-D-A	30 Áin	0.76 Ám	Header Outer Shroud Contacts	2	0.5 mm	0.02 in	19 mm	Board Guide	180	Surface Mount	Gold	18.24 mm	0.718 in
Samtec Inc. BTH-090-06-F-D	3 Áin	0.076 Ám	Header Outer Shroud Contacts	2	0.5 mm	0.02 in	22 mm		180	Surface Mount	Gold			21.23 mm	0.836 "
Samtec Inc. BTH-090-01-H-D-LC	30 Áin	0.76 Ám	Header Outer Shroud Contacts	2	0.5 mm	0.02 in	5 mm		180	Surface Mount	Gold
Samtec Inc. BTH-090-01-L-D-RA-WT-K	10 Áin	0.25 Ám	Header Outer Shroud Contacts	2	0.5 mm	0.02 in		Solder Retention	180	Surface Mount Right Angle	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 34.75

Description

General part information

BTH-090 Series

180 Position Connector Header, Outer Shroud Contacts Surface Mount, Right Angle Gold
