BTH-090-01-H-D-LC

Active

Samtec Inc.

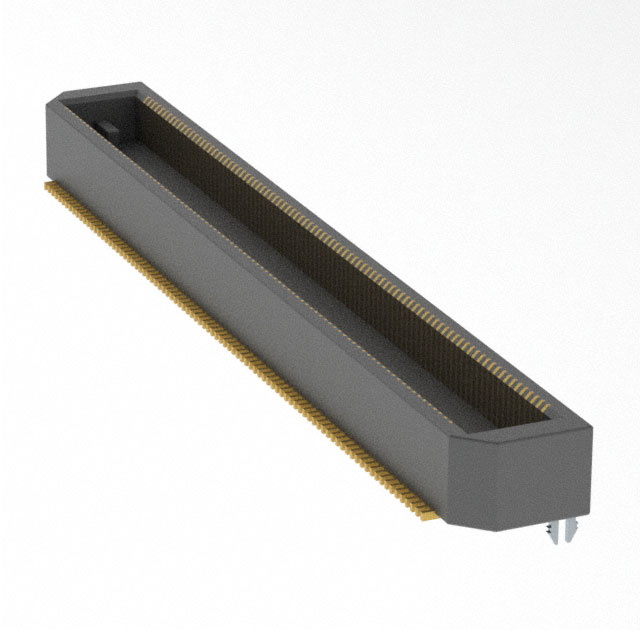

CONN HDR 180POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBTH Surface Mount Footprint Datasheet

BTH-090-01-H-D-LC

Active

Samtec Inc.

CONN HDR 180POS SMD GOLD

Deep-Dive with AI

DocumentsBTH Surface Mount Footprint Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BTH-090-01-H-D-LC

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Mated Stacking Heights	5 mm
Mounting Type	Surface Mount
Number of Positions	180
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

BTH-090 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Rows	Pitch [x]	Pitch [x]	Mated Stacking Heights	Features	Number of Positions	Mounting Type	Contact Finish	Height Above Board	Height Above Board	Height Above Board [z]	Height Above Board [z]
Samtec Inc. BTH-090-01-L-D-A-K-TR	10 Áin	0.25 Ám	Header Outer Shroud Contacts	2	0.5 mm	0.02 in	5 mm	Board Guide Pick and Place	180	Surface Mount	Gold
Samtec Inc. BTH-090-02-F-D-A	3 Áin	0.076 Ám	Header Outer Shroud Contacts	2	0.5 mm	0.02 in	8 mm	Board Guide	180	Surface Mount	Gold	7.26 mm	0.286 "
Samtec Inc. BTH-090-04-F-D-A-K	3 Áin	0.076 Ám	Header Outer Shroud Contacts	2	0.5 mm	0.02 in	16 mm	Board Guide	180	Surface Mount	Gold	15.24 mm	0.6 in
Samtec Inc. BTH-090-02-F-D-A-TR	3 Áin	0.076 Ám	Header Outer Shroud Contacts	2	0.5 mm	0.02 in	8 mm	Board Guide	180	Surface Mount	Gold	7.26 mm	0.286 "
Samtec Inc. BTH-090-04-L-D-A-TR	10 Áin	0.25 Ám	Header Outer Shroud Contacts	2	0.5 mm	0.02 in	16 mm	Board Guide	180	Surface Mount	Gold	15.24 mm	0.6 in
Samtec Inc. BTH-090-02-L-D-A-TR	10 Áin	0.25 Ám	Header Outer Shroud Contacts	2	0.5 mm	0.02 in	8 mm	Board Guide	180	Surface Mount	Gold	7.26 mm	0.286 "
Samtec Inc. BTH-090-05-H-D-A	30 Áin	0.76 Ám	Header Outer Shroud Contacts	2	0.5 mm	0.02 in	19 mm	Board Guide	180	Surface Mount	Gold	18.24 mm	0.718 in
Samtec Inc. BTH-090-06-F-D	3 Áin	0.076 Ám	Header Outer Shroud Contacts	2	0.5 mm	0.02 in	22 mm		180	Surface Mount	Gold			21.23 mm	0.836 "
Samtec Inc. BTH-090-01-H-D-LC	30 Áin	0.76 Ám	Header Outer Shroud Contacts	2	0.5 mm	0.02 in	5 mm		180	Surface Mount	Gold
Samtec Inc. BTH-090-01-L-D-RA-WT-K	10 Áin	0.25 Ám	Header Outer Shroud Contacts	2	0.5 mm	0.02 in		Solder Retention	180	Surface Mount Right Angle	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 34.02

Description

General part information

BTH-090 Series

180 Position Connector Header, Outer Shroud Contacts Surface Mount Gold

Documents

Technical documentation and resources

BTH Surface Mount Footprint

Datasheet
