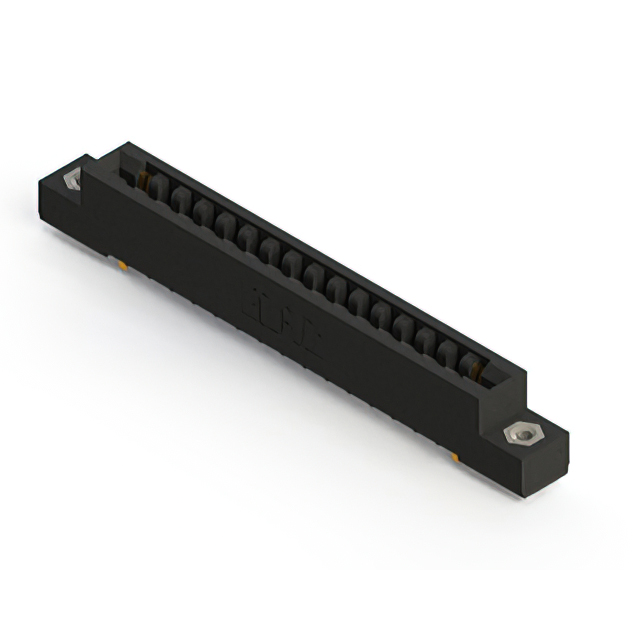

857-016-558-108
ActiveEDAC Inc.
CONN EDGE SGL FMALE 16POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
857-016-558-108
ActiveEDAC Inc.
CONN EDGE SGL FMALE 16POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 857-016-558-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 16 |
| Number of Positions/Bay/Row [custom] | 16 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
857-016 Series
...
| Part | Contact Finish | Number of Positions/Bay/Row [custom] | Termination | Contact Type | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Pitch [x] | Pitch [x] | Color | Contact Material | Card Type | Read Out | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Number of Positions | Features | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | 16 | Solder Eyelet(s) | Semi Bellows | Female | 125 °C | -40 °C | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 0.156 in | 3.96 mm | Black | Copper Alloy | Non Specified - Dual Edge | Dual | Through Hole | 10 Áin | 0.25 Ám | 2 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | |||||
EDAC Inc. | Tin | Solder | Semi Bellows | Female | 125 °C | -40 °C | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 0.156 in | 3.96 mm | Black | Copper Alloy | Non Specified - Dual Edge | Dual | Board Edge Straddle Mount | 2 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 16 | Card Extender | 8 | 8 | 8 | |||
EDAC Inc. | Gold | 16 | Solder | Semi Bellows | Female | 125 °C | -40 °C | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Black | Copper Alloy | Non Specified - Single Edge | Single | Through Hole Right Angle | 10 Áin | 0.25 Ám | 1 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 16 | ||||||
EDAC Inc. | Tin | Solder | Semi Bellows | Female | 125 °C | -40 °C | 0.156 in | 3.96 mm | Black | Copper Alloy | Non Specified - Dual Edge | Single | Through Hole Right Angle | 2 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 16 | 8 | 8 | 8 | |||||||
EDAC Inc. | Tin | 16 | Solder | Semi Bellows | Female | 125 °C | -40 °C | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 0.156 in | 3.96 mm | Black | Copper Alloy | Non Specified - Single Edge | Single | Through Hole Right Angle | 1 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 16 | ||||||
EDAC Inc. | Tin | 16 | Solder | Semi Bellows | Female | 125 °C | -40 °C | 0.156 in | 3.96 mm | Black | Copper Alloy | Non Specified - Single Edge | Single | Through Hole Right Angle | 1 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 16 | |||||||||
EDAC Inc. | Gold | 16 | Solder | Semi Bellows | Female | 125 °C | -40 °C | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 0.156 in | 3.96 mm | Black | Copper Alloy | Non Specified - Dual Edge | Dual | Through Hole Right Angle | 10 Áin | 0.25 Ám | 2 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | |||||
EDAC Inc. | Gold | 16 | Solder | Semi Bellows | Female | 125 °C | -40 °C | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 0.156 in | 3.96 mm | Black | Copper Alloy | Non Specified - Dual Edge | Dual | Through Hole Right Angle | 10 Áin | 0.25 Ám | 2 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | |||||
EDAC Inc. | Tin | 16 | Solder | Semi Bellows | Female | 125 °C | -40 °C | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 0.156 in | 3.96 mm | Black | Copper Alloy | Non Specified - Dual Edge | Dual | Through Hole Right Angle | 2 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | |||||||
EDAC Inc. | Tin | 16 | Solder | Semi Bellows | Female | 125 °C | -40 °C | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Black | Copper Alloy | Non Specified - Single Edge | Single | Through Hole Right Angle | 1 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 96.13 | |
Description
General part information
857-016 Series
16 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
