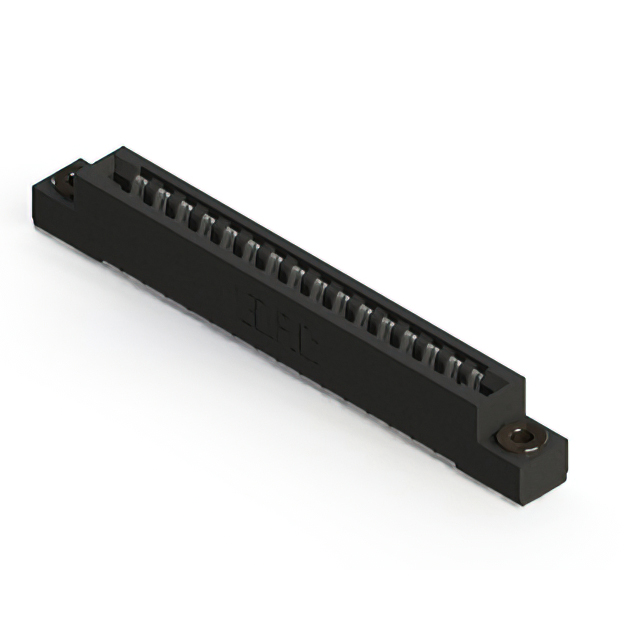

857-016-459-103

Active

EDAC Inc.

CONN EDGE SGL FML 16POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-016-459-103

Active

EDAC Inc.

CONN EDGE SGL FML 16POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-016-459-103

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	16
Number of Positions/Bay/Row [custom]	16
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

857-016 Series

...

Part	Contact Finish	Number of Positions/Bay/Row [custom]	Termination	Contact Type	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Pitch [x]	Pitch [x]	Color	Contact Material	Card Type	Read Out	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Number of Positions	Features	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]
EDAC Inc. 857-016-501-102	Gold	16	Solder Eyelet(s)	Semi Bellows	Female	125 °C	-40 °C	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	0.156 in	3.96 mm	Black	Copper Alloy	Non Specified - Dual Edge	Dual	Through Hole	10 Áin	0.25 Ám	2	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)
EDAC Inc. 857-016-455-202	Tin		Solder	Semi Bellows	Female	125 °C	-40 °C	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	0.156 in	3.96 mm	Black	Copper Alloy	Non Specified - Dual Edge	Dual	Board Edge Straddle Mount			2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	16	Card Extender	8	8	8
EDAC Inc. 857-016-558-108	Gold	16	Solder	Semi Bellows	Female	125 °C	-40 °C			4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	Black	Copper Alloy	Non Specified - Single Edge	Single	Through Hole Right Angle	10 Áin	0.25 Ám	1	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	16
EDAC Inc. 857-016-458-201	Tin		Solder	Semi Bellows	Female	125 °C	-40 °C				0.156 in	3.96 mm	Black	Copper Alloy	Non Specified - Dual Edge	Single	Through Hole Right Angle			2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	16		8	8	8
EDAC Inc. 857-016-459-103	Tin	16	Solder	Semi Bellows	Female	125 °C	-40 °C	2.95 mm	0.116 in	Floating Bobbin Flush Mount	0.156 in	3.96 mm	Black	Copper Alloy	Non Specified - Single Edge	Single	Through Hole Right Angle			1	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	16
EDAC Inc. 857-016-459-101	Tin	16	Solder	Semi Bellows	Female	125 °C	-40 °C				0.156 in	3.96 mm	Black	Copper Alloy	Non Specified - Single Edge	Single	Through Hole Right Angle			1	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	16
EDAC Inc. 857-016-557-103	Gold	16	Solder	Semi Bellows	Female	125 °C	-40 °C	2.95 mm	0.116 in	Floating Bobbin Flush Mount	0.156 in	3.96 mm	Black	Copper Alloy	Non Specified - Dual Edge	Dual	Through Hole Right Angle	10 Áin	0.25 Ám	2	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)
EDAC Inc. 857-016-553-103	Gold	16	Solder	Semi Bellows	Female	125 °C	-40 °C	2.95 mm	0.116 in	Floating Bobbin Flush Mount	0.156 in	3.96 mm	Black	Copper Alloy	Non Specified - Dual Edge	Dual	Through Hole Right Angle	10 Áin	0.25 Ám	2	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)
EDAC Inc. 857-016-453-102	Tin	16	Solder	Semi Bellows	Female	125 °C	-40 °C	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	0.156 in	3.96 mm	Black	Copper Alloy	Non Specified - Dual Edge	Dual	Through Hole Right Angle			2	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)
EDAC Inc. 857-016-459-108	Tin	16	Solder	Semi Bellows	Female	125 °C	-40 °C			4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	Black	Copper Alloy	Non Specified - Single Edge	Single	Through Hole Right Angle			1	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 96.13

Description

General part information

857-016 Series

16 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Black
