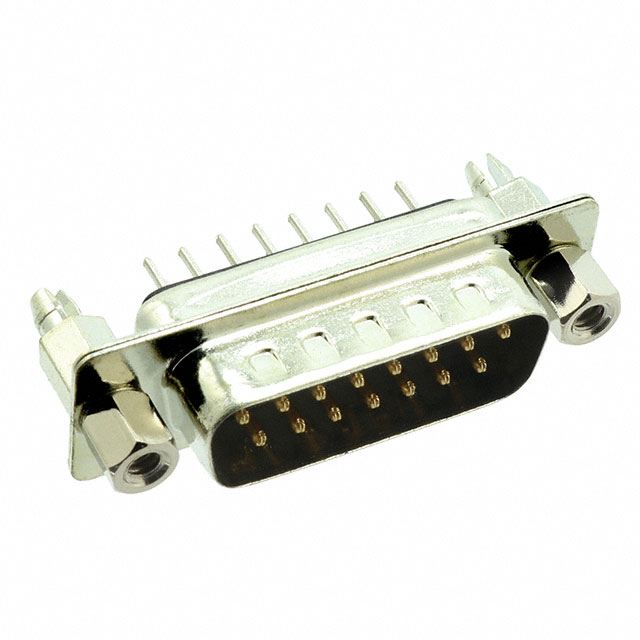

CONN D-SUB PIN 15 POS 1.38MM SOLDER ST THRU-HOLE 15 TERMINAL 1 PORT TRAY
Deep-Dive with AI
Search across all available documentation for this part.
DA15-PT-1-BL-JS
ActiveAdam Tech
CONN D-SUB PIN 15 POS 1.38MM SOLDER ST THRU-HOLE 15 TERMINAL 1 PORT TRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DA15-PT-1-BL-JS |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents, Board Lock |
| Flange Feature | Board Side (4-40), Mating Side, Female Screwlock (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Shell Size, Connector Layout | 2 |
| Termination | Solder |
| Voltage Rating | 250 VAC |
DA15 Series
| Part | Compatible Shell Size | Features | Shielding | Color | Number of Positions | Material | Cable Type | Primary Material | Accessory Type | Cable Exit | Compatible D-Sub Size | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Termination | Contact Material | Contact Finish Thickness | Current Rating (Amps) | Flange Feature | Contact Finish | Dielectric Material | Number of Rows | Voltage Rating | Wire Gauge [Max] | Wire Gauge [Min] | Mounting Type | Connector Style | Shell Size, Connector Layout | Material Flammability Rating | Shell Material, Finish | Contact Form | Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | A | Mating Screws 4-40 | Unshielded | Black | 15 | Acrylonitrile Butadiene Styrene (ABS) | Round | Plastic | Two Piece Backshell | 180 ° | 15pos HD26pos | |||||||||||||||||||||
Adam Tech | Grounding Indents | Black | 15 | -55 °C | 125 °C | Male Pins Plug | IDC Ribbon Cable | Phosphor Bronze | Flash | 3 A | Housing/Shell (Unthreaded) | Gold | Polybutylene Terephthalate (PBT) Glass Filled | 2 | 250 VAC | 30 AWG | 27.5 AWG | Free Hanging (In-Line) | D-Sub | 2 | UL94 V-0 | |||||||||||
Adam Tech | Black | 15 | -65 ░C | 125 °C | Receptacle Female Sockets | Solder | Copper Alloy | Flash | Housing/Shell (4-40) | Gold | Polybutylene Terephthalate (PBT) Glass Filled | 2 | 250 VAC | Through Hole | D-Sub | 2 | UL94 V-0 | Steel | ||||||||||||||
Adam Tech | Black | 15 | -20 C | 85 °C | Receptacle Female Sockets | Copper Alloy | Flash | 3 A | Housing/Shell (Unthreaded) | Gold | Polybutylene Terephthalate (PBT) Glass Filled | 2 | 250 VAC | Free Hanging (In-Line) | D-Sub | 2 | UL94 V-0 | Stamped | ||||||||||||||
Adam Tech | A | Mating Screws 4-40 | Shielded | 15 | Aluminum Die Cast | Round | Metal | Two Piece Backshell | 180 ° | 15pos HD26pos | Chromate | |||||||||||||||||||||
Adam Tech | Board Lock Grounding Indents | Black | 15 | Male Pins Plug | Solder | Copper Alloy | Flash | 3 A | Board Side (4-40) Mating Side Female Screwlock (4-40) | Gold | Polybutylene Terephthalate (PBT) Glass Filled | 2 | 250 VAC | Through Hole | D-Sub | 2 | UL94 V-0 | |||||||||||||||
Adam Tech | Black | 15 | -55 °C | 125 °C | Receptacle Female Sockets | Wire Wrap | Brass | Flash | 5 A | Housing/Shell (4-40) | Gold | Thermoplastic Glass Filled | 2 | 600 V | Through Hole | D-Sub | 2 | UL94 V-0 | Nickel Plated Steel | |||||||||||||
Adam Tech | Grounding Indents | Black | 15 | -55 °C | 125 °C | Male Pins Plug | Wire Wrap | Brass | Flash | 5 A | Housing/Shell (4-40) | Gold | Thermoplastic Glass Filled | 2 | 600 V | Through Hole | D-Sub | 2 | UL94 V-0 | Nickel Plated Steel | ||||||||||||
Adam Tech | A | Mating Screws 4-40 | Shielded | Silver | 15 | Acrylonitrile Butadiene Styrene (ABS) | Round | Plastic | Two Piece Backshell | 180 ° | 15pos HD26pos | Chrome | ||||||||||||||||||||
Adam Tech | Grounding Indents | Black | 15 | -55 °C | 105 ░C | Male Pins Plug | Copper Alloy | Flash | 3 A | Cable Side | Gold | Polybutylene Terephthalate (PBT) Glass Filled | 2 | 250 VAC | Free Hanging (In-Line) | D-Sub | 2 | UL94 V-0 | Stamped |
