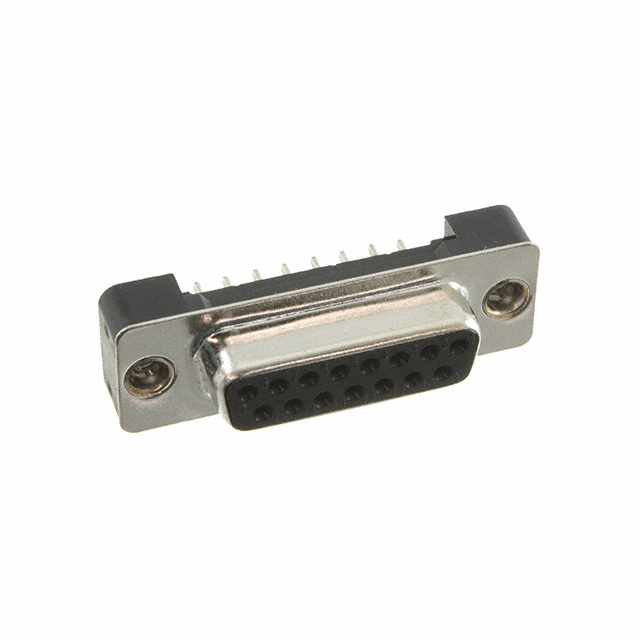

Specification	DA15-SA-M2

Color	Black
Connector Layout	A, DA
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Current Rating	1 A
Dielectric Material	Glass Filled, Polybutylene Terephthalate (PBT)
Flange Feature	Shell (4-40), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-65 °C
Shell Material, Finish	Steel
Shell Size	2
Termination	Solder
Voltage Rating	250 V

DA15 Series

Part	Shielding	Color	Material	Cable Type	Hardware	Compatible Shell Size	Compatible D-Sub Size	Number of Positions	Cable Exit Angle	Primary Material	Accessory Type	Features	Connector Style	Flange Feature	Connector Type	Number of Rows	Finish	Shell Material	Current Rating	Contact Finish	Mounting Type	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Shell Size	Connector Layout	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Dielectric Material	Contact Material	Voltage Rating	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Shell Material, Finish	Contact Form	Plating
Adam Tech DA15-HD-PB-TS	Unshielded	Black	Acrylonitrile Butadiene Styrene (ABS)	Round	Assembly Hardware Cable Clamp	A	15pos HD26pos	15	180 °	Plastic	Two Piece Backshell	Mating Screws 4-40
Adam Tech DA15-PF-M1		Black						15				Grounding Indents	D-Sub	Housing Shell (Unthreaded)	Male Pins Plug	2	Tin Plated	Steel	3 A	Gold	Free Hanging (In-Line)	UL94 V-0	0	Flash	Flash	2	A DA	IDC Ribbon Cable	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)	Phosphor Bronze	250 V	27.5 AWG	30 AWG
Adam Tech DA15-SA-M2		Black						15					D-Sub	Housing Shell (4-40)	Female Sockets Receptacle	2			1 A	Gold	Through Hole	UL94 V-0	0	Flash	Flash	2	A DA	Solder	125 °C	-65 °C	Glass Filled Polybutylene Terephthalate (PBT)	Copper Alloy	250 V			Steel
Adam Tech DA15-SD		Black						15					D-Sub	Housing Shell (Unthreaded)	Female Sockets Receptacle	2	Tin Plated	Steel	3 A	Gold	Free Hanging (In-Line)	UL94 V-0	0	Flash	Flash	2	A DA	Solder Cup	85 °C	-20 °C	Glass Filled Polybutylene Terephthalate (PBT)	Copper Alloy	250 V				Stamped
Adam Tech DA15-HD-AL-TS	Shielded		Aluminum Die Cast Zinc Die Cast	Round	Assembly Hardware Cable Clamp	A	15pos HD26pos	15	180 °	Metal	Two Piece Backshell	Mating Screws 4-40																										Chromate
Adam Tech DA15-PT-1-BL-JS		Black						15				Board Lock Grounding Indents	D-Sub	Board Side (4-40) Female Screwlock (4-40) Mating Side	Male Pins Plug	2	Tin Plated	Steel	3 A	Gold	Through Hole	UL94 V-0	0	Flash	Flash	2	A DA	Solder			Glass Filled Polybutylene Terephthalate (PBT)	Copper Alloy	250 V
Adam Tech DA15-ST-2		Black						15					D-Sub	Housing Shell (4-40)	Female Sockets Receptacle	2	Nickel Plated	Steel	5 A	Gold	Through Hole	UL94 V-0	0	Flash	Flash	2	A DA	Wire Wrap	125 °C	-55 °C	Glass Filled Thermoplastic	Brass	600 V
Adam Tech DA15-PT-2		Black						15				Grounding Indents	D-Sub	Housing Shell (4-40)	Male Pins Plug	2	Nickel Plated	Steel	5 A	Gold	Through Hole	UL94 V-0	0	Flash	Flash	2	A DA	Wire Wrap	125 °C	-55 °C	Glass Filled Thermoplastic	Brass	600 V
Adam Tech DA15-HD-PN-TS	Shielded	Silver	Acrylonitrile Butadiene Styrene (ABS)	Round	Assembly Hardware Cable Clamp	A	15pos HD26pos	15	180 °	Plastic	Two Piece Backshell	Mating Screws 4-40																										Chrome
Adam Tech DA15-PF-M2		Black						15				Grounding Indents	D-Sub	Housing Shell (4-40)	Male Pins Plug	2	Tin Plated	Steel	3 A	Gold	Free Hanging (In-Line)	UL94 V-0				2	A DA	IDC Ribbon Cable	105 °C	-55 °C	Thermoplastic	Copper Alloy	250 V
