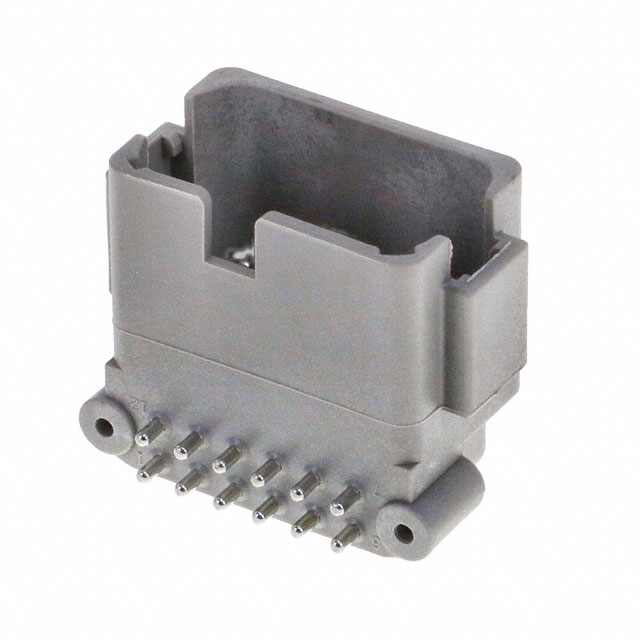

DTF13-12PA

Active

TE Connectivity Raychem Cable Protection

CONN HEADER R/A 12POS 4.44MM

Deep-Dive with AI

Search across all available documentation for this part.

DTF13-12PA

Active

TE Connectivity Raychem Cable Protection

CONN HEADER R/A 12POS 4.44MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DTF13-12PA

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	2.84 mm
Contact Length - Post	0.112 in
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Latch Holder
Ingress Protection	IP68
Insulation Color	Gray
Insulation Height	0.909 in
Insulation Height	23.09 mm
Insulation Material	Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.175 in
Pitch - Mating	4.44 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

DTF13 Series

Part	Contact Finish - Post	Contact Material	Contact Shape	Mounting Type	Number of Positions Loaded	Number of Positions	Fastening Type	Termination	Connector Type	Style	Pitch - Mating	Pitch - Mating	Contact Type	Applications	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Shrouding	Number of Rows	Current Rating (Amps)	Material Flammability Rating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Ingress Protection
TE Connectivity Raychem Cable Protection DTF13-4P	Tin	Copper Alloy	Circular	Through Hole Right Angle	All	4	Latch Holder	Solder	Header	Board to Cable/Wire	0.175 in	4.44 mm	Male Pin	Automotive	Black	0.12 in	3.05 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Shrouded - 4 Wall	2
TE Connectivity Raychem Cable Protection DTF13-3P	Tin		Circular	Through Hole Right Angle	All		Latch Holder	Solder	Receptacle	Board to Cable/Wire			Male Pin		Black			Nylon Polyamide (PA)	Shrouded - 4 Wall	2	13 A	UL94 V-0	250 VAC	-55 °C	125 °C	26.3 mm	1.035 in
TE Connectivity Raychem Cable Protection DTF13-12PB	Tin	Copper Alloy	Circular	Through Hole Right Angle	All	12	Latch Holder	Solder	Header	Board to Cable/Wire	0.175 in	4.44 mm	Male Pin	Automotive	Black			Thermoplastic	Shrouded - 4 Wall	2				-55 °C	125 °C	23.09 mm	0.909 in	2.84 mm	0.112 in	IP68
TE Connectivity Raychem Cable Protection DTF13-12PA	Tin	Copper Alloy	Circular	Through Hole Right Angle	All	12	Latch Holder	Solder	Header	Board to Cable/Wire	0.175 in	4.44 mm	Male Pin	Automotive	Gray			Thermoplastic	Shrouded - 4 Wall	2				-55 °C	125 °C	23.09 mm	0.909 in	2.84 mm	0.112 in	IP68
TE Connectivity Raychem Cable Protection DTF13-2P	Tin	Copper Alloy	Circular	Through Hole Right Angle	All	2	Latch Holder	Solder	Header	Board to Cable/Wire	0.215 in	5.46 mm	Male Pin	Automotive	Black	0.12 in	3.05 mm	Thermoplastic	Shrouded - 4 Wall	1				-55 °C	125 °C	19.3 mm	0.76 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 12.57
		10	$ 11.14
		25	$ 10.71
		40	$ 10.28
		80	$ 9.71
		280	$ 8.86
		560	$ 8.28
		1120	$ 7.60

Description

General part information

DTF13 Series

Connector Header Through Hole, Right Angle 12 position 0.175" (4.44mm)
