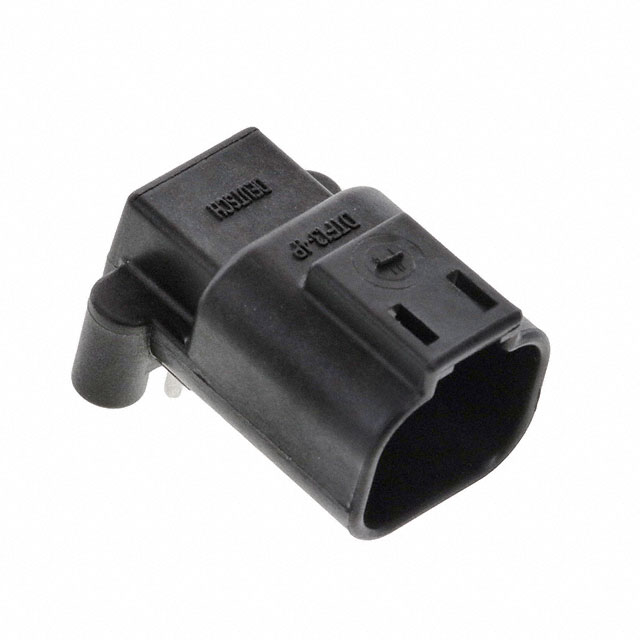

DTF13-4P

Active

TE Connectivity Raychem Cable Protection

CONN HEADER R/A 4POS 4.44MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DTF13-4P

Active

TE Connectivity Raychem Cable Protection

CONN HEADER R/A 4POS 4.44MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DTF13-4P

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Color	Black
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.175 in
Pitch - Mating	4.44 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

DTF13 Series

Part	Contact Finish - Post	Contact Material	Contact Shape	Mounting Type	Number of Positions Loaded	Number of Positions	Fastening Type	Termination	Connector Type	Style	Pitch - Mating	Pitch - Mating	Contact Type	Applications	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Shrouding	Number of Rows	Current Rating (Amps)	Material Flammability Rating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Ingress Protection
TE Connectivity Raychem Cable Protection DTF13-4P	Tin	Copper Alloy	Circular	Through Hole Right Angle	All	4	Latch Holder	Solder	Header	Board to Cable/Wire	0.175 in	4.44 mm	Male Pin	Automotive	Black	0.12 in	3.05 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Shrouded - 4 Wall	2
TE Connectivity Raychem Cable Protection DTF13-3P	Tin		Circular	Through Hole Right Angle	All		Latch Holder	Solder	Receptacle	Board to Cable/Wire			Male Pin		Black			Nylon Polyamide (PA)	Shrouded - 4 Wall	2	13 A	UL94 V-0	250 VAC	-55 °C	125 °C	26.3 mm	1.035 in
TE Connectivity Raychem Cable Protection DTF13-12PB	Tin	Copper Alloy	Circular	Through Hole Right Angle	All	12	Latch Holder	Solder	Header	Board to Cable/Wire	0.175 in	4.44 mm	Male Pin	Automotive	Black			Thermoplastic	Shrouded - 4 Wall	2				-55 °C	125 °C	23.09 mm	0.909 in	2.84 mm	0.112 in	IP68
TE Connectivity Raychem Cable Protection DTF13-12PA	Tin	Copper Alloy	Circular	Through Hole Right Angle	All	12	Latch Holder	Solder	Header	Board to Cable/Wire	0.175 in	4.44 mm	Male Pin	Automotive	Gray			Thermoplastic	Shrouded - 4 Wall	2				-55 °C	125 °C	23.09 mm	0.909 in	2.84 mm	0.112 in	IP68
TE Connectivity Raychem Cable Protection DTF13-2P	Tin	Copper Alloy	Circular	Through Hole Right Angle	All	2	Latch Holder	Solder	Header	Board to Cable/Wire	0.215 in	5.46 mm	Male Pin	Automotive	Black	0.12 in	3.05 mm	Thermoplastic	Shrouded - 4 Wall	1				-55 °C	125 °C	19.3 mm	0.76 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.35
		10	$ 7.10
		25	$ 6.65
		50	$ 6.34
		100	$ 6.03
		250	$ 5.66
		500	$ 6.03
		728	$ 5.25
		1000	$ 5.33
		1456	$ 5.00

Description

General part information

DTF13 Series

Connector Header Through Hole, Right Angle 4 position 0.175" (4.44mm)
