UF225(99)APA12-H1C2F

Active

Mechatronics Fan Group

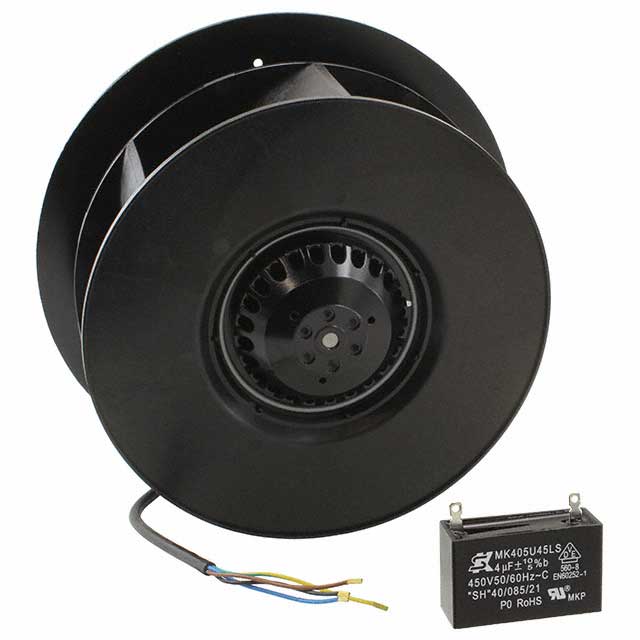

IMPELLER 225X99MM 115VAC RING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBackward Curved Impellers Datasheet +1

UF225(99)APA12-H1C2F

Active

Mechatronics Fan Group

IMPELLER 225X99MM 115VAC RING

Deep-Dive with AI

DocumentsBackward Curved Impellers Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 143.34
		16	$ 128.82
		32	$ 127.01
		56	$ 118.84

Description

General part information

UF225 Series

Fan Motorized Impellers 115VAC Round - 259mm Dia Ball 547.0 CFM (15.32m³/min) 4 Wire Leads

Documents

Technical documentation and resources

Backward Curved Impellers

Datasheet

AC Axial Part Numbering Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF225(99)APA12-H1C2F	UF225 Series

Air Flow	15.32 m³/min	15.32 - 21.56 mł/min
Air Flow	547 CFM	547 - 770 CFM
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	-	0.56 - 600 A
Fan Type	Motorized Impellers	Motorized Impellers
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material - Frame	Aluminum	Aluminum
Noise	71 dB(A)	71 - 75 dB(A)
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	160 W	125 - 160 W
RPM	2950 RPM	2950 - 3000 RPM
Size / Dimension [diameter]	259 mm	225 - 259 mm
Static Pressure	647.7 Pa	574.2 - 647.7 Pa
Static Pressure	2.6 in H2O	2.305 - 2.6 in H2O
Termination	4 Wire Leads	4 Wire Leads
Voltage - Rated	115 VAC	115 - 230 VAC
Weight	-	2.3 kg
Weight	-	5 lbs
Weight [custom]	5.7 lbs	5.7 lbs
Weight [custom]	2.6 kg	2.6 kg
Width	-	69 mm
Width [y]	117 mm	85 - 117 mm

UF225 Series

FAN IMP MTRZD 225X69MM 230VAC

Part	Static Pressure	Static Pressure	Approval Agency	Air Flow	Air Flow	Current Rating (Amps)	Weight	Weight	Material - Blade	Bearing Type	Termination	Width [x]	Material - Frame	Size / Dimension [diameter]	RPM	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Noise	Fan Type	Features	Width [y]	Weight [custom]	Weight [custom]
Mechatronics Fan Group UF225(69)APA23-H1C2A	2.305 in H2O	574.2 Pa	CE, cUL, TUV, UL	15.4 mł/min	550 CFM	0.56 A	2.3 kg	5 lbs	Nylon, Polyamide (PA)	Ball	4 Wire Leads	69 mm	Aluminum	225 mm	2950 RPM	125 W	50 °C	-40 °C	-40 °C	50 °C	230 VAC	72 dB(A)	Motorized Impellers	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)
Mechatronics Fan Group UF225(85)APA12-H1C2A	2.5 in H2O	622.7 Pa	CE, cUL, TUV, UL	19.04 m³/min	680 CFM	1.2 A	2.3 kg	5 lbs	Nylon, Polyamide (PA)	Ball	4 Wire Leads		Aluminum	225 mm	3000 RPM	135 W	50 °C	-40 °C	-40 °C	50 °C	115 VAC	75 dB(A)	Motorized Impellers	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	85 mm
Mechatronics Fan Group UF225(85)APA12-H1C2F			CE, cUL, TUV, UL				2.3 kg	5 lbs	Nylon, Polyamide (PA)	Ball	4 Wire Leads		Aluminum	225 mm			50 °C	-40 °C	-40 °C	50 °C	115 VAC		Motorized Impellers	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	85 mm
Mechatronics Fan Group UF225(99)APA23-H1C2F	2.6 in H2O	647.7 Pa	CE, cUL, TUV, UL	15.32 m³/min	547 CFM	0.7 A			Nylon, Polyamide (PA)	Ball	4 Wire Leads		Aluminum	259 mm	2950 RPM	157 W	50 °C	-40 °C	-40 °C	50 °C	230 VAC	71 dB(A)	Motorized Impellers	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	117 mm	5.7 lbs	2.6 kg
Mechatronics Fan Group UF225(99)APA12-H1C2A	2.6 in H2O	647.7 Pa	CE, cUL, TUV, UL	21.56 m³/min	770 CFM		2.3 kg	5 lbs	Nylon, Polyamide (PA)	Ball	4 Wire Leads		Aluminum	225 mm	2950 RPM	160 W	50 °C	-40 °C	-40 °C	50 °C	115 VAC	71 dB(A)	Motorized Impellers	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	99 mm
Mechatronics Fan Group UF225(85)APA23-H1C2A	2.5 in H2O	622.7 Pa	CE, cUL, TUV, UL	19.04 m³/min	680 CFM	600 mA	2.3 kg	5 lbs	Nylon, Polyamide (PA)	Ball	4 Wire Leads		Aluminum	225 mm	3000 RPM	135 W	50 °C	-40 °C	-40 °C	50 °C	230 VAC	75 dB(A)	Motorized Impellers	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	85 mm
Mechatronics Fan Group UF225(99)APA23-H1C2A	2.6 in H2O	647.7 Pa	CE, cUL, TUV, UL	21.56 m³/min	770 CFM	0.7 A	2.3 kg	5 lbs	Nylon, Polyamide (PA)	Ball	4 Wire Leads		Aluminum	225 mm	2950 RPM	157 W	50 °C	-40 °C	-40 °C	50 °C	230 VAC	71 dB(A)	Motorized Impellers	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	99 mm
Mechatronics Fan Group UF225(99)APA12-H1C2F	2.6 in H2O	647.7 Pa	CE, cUL, TUV, UL	15.32 m³/min	547 CFM				Nylon, Polyamide (PA)	Ball	4 Wire Leads		Aluminum	259 mm	2950 RPM	160 W	50 °C	-40 °C	-40 °C	50 °C	115 VAC	71 dB(A)	Motorized Impellers	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	117 mm	5.7 lbs	2.6 kg
