UF225(69)APA23-H1C2A

Active

Mechatronics Fan Group

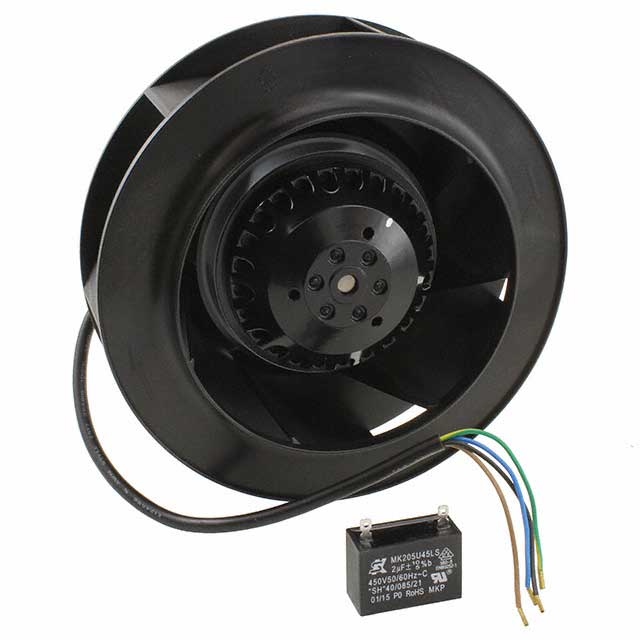

FAN IMP MTRZD 225X69MM 230VAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Backward Curved Impellers +1

UF225(69)APA23-H1C2A

Active

Mechatronics Fan Group

FAN IMP MTRZD 225X69MM 230VAC

Deep-Dive with AI

DocumentsDatasheet Backward Curved Impellers +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	8	$ 114.33

Description

General part information

UF225 Series

Fan Motorized Impellers 230VAC Round - 225mm Dia Ball 550.0 CFM (15.40m³/min) 4 Wire Leads

Documents

Technical documentation and resources

Datasheet

Backward Curved Impellers

Datasheet

AC Axial Part Numbering Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF225(69)APA23-H1C2A	UF225 Series

Air Flow	15.4 mł/min	15.32 - 21.56 mł/min
Air Flow	550 CFM	547 - 770 CFM
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.56 A	0.56 - 600 A
Fan Type	Motorized Impellers	Motorized Impellers
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material - Frame	Aluminum	Aluminum
Noise	72 dB(A)	71 - 75 dB(A)
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	125 W	125 - 160 W
RPM	2950 RPM	2950 - 3000 RPM
Size / Dimension [diameter]	225 mm	225 - 259 mm
Static Pressure	2.305 in H2O	2.305 - 2.6 in H2O
Static Pressure	574.2 Pa	574.2 - 647.7 Pa
Termination	4 Wire Leads	4 Wire Leads
Voltage - Rated	230 VAC	115 - 230 VAC
Weight	2.3 kg	2.3 kg
Weight	5 lbs	5 lbs
Weight	-	5.7 lbs
Weight	-	2.6 kg
Width	-	85 - 117 mm
Width [x]	69 mm	69 mm

UF225 Series

FAN IMP MTRZD 225X69MM 230VAC

Part	Static Pressure	Static Pressure	Approval Agency	Air Flow	Air Flow	Current Rating (Amps)	Weight	Weight	Material - Blade	Bearing Type	Termination	Width [x]	Material - Frame	Size / Dimension [diameter]	RPM	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Noise	Fan Type	Features	Width [y]	Weight [custom]	Weight [custom]
Mechatronics Fan Group UF225(69)APA23-H1C2A	2.305 in H2O	574.2 Pa	CE, cUL, TUV, UL	15.4 mł/min	550 CFM	0.56 A	2.3 kg	5 lbs	Nylon, Polyamide (PA)	Ball	4 Wire Leads	69 mm	Aluminum	225 mm	2950 RPM	125 W	50 °C	-40 °C	-40 °C	50 °C	230 VAC	72 dB(A)	Motorized Impellers	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)
Mechatronics Fan Group UF225(85)APA12-H1C2A	2.5 in H2O	622.7 Pa	CE, cUL, TUV, UL	19.04 m³/min	680 CFM	1.2 A	2.3 kg	5 lbs	Nylon, Polyamide (PA)	Ball	4 Wire Leads		Aluminum	225 mm	3000 RPM	135 W	50 °C	-40 °C	-40 °C	50 °C	115 VAC	75 dB(A)	Motorized Impellers	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	85 mm
Mechatronics Fan Group UF225(85)APA12-H1C2F			CE, cUL, TUV, UL				2.3 kg	5 lbs	Nylon, Polyamide (PA)	Ball	4 Wire Leads		Aluminum	225 mm			50 °C	-40 °C	-40 °C	50 °C	115 VAC		Motorized Impellers	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	85 mm
Mechatronics Fan Group UF225(99)APA23-H1C2F	2.6 in H2O	647.7 Pa	CE, cUL, TUV, UL	15.32 m³/min	547 CFM	0.7 A			Nylon, Polyamide (PA)	Ball	4 Wire Leads		Aluminum	259 mm	2950 RPM	157 W	50 °C	-40 °C	-40 °C	50 °C	230 VAC	71 dB(A)	Motorized Impellers	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	117 mm	5.7 lbs	2.6 kg
Mechatronics Fan Group UF225(99)APA12-H1C2A	2.6 in H2O	647.7 Pa	CE, cUL, TUV, UL	21.56 m³/min	770 CFM		2.3 kg	5 lbs	Nylon, Polyamide (PA)	Ball	4 Wire Leads		Aluminum	225 mm	2950 RPM	160 W	50 °C	-40 °C	-40 °C	50 °C	115 VAC	71 dB(A)	Motorized Impellers	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	99 mm
Mechatronics Fan Group UF225(85)APA23-H1C2A	2.5 in H2O	622.7 Pa	CE, cUL, TUV, UL	19.04 m³/min	680 CFM	600 mA	2.3 kg	5 lbs	Nylon, Polyamide (PA)	Ball	4 Wire Leads		Aluminum	225 mm	3000 RPM	135 W	50 °C	-40 °C	-40 °C	50 °C	230 VAC	75 dB(A)	Motorized Impellers	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	85 mm
Mechatronics Fan Group UF225(99)APA23-H1C2A	2.6 in H2O	647.7 Pa	CE, cUL, TUV, UL	21.56 m³/min	770 CFM	0.7 A	2.3 kg	5 lbs	Nylon, Polyamide (PA)	Ball	4 Wire Leads		Aluminum	225 mm	2950 RPM	157 W	50 °C	-40 °C	-40 °C	50 °C	230 VAC	71 dB(A)	Motorized Impellers	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	99 mm
Mechatronics Fan Group UF225(99)APA12-H1C2F	2.6 in H2O	647.7 Pa	CE, cUL, TUV, UL	15.32 m³/min	547 CFM				Nylon, Polyamide (PA)	Ball	4 Wire Leads		Aluminum	259 mm	2950 RPM	160 W	50 °C	-40 °C	-40 °C	50 °C	115 VAC	71 dB(A)	Motorized Impellers	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	117 mm	5.7 lbs	2.6 kg
