Description

General part information

857 Series

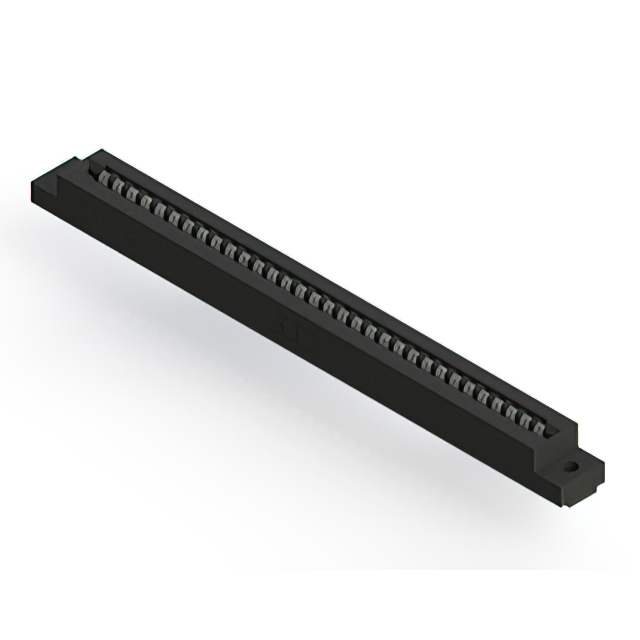

64 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	857-032-454-102

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Unthreaded, Top Opening
Flange Feature Diameter	0.128 in
Gender	Female
Material - Insulation	PPS, Polyphenylene Sulfide
Mounting Type	Through Hole, Right Angle
Number of Positions	64, 32
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder
Termination Rows	1 rows

857 Series

...

Part	Contact Material	Pitch	Contact Finish	Number of Positions	Number of Rows	Read Out	Card Type	Gender	Card Thickness (Min)	Card Thickness (Max)	Termination	Contact Finish Thickness	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Contact Type	Color	Flange Feature Diameter	Flange Feature	Material - Insulation	Termination Rows	Features
EDAC Inc. 857-026-505-104	Copper Alloy	0.156 in	Gold	26	1	Single	Non Specified Single Edge	Female	0.054 in	0.07 in	Solder Eyelet(s)	10 Ąin	125 °C	-40 °C	Through Hole	Semi Bellows	Black	0.156 in	Flush Mount Top Opening Unthreaded	Polyphenylene Sulfide PPS	1 rows
EDAC Inc. 857-038-400-202	Copper Alloy	0.156 in	Tin	19 38	2	Dual	Dual Edge Non Specified	Female	0.054 in	0.07 in	Solder Eyelet(s)		125 °C	-40 °C	Through Hole	Semi Bellows	Black	0.128 in	Flush Mount Top Opening Unthreaded
EDAC Inc. 857-052-440-203	Copper Alloy	0.156 in	Tin	26 52	2	Dual	Dual Edge Non Specified	Female	0.054 in	0.07 in	Wire Wrap		125 °C	-40 °C	Through Hole	Semi Bellows	Black	0.116 in	Floating Bobbin Flush Mount	Polyphenylene Sulfide PPS	2 rows
EDAC Inc. 857-017-527-107	Copper Alloy	0.156 in	Gold	17	1	Single	Non Specified Single Edge	Female	0.054 in	0.07 in	Solder	10 Ąin	125 °C	-40 °C	Through Hole	Semi Bellows	Black		Flush Mount M3 Threaded Insert Top Opening	Polyphenylene Sulfide PPS	1 rows
EDAC Inc. 857-009-553-102	Copper Alloy	0.156 in	Gold	9 18	2	Dual	Dual Edge Non Specified	Female	0.054 in	0.07 in	Solder	10 Ąin	125 °C	-40 °C	Right Angle Through Hole	Semi Bellows	Black	0.128 in	Flush Mount Top Opening Unthreaded
EDAC Inc. 857-032-454-102	Copper Alloy	0.156 in	Tin	32 64	2	Dual	Dual Edge Non Specified	Female	0.054 in	0.07 in	Solder		125 °C	-40 °C	Right Angle Through Hole	Semi Bellows	Black	0.128 in	Flush Mount Top Opening Unthreaded	Polyphenylene Sulfide PPS	1 rows
EDAC Inc. 857-042-455-203	Copper Alloy	0.156 in	Tin	21 42	2	Dual	Dual Edge Non Specified	Female	0.054 in	0.07 in	Solder		125 °C	-40 °C	Board Edge Straddle Mount	Semi Bellows	Black	0.116 in	Floating Bobbin Flush Mount			Card Extender
EDAC Inc. 857-020-405-104	Copper Alloy	0.156 in	Tin	20	1	Single	Non Specified Single Edge	Female	0.054 in	0.07 in	Solder Eyelet(s)		125 °C	-40 °C	Through Hole	Semi Bellows	Black	0.156 in	Flush Mount Top Opening Unthreaded	Polyphenylene Sulfide PPS	1 rows
EDAC Inc. 857-016-558-108	Copper Alloy	0.156 in	Gold	16	1	Single	Non Specified Single Edge	Female	0.054 in	0.07 in	Solder	10 Ąin	125 °C	-40 °C	Right Angle Through Hole	Semi Bellows	Black		4-40 Flush Mount Threaded Insert Top Opening	Polyphenylene Sulfide PPS	1 rows
EDAC Inc. 857-040-500-201	Copper Alloy	0.156 in	Gold	20 40	2	Dual	Dual Edge Non Specified	Female	0.054 in	0.07 in	Solder Eyelet(s)	10 Ąin	125 °C	-40 °C	Through Hole	Semi Bellows	Black
