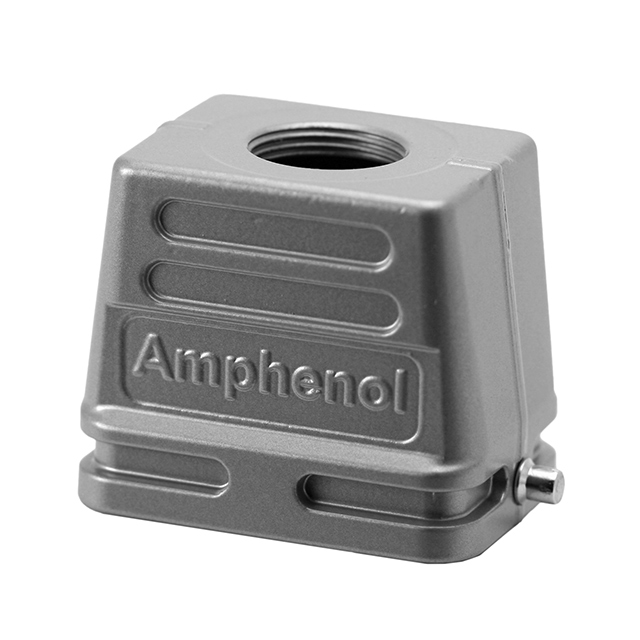

C146 21R006 656 1
ActiveAmphenol Tuchel Industrial
CONN HOOD TOP ENTRY SZE6 M16
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C146 21R006 656 1
ActiveAmphenol Tuchel Industrial
CONN HOOD TOP ENTRY SZE6 M16
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C146 21R006 656 1 |
|---|---|
| Connector Type | Hood |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 2.362 in |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 1.693 in |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [z] | 51 mm |
| Size / Dimension [z] | 2.008 in |
| Style | Top Entry |
| Thread Size | M16 |
C146 21R006 Series
| Part | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Style | Ingress Protection | Thread Size | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Housing Material | Lock Location |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Tuchel Industrial | Hood | 100 °C | -40 °C | Side Entry | IP65 - Dust Tight Water Resistant | M32 | 60 mm | 70 mm | 2.362 in | 1.693 in | 2.756 in | 43 mm | Aluminum Die Cast | Locking Clip (1) on Base Bottom |
Amphenol Tuchel Industrial | Hood | 100 °C | -40 °C | Top Entry | IP65 - Dust Tight Water Resistant | M16 | 60 mm | 51 mm | 2.362 in | 1.693 in | 2.008 in | 43 mm | Aluminum Alloy Die Cast | Locking Clip (1) on Base Bottom |
Amphenol Tuchel Industrial | Hood | 100 °C | -40 °C | Side Entry | IP65 - Dust Tight Water Resistant | M25 | 60 mm | 70 mm | 2.362 in | 1.693 in | 2.756 in | 43 mm | Aluminum Die Cast | Locking Clip (1) on Base Bottom |
Amphenol Tuchel Industrial | Hood | 100 °C | -40 °C | Top Entry | IP65 - Dust Tight Water Resistant | M25 | Aluminum Alloy Die Cast | Locking Clip (1) on Base Bottom |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 15.35 | |
Description
General part information
C146 21R006 Series
Hood Connector Top Entry M16 E6 IP65 - Dust Tight, Water Resistant
