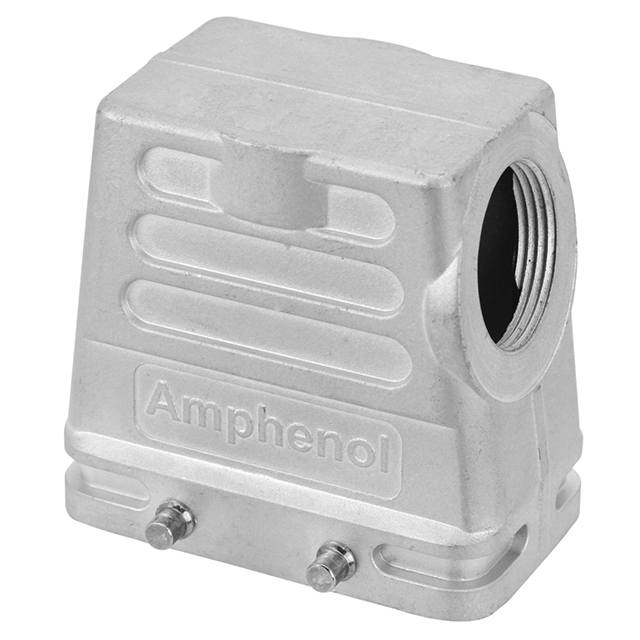

C146 21R006 506 8

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE6 M32

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE6 M32

Technical Specifications

Parameters and characteristics for this part

Specification	C146 21R006 506 8

Connector Type	Hood
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	60 mm
Size / Dimension [x]	2.362 in
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	70 mm
Size / Dimension [z]	2.756 in
Style	Side Entry
Thread Size	M32

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Style	Ingress Protection	Thread Size	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Housing Material	Lock Location
Amphenol Tuchel Industrial C146 21R006 506 8	Hood	100 °C	-40 °C	Side Entry	IP65 - Dust Tight Water Resistant	M32	60 mm	70 mm	2.362 in	1.693 in	2.756 in	43 mm	Aluminum Die Cast	Locking Clip (1) on Base Bottom
Amphenol Tuchel Industrial C146 21R006 656 1	Hood	100 °C	-40 °C	Top Entry	IP65 - Dust Tight Water Resistant	M16	60 mm	51 mm	2.362 in	1.693 in	2.008 in	43 mm	Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom
Amphenol Tuchel Industrial C146 21R006 556 8	Hood	100 °C	-40 °C	Side Entry	IP65 - Dust Tight Water Resistant	M25	60 mm	70 mm	2.362 in	1.693 in	2.756 in	43 mm	Aluminum Die Cast	Locking Clip (1) on Base Bottom
Amphenol Tuchel Industrial C146 21R006 607 1	Hood	100 °C	-40 °C	Top Entry	IP65 - Dust Tight Water Resistant	M25							Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 15.80

General part information

Hood Connector Side Entry M32 E6 IP65 - Dust Tight, Water Resistant
