408-023-540-222

Active

EDAC Inc.

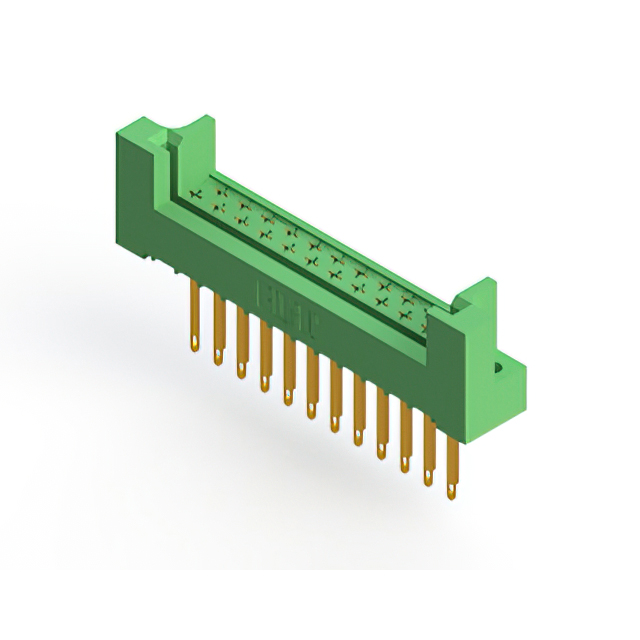

CARD EDGE CONNECTOR, 23 CONTACT(S), 2 ROW(S), HERMAPHRODITIC, 0.2 INCH PITCH, WIRE WRAP TERMINAL, HOLE 0.128, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

408-023-540-222

Active

EDAC Inc.

CARD EDGE CONNECTOR, 23 CONTACT(S), 2 ROW(S), HERMAPHRODITIC, 0.2 INCH PITCH, WIRE WRAP TERMINAL, HOLE 0.128, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	408-023-540-222

Card Thickness	0.093 in
Card Thickness	2.36 mm
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Features	Card Guides
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Panel Mount
Number of Positions	23
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Termination	Wire Wrap
Termination Rows	2

408-023 Series

Part	Color	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Pitch [x]	Pitch [x]	Material - Insulation	Termination	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Contact Finish	Card Thickness	Card Thickness	Mounting Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Contact Material	Features	Card Type
EDAC Inc. 408-023-540-222	Green	10 Áin	0.25 Ám	2	0.2 in	5.08 mm	Diallyl Phthalate (DAP)	Wire Wrap	2	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Gold	0.093 in	2.36 mm	Panel Mount Through Hole	23	125 °C	-65 ░C	Female	Copper Alloy	Card Guides	Non Specified - Dual Edge
EDAC Inc. 408-023-524-112	Green	10 Áin	0.25 Ám	2	0.2 in	5.08 mm	Diallyl Phthalate (DAP)	Solder	2	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Gold	0.062 in	1.57 mm	Panel Mount Through Hole	23	125 °C	-65 ░C	Female	Copper Alloy		Non Specified - Dual Edge
EDAC Inc. 408-023-525-122	Green	10 Áin	0.25 Ám	2	0.2 in	5.08 mm	Diallyl Phthalate (DAP)	Solder	2	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Gold	0.093 in	2.36 mm	Panel Mount Through Hole	23	125 °C	-65 ░C	Female	Copper Alloy		Non Specified - Dual Edge
EDAC Inc. 408-023-542-112	Green	10 Áin	0.25 Ám	2	0.2 in	5.08 mm	Diallyl Phthalate (DAP)	Wire Wrap	2	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Gold	0.062 in	1.57 mm	Panel Mount Through Hole	23	125 °C	-65 ░C	Female	Copper Alloy		Non Specified - Dual Edge
EDAC Inc. 408-023-524-122	Green	10 Áin	0.25 Ám	2	0.2 in	5.08 mm	Diallyl Phthalate (DAP)	Solder	2	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Gold	0.093 in	2.36 mm	Panel Mount Through Hole	23	125 °C	-65 ░C	Female	Copper Alloy		Non Specified - Dual Edge
EDAC Inc. 408-023-522-122	Green	10 Áin	0.25 Ám	2	0.2 in	5.08 mm	Diallyl Phthalate (DAP)	Solder	2	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Gold	0.093 in	2.36 mm	Panel Mount Through Hole	23	125 °C	-65 ░C	Female	Copper Alloy		Non Specified - Dual Edge
EDAC Inc. 408-023-502-122	Green	10 Áin	0.25 Ám	2	0.2 in	5.08 mm	Diallyl Phthalate (DAP)	Solder	2	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Gold	0.093 in	2.36 mm	Panel Mount Through Hole	23	125 °C	-65 ░C	Female	Copper Alloy		Non Specified - Dual Edge
EDAC Inc. 408-023-523-112	Green	10 Áin	0.25 Ám	2	0.2 in	5.08 mm	Diallyl Phthalate (DAP)	Solder	2	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Gold	0.062 in	1.57 mm	Panel Mount Through Hole	23	125 °C	-65 ░C	Female	Copper Alloy		Non Specified - Dual Edge
EDAC Inc. 408-023-523-122	Green	10 Áin	0.25 Ám	2	0.2 in	5.08 mm	Diallyl Phthalate (DAP)	Solder	2	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Gold	0.093 in	2.36 mm	Panel Mount Through Hole	23	125 °C	-65 ░C	Female	Copper Alloy		Non Specified - Dual Edge
EDAC Inc. 408-023-541-112	Green	10 Áin	0.25 Ám	2	0.2 in	5.08 mm	Diallyl Phthalate (DAP)	Wire Wrap	2	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Gold	0.062 in	1.57 mm	Panel Mount Through Hole	23	125 °C	-65 ░C	Female	Copper Alloy		Non Specified - Dual Edge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 24.54
Newark	Each	1	$ 29.20
		100	$ 20.52
		250	$ 19.12
		500	$ 16.96
		1000	$ 13.86

Description

General part information

408-023 Series

23 Position Female Connector Non Specified - Dual Edge Gold 0.200" (5.08mm) Green
