408-023-542-112
ActiveEDAC Inc.

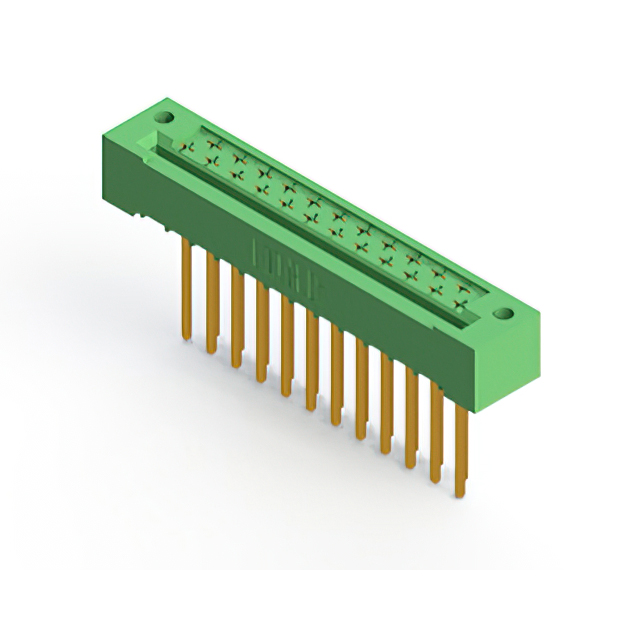

CONN EDGE DUAL FMALE 23POS 0.200
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
408-023-542-112
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 23POS 0.200
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 408-023-542-112 |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 23 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Termination | Wire Wrap |
| Termination Rows | 2 |
408-023 Series
| Part | Color | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Pitch [x] | Pitch [x] | Material - Insulation | Termination | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Contact Finish | Card Thickness | Card Thickness | Mounting Type | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Contact Material | Features | Card Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Green | 10 Áin | 0.25 Ám | 2 | 0.2 in | 5.08 mm | Diallyl Phthalate (DAP) | Wire Wrap | 2 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Gold | 0.093 in | 2.36 mm | Panel Mount Through Hole | 23 | 125 °C | -65 ░C | Female | Copper Alloy | Card Guides | Non Specified - Dual Edge |
EDAC Inc. | Green | 10 Áin | 0.25 Ám | 2 | 0.2 in | 5.08 mm | Diallyl Phthalate (DAP) | Solder | 2 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Gold | 0.062 in | 1.57 mm | Panel Mount Through Hole | 23 | 125 °C | -65 ░C | Female | Copper Alloy | Non Specified - Dual Edge | |
EDAC Inc. | Green | 10 Áin | 0.25 Ám | 2 | 0.2 in | 5.08 mm | Diallyl Phthalate (DAP) | Solder | 2 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Gold | 0.093 in | 2.36 mm | Panel Mount Through Hole | 23 | 125 °C | -65 ░C | Female | Copper Alloy | Non Specified - Dual Edge | |
EDAC Inc. | Green | 10 Áin | 0.25 Ám | 2 | 0.2 in | 5.08 mm | Diallyl Phthalate (DAP) | Wire Wrap | 2 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Gold | 0.062 in | 1.57 mm | Panel Mount Through Hole | 23 | 125 °C | -65 ░C | Female | Copper Alloy | Non Specified - Dual Edge | |
EDAC Inc. | Green | 10 Áin | 0.25 Ám | 2 | 0.2 in | 5.08 mm | Diallyl Phthalate (DAP) | Solder | 2 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Gold | 0.093 in | 2.36 mm | Panel Mount Through Hole | 23 | 125 °C | -65 ░C | Female | Copper Alloy | Non Specified - Dual Edge | |
EDAC Inc. | Green | 10 Áin | 0.25 Ám | 2 | 0.2 in | 5.08 mm | Diallyl Phthalate (DAP) | Solder | 2 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Gold | 0.093 in | 2.36 mm | Panel Mount Through Hole | 23 | 125 °C | -65 ░C | Female | Copper Alloy | Non Specified - Dual Edge | |
EDAC Inc. | Green | 10 Áin | 0.25 Ám | 2 | 0.2 in | 5.08 mm | Diallyl Phthalate (DAP) | Solder | 2 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Gold | 0.093 in | 2.36 mm | Panel Mount Through Hole | 23 | 125 °C | -65 ░C | Female | Copper Alloy | Non Specified - Dual Edge | |
EDAC Inc. | Green | 10 Áin | 0.25 Ám | 2 | 0.2 in | 5.08 mm | Diallyl Phthalate (DAP) | Solder | 2 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Gold | 0.062 in | 1.57 mm | Panel Mount Through Hole | 23 | 125 °C | -65 ░C | Female | Copper Alloy | Non Specified - Dual Edge | |
EDAC Inc. | Green | 10 Áin | 0.25 Ám | 2 | 0.2 in | 5.08 mm | Diallyl Phthalate (DAP) | Solder | 2 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Gold | 0.093 in | 2.36 mm | Panel Mount Through Hole | 23 | 125 °C | -65 ░C | Female | Copper Alloy | Non Specified - Dual Edge | |
EDAC Inc. | Green | 10 Áin | 0.25 Ám | 2 | 0.2 in | 5.08 mm | Diallyl Phthalate (DAP) | Wire Wrap | 2 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Gold | 0.062 in | 1.57 mm | Panel Mount Through Hole | 23 | 125 °C | -65 ░C | Female | Copper Alloy | Non Specified - Dual Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 25 | $ 25.95 | |
Description
General part information
408-023 Series
23 Position Female Connector Non Specified - Dual Edge Gold 0.200" (5.08mm) Green
