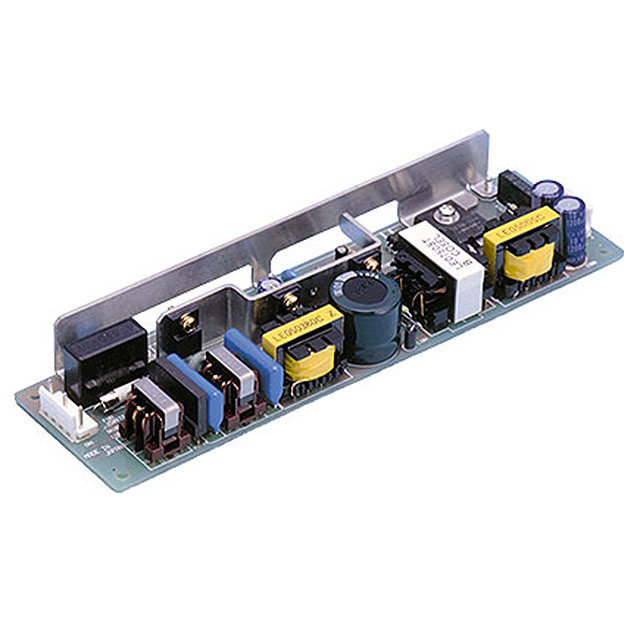

LEA50F-3R3-Y

Obsolete

Cosel USA, Inc.

AC/DC CONVERTER 3.3V 50W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LEA50F-3R3-Y

Obsolete

Cosel USA, Inc.

AC/DC CONVERTER 3.3V 50W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LEA50F-3R3-Y

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	10 A
Efficiency	71 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	50 W
Size / Dimension [x]	195 mm
Size / Dimension [x]	7.68 "
Size / Dimension [y]	2.17 in
Size / Dimension [y]	55 mm
Size / Dimension [z]	23 mm
Size / Dimension [z]	0.91 in
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	3.3 V

LEA50F Series

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Type	Efficiency	Voltage - Isolation	Number of Outputs	Applications	Current - Output 1	Voltage - Output 1	Power (Watts)	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Type
Cosel USA, Inc. LEA50F-24-HY	23 mm	195 mm	7.68 "	0.91 in	2.17 in	55 mm	Open Frame	83 %	3000 V	1	ITE (Commercial)	2.1 A	24 V	50 W	CE cURus TUV	-20 °C	70 °C	Adjustable Output Universal Input	Chassis Mount
Cosel USA, Inc. LEA50F-15-Y	23 mm	195 mm	7.68 "	0.91 in	2.17 in	55 mm	Open Frame	81 %	3000 V	1	ITE (Commercial)	3.5 A	15 V	50 W	CE cURus TUV	-20 °C	70 °C	Adjustable Output Universal Input	Chassis Mount
Cosel USA, Inc. LEA50F-15-SN	36 mm	225 mm	8.86 in	1.42 in	2.56 "	65 mm	Enclosed	81 %	3000 V	1	ITE (Commercial)	3.5 A	15 V	50 W	CE cURus TUV	-20 °C	70 °C	Universal Input	Chassis Mount
Cosel USA, Inc. LEA50F-24-SNH	36 mm	225 mm	8.86 in	1.42 in	2.56 "	65 mm	Enclosed	83 %	3000 V	1	ITE (Commercial)	2.1 A	24 V	50 W	CE cURus TUV	-20 °C	70 °C	Universal Input	Chassis Mount
Cosel USA, Inc. LEA50F-5-SN	36 mm	225 mm	8.86 in	1.42 in	2.56 "	65 mm	Enclosed	77 %	3000 V	1	ITE (Commercial)	10 A	5 V	50 W	CE cURus TUV	-20 °C	70 °C	Universal Input	Chassis Mount
Cosel USA, Inc. LEA50F-48	23 mm	195 mm	7.68 "	0.91 in	2.17 in	55 mm	Open Frame	85 %	3000 V	1	ITE (Commercial)	1.1 A	48 V	50 W	CE cURus TUV	-20 °C	70 °C	Universal Input	Chassis Mount
Cosel USA, Inc. LEA50F-3R3-Y	23 mm	195 mm	7.68 "	0.91 in	2.17 in	55 mm	Open Frame	71 %	3000 V	1	ITE (Commercial)	10 A	3.3 V	50 W	CE cURus TUV	-20 °C	70 °C	Adjustable Output Universal Input	Chassis Mount
Cosel USA, Inc. LEA50F-9	23 mm	195 mm	7.68 "	0.91 in	2.17 in	55 mm	Open Frame	80 %	3000 V	1	ITE (Commercial)	5.6 A	9 V	50 W	CE cURus TUV	-20 °C	70 °C	Universal Input	Chassis Mount
Cosel USA, Inc. LEA50F-24-SH	23 mm	195 mm	7.68 "	0.91 in	2.17 in	55 mm	Open Frame	83 %	3000 V	1	ITE (Commercial)	2.1 A	24 V	50 W	CE cURus TUV	-20 °C	70 °C	Universal Input	Chassis Mount
Cosel USA, Inc. LEA50F-24-H	23 mm	195 mm	7.68 "	0.91 in	2.17 in	55 mm	Open Frame	83 %	3000 V	1	ITE (Commercial)	2.1 A	24 V	50 W	CE cURus TUV	-20 °C	70 °C	Universal Input	Chassis Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 80.84

Description

General part information

LEA50F Series

Open Frame AC DC Converters 1 Output 3.3V 85 ~ 264 VAC Input
