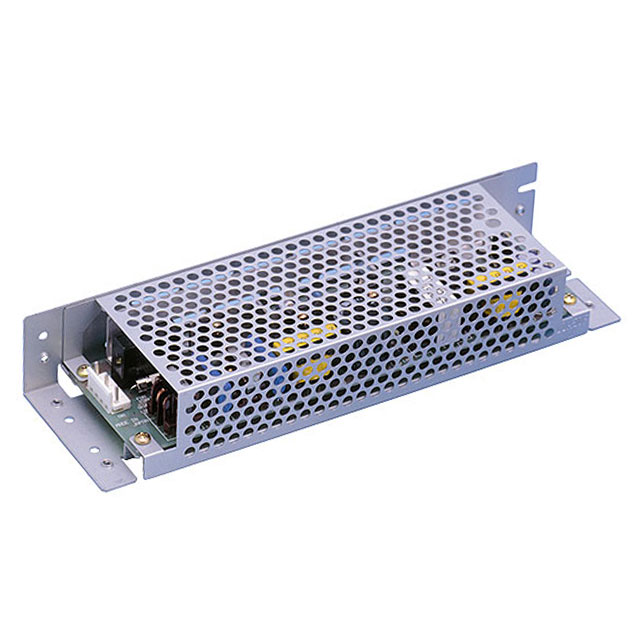

LEA50F-24-SNH
ObsoleteCosel USA, Inc.
AC/DC CONVERTER 24V 50W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LEA50F-24-SNH
ObsoleteCosel USA, Inc.
AC/DC CONVERTER 24V 50W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LEA50F-24-SNH |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, TUV |
| Current - Output 1 | 2.1 A |
| Efficiency | 83 % |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 50 W |
| Size / Dimension [x] | 225 mm |
| Size / Dimension [x] | 8.86 in |
| Size / Dimension [y] | 2.56 " |
| Size / Dimension [y] | 65 mm |
| Size / Dimension [z] | 1.42 in |
| Size / Dimension [z] | 36 mm |
| Type | Enclosed |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
LEA50F Series
| Part | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Type | Efficiency | Voltage - Isolation | Number of Outputs | Applications | Current - Output 1 | Voltage - Output 1 | Power (Watts) | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cosel USA, Inc. | 23 mm | 195 mm | 7.68 " | 0.91 in | 2.17 in | 55 mm | Open Frame | 83 % | 3000 V | 1 | ITE (Commercial) | 2.1 A | 24 V | 50 W | CE cURus TUV | -20 °C | 70 °C | Adjustable Output Universal Input | Chassis Mount |
Cosel USA, Inc. | 23 mm | 195 mm | 7.68 " | 0.91 in | 2.17 in | 55 mm | Open Frame | 81 % | 3000 V | 1 | ITE (Commercial) | 3.5 A | 15 V | 50 W | CE cURus TUV | -20 °C | 70 °C | Adjustable Output Universal Input | Chassis Mount |
Cosel USA, Inc. | 36 mm | 225 mm | 8.86 in | 1.42 in | 2.56 " | 65 mm | Enclosed | 81 % | 3000 V | 1 | ITE (Commercial) | 3.5 A | 15 V | 50 W | CE cURus TUV | -20 °C | 70 °C | Universal Input | Chassis Mount |
Cosel USA, Inc. | 36 mm | 225 mm | 8.86 in | 1.42 in | 2.56 " | 65 mm | Enclosed | 83 % | 3000 V | 1 | ITE (Commercial) | 2.1 A | 24 V | 50 W | CE cURus TUV | -20 °C | 70 °C | Universal Input | Chassis Mount |
Cosel USA, Inc. | 36 mm | 225 mm | 8.86 in | 1.42 in | 2.56 " | 65 mm | Enclosed | 77 % | 3000 V | 1 | ITE (Commercial) | 10 A | 5 V | 50 W | CE cURus TUV | -20 °C | 70 °C | Universal Input | Chassis Mount |
Cosel USA, Inc. | 23 mm | 195 mm | 7.68 " | 0.91 in | 2.17 in | 55 mm | Open Frame | 85 % | 3000 V | 1 | ITE (Commercial) | 1.1 A | 48 V | 50 W | CE cURus TUV | -20 °C | 70 °C | Universal Input | Chassis Mount |
Cosel USA, Inc. | 23 mm | 195 mm | 7.68 " | 0.91 in | 2.17 in | 55 mm | Open Frame | 71 % | 3000 V | 1 | ITE (Commercial) | 10 A | 3.3 V | 50 W | CE cURus TUV | -20 °C | 70 °C | Adjustable Output Universal Input | Chassis Mount |
Cosel USA, Inc. | 23 mm | 195 mm | 7.68 " | 0.91 in | 2.17 in | 55 mm | Open Frame | 80 % | 3000 V | 1 | ITE (Commercial) | 5.6 A | 9 V | 50 W | CE cURus TUV | -20 °C | 70 °C | Universal Input | Chassis Mount |
Cosel USA, Inc. | 23 mm | 195 mm | 7.68 " | 0.91 in | 2.17 in | 55 mm | Open Frame | 83 % | 3000 V | 1 | ITE (Commercial) | 2.1 A | 24 V | 50 W | CE cURus TUV | -20 °C | 70 °C | Universal Input | Chassis Mount |
Cosel USA, Inc. | 23 mm | 195 mm | 7.68 " | 0.91 in | 2.17 in | 55 mm | Open Frame | 83 % | 3000 V | 1 | ITE (Commercial) | 2.1 A | 24 V | 50 W | CE cURus TUV | -20 °C | 70 °C | Universal Input | Chassis Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LEA50F Series
Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
