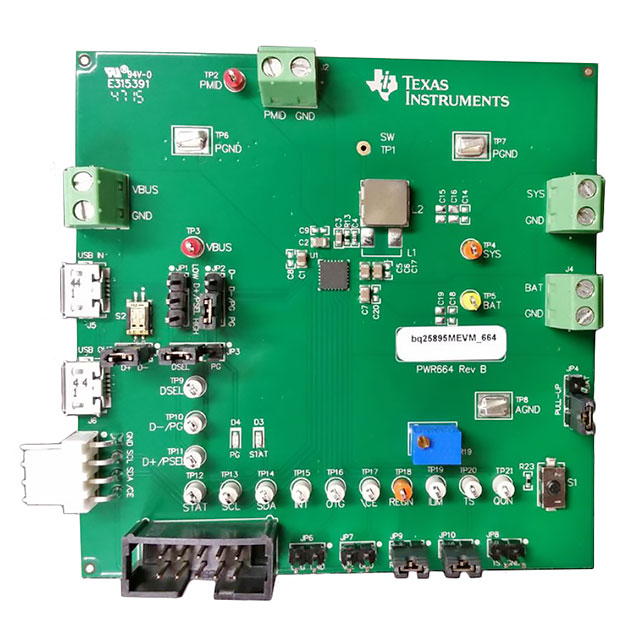

BQ25895MEVM-664
ActiveCOMPLETE CHARGER EVALUATION MODU
Deep-Dive with AI
Search across all available documentation for this part.
BQ25895MEVM-664
ActiveCOMPLETE CHARGER EVALUATION MODU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ25895MEVM-664 | BQ25895 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Charge Current - Max | - | 5 A |
| Contents | Board(s) | Board(s) |
| Fault Protection | - | Over Temperature |
| Function | Battery Charger | Battery Charger |
| Interface | - | I2C, USB |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 24-WFQFN Exposed Pad |
| Secondary Attributes | - | On-Board LEDs |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 24-WQFN (4x4) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ25895M | BQ25895, BQ25895M |
| Voltage - Supply (Max) | - | 14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 178.80 | |
BQ25895 Series
I2C 1cell 5A buck battery charger with high input voltage and 3.1-A boost with HVDCP enabled
| Part | Mounting Type | Charge Current - Max [Max] | Interface | Package / Case | Battery Chemistry | Supplier Device Package | Voltage - Supply (Max) [Max] | Number of Cells | Operating Temperature [Max] | Operating Temperature [Min] | Fault Protection | Supplied Contents | Secondary Attributes | Utilized IC / Part | Function | Type | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ25895RTWR | Surface Mount | 5 A | I2C, USB | 24-WFQFN Exposed Pad | Lithium Ion/Polymer | 24-WQFN (4x4) | 14 V | 1 | 85 °C | -40 °C | Over Temperature | ||||||
Texas Instruments BQ25895EVM-664 | Board(s) | On-Board LEDs | BQ25895 | Battery Charger | Power Management | ||||||||||||
Texas Instruments BQ25895MRTWT | Surface Mount | 5 A | I2C, USB | 24-WFQFN Exposed Pad | Lithium Ion/Polymer | 24-WQFN (4x4) | 14 V | 1 | 85 °C | -40 °C | Over Temperature | ||||||
Texas Instruments BQ25895MRTWR | Surface Mount | 5 A | I2C, USB | 24-WFQFN Exposed Pad | Lithium Ion/Polymer | 24-WQFN (4x4) | 14 V | 1 | 85 °C | -40 °C | Over Temperature | ||||||
Texas Instruments BQ25895MEVM-664 | Board(s) | BQ25895M | Battery Charger | Power Management | Board(s) | ||||||||||||
Texas Instruments BQ25895RTWT | Surface Mount | 5 A | I2C, USB | 24-WFQFN Exposed Pad | Lithium Ion/Polymer | 24-WQFN (4x4) | 14 V | 1 | 85 °C | -40 °C | Over Temperature |
Description
General part information
BQ25895 Series
The BQ25895 is a highly-integrated 5-A switch-mode battery charge management and system power path management device for single cell Li-Ion and Li-polymer battery. The devices support high input voltage fast charging. The low impedance power path optimizes switch-mode operation efficiency, reduces battery charging time and extends battery life during discharging phase.
The BQ25895 is a highly-integrated 5-A switch-mode battery charge management and system power path management device for single cell Li-Ion and Li-polymer battery. The devices support high input voltage fast charging. The low impedance power path optimizes switch-mode operation efficiency, reduces battery charging time and extends battery life during discharging phase.
