Part	Package / Case	Current - Collector (Ic) (Max)	IGBT Type	Power - Max	Input	Mounting Type	Package Name	Current - Collector Cutoff (Max)	Vce(on) (Max)	Configuration	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Collector Emitter Breakdown (Max)	Input Capacitance (Cies) @ Vce
Microchip Technology APTGT400A120D3G	D-3 Module	580 A	Trench Field Stop	2100 W	Standard	Chassis Mount	D3	750 µA	2.1 V	Half Bridge	-40 °C	150 °C	1200 V	29 nF
Microchip Technology APTGT400U120D4G	D4	600 A	Trench Field Stop	2250 W	Standard	Chassis Mount	D4	8 mA	2.1 V	Single	-40 °C	150 °C	1200 V	28 nF
Microchip Technology APTGT400A120G	SP6	560 A	Trench Field Stop	1785 W	Standard	Chassis Mount	SP6	750 µA	2.1 V	Half Bridge	-40 °C	150 °C	1200 V	28 nF

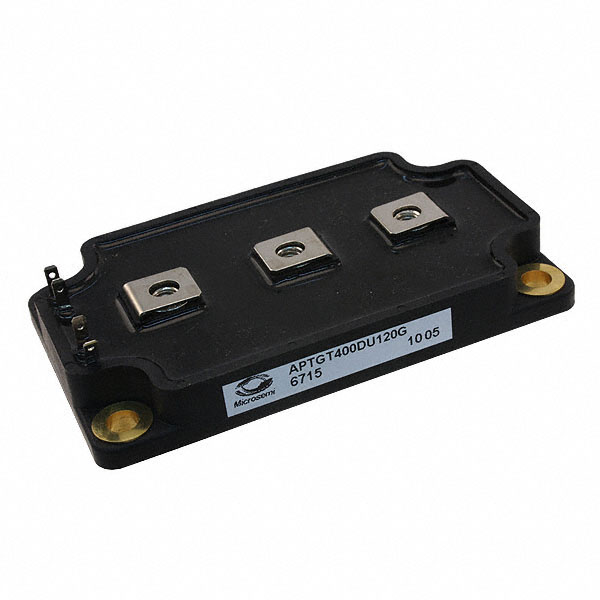

Microchip Technology APTGT400DU120G	SP6	560 A	Trench Field Stop	1785 W	Standard	Chassis Mount	SP6	750 µA	2.1 V	Common Source Dual	-40 °C	150 °C	1200 V	28 nF
Microchip Technology APTGT400TL65G
Microchip Technology APTGT400SK120G	SP6	560 A	Trench Field Stop	1785 W	Standard	Chassis Mount	SP6	750 µA	2.1 V	Single	-40 °C	150 °C	1200 V	28 nF
Microchip Technology APTGT400A60D3G	D-3 Module	500 A	Trench Field Stop	1250 W	Standard	Chassis Mount	D3	500 µA	1.9 V	Half Bridge	-40 °C	175 °C	600 V	24 nF
Microchip Technology APTGT400DA60D3G	D-3 Module	500 A	Trench Field Stop	1250 W	Standard	Chassis Mount	D3	500 µA	1.9 V	Single	-40 °C	175 °C	600 V	24 nF
Microchip Technology APTGT400DA120G	SP6	560 A	Trench Field Stop	1785 W	Standard	Chassis Mount	SP6	750 µA	2.1 V	Single	-40 °C	150 °C	1200 V	28 nF
Microchip Technology APTGT400U170D4G	D4	800 A	Trench Field Stop	2080 W	Standard	Chassis Mount	D4	1 mA	2.4 V	Single			1700 V	33 nF
