Technical Specifications
Parameters and characteristics for this part

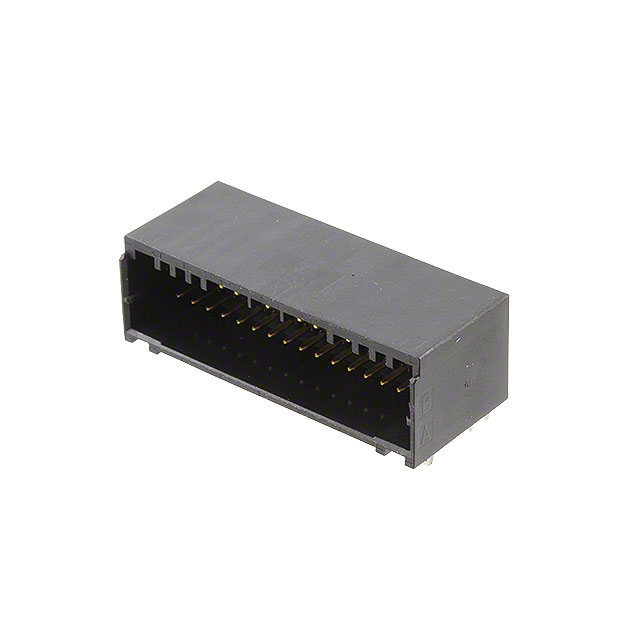

| Specification | 1-1939638-7 |
|---|---|
| Applications | General Purpose, Industrial |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm |
| Contact Finish Thickness - Post | 2 çm |
| Contact Finish Thickness - Post | 78.7 çin |
| Contact Length - Post | 0.122 " |
| Contact Length - Post | 3.1 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Detent Lock |
| Insulation Color | Black |
| Insulation Height | 0.465 in |
| Insulation Height | 11.8 mm |
| Insulation Material | Thermoplastic, Glass Filled, Polyester |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 34 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating [x] | 3.3 mm |
| Row Spacing - Mating [x] | 0.13 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 125 VDC |
Dynamic 1000 Series Series
Headers & Wire Housings TAB 28-22 AWG 15 AU
...
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Shape | Contact Finish - Mating | Number of Positions Loaded | Material Flammability Rating | Number of Positions | Applications | Pitch - Mating | Pitch - Mating | Voltage Rating | Contact Material | Insulation Height | Insulation Height | Fastening Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post | Shrouding | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Color | Insulation Material | Connector Type | Contact Type | Mounting Type | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Number of Rows | Features | Contact Length - Post | Contact Length - Post | Pitch - Mating [x] | Pitch - Mating [x] | Contact Termination | Color | Row Spacing | Row Spacing | Note | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 105 ░C | -55 °C | 5 A | 3.3 mm | 0.13 in | Square | Gold | All | UL94 V-0 | 8 | General Purpose Industrial | 2.5 mm | 0.098 in | 250 VDC | Copper Alloy | 12.44 mm | 0.49 in | Detent Lock | 2 çm | 78.7 çin | Tin | Shrouded - 4 Wall | 0.12 in | 3.05 mm | Black | Glass Filled Polyester Thermoplastic | Header | Male Pin | Through Hole | Board to Board Cable | 15 µin | 0.38 µm | Solder | 2 | ||||||||||||
TE Connectivity Raychem Cable Protection | ||||||||||||||||||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 105 ░C | -30 ░C | 3.3 mm | 0.13 in | Rectangular | Gold | All | UL94 V-0 | 12 | 3.5 mm | 0.138 in | Copper Alloy | 11.8 mm | 0.465 in | Push-Pull | 2 çm | 78.7 çin | Tin | Shrouded - 4 Wall | Black | Glass Filled Polyester Thermoplastic | Header | Male Pin | Through Hole Right Angle | Board to Cable/Wire | 15 µin | 0.38 µm | Solder | 2 | Board Guide | 0.118 in | 3 mm | ||||||||||||||
TE Connectivity Raychem Cable Protection | 105 ░C | -55 °C | 3.3 mm | 0.13 in | Square | All | UL94 V-0 | 22 positions | Copper Alloy | 12.44 mm | 0.49 in | Push-Pull | Tin | Shrouded - 4 Wall | 0.12 in | 3.05 mm | Black | Glass Filled Polyester Thermoplastic | Header | Male Pin | Through Hole | Board to Cable/Wire | Solder | 2 | 0.079 in | 2 mm | ||||||||||||||||||||
TE Connectivity Raychem Cable Protection | ||||||||||||||||||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 105 ░C | -55 °C | 20 | Push-Pull | Glass Filled Polyester Thermoplastic | Plug | Tab | Free Hanging (In-Line) | 2 | Crimp | Black | 0.13 in | 3.3 mm | Contacts Not Included | 0.098 in | 2.5 mm | ||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 105 ░C | -30 ░C | 4 A | 3.3 mm | 0.13 in | Rectangular | Gold | All | UL94 V-0 | 8 | General Purpose Industrial | 3.5 mm | 0.138 in | 150 VDC | Copper Alloy | 12.44 mm | 0.49 in | Detent Lock | 2 çm | 78.7 çin | Tin | Shrouded - 4 Wall | 0.12 in | 3.05 mm | Black | Polyamide (PA66) Nylon 6/6 Glass Filled | Header | Tab | Through Hole | Board to Board Cable | 15 µin | 0.38 µm | Solder | 2 | ||||||||||||
TE Connectivity Raychem Cable Protection | 105 ░C | -55 °C | 3 A | 3.3 mm | 0.13 in | Square | Gold | All | UL94 V-0 | 34 | General Purpose Industrial | 125 VDC | Copper Alloy | 11.8 mm | 0.465 in | Detent Lock | 2 çm | 78.7 çin | Tin | Shrouded - 4 Wall | Black | Glass Filled Polyester Thermoplastic | Header | Male Pin | Through Hole Right Angle | Board to Board Cable | 15 µin | 0.38 µm | Solder | 2 | 0.122 " | 3.1 mm | 0.079 in | 2 mm | ||||||||||||
TE Connectivity Raychem Cable Protection | 105 ░C | -55 °C | 3 A | 3.3 mm | 0.13 in | Square | Gold | All | UL94 V-0 | 28 | General Purpose Industrial | 125 VDC | Copper Alloy | 11.8 mm | 0.465 in | Detent Lock | 2 çm | 78.7 çin | Tin | Shrouded - 4 Wall | Black | Glass Filled Polyester Thermoplastic | Header | Male Pin | Through Hole Right Angle | Board to Board Cable | 15 µin | 0.38 µm | Solder | 2 | 0.122 " | 3.1 mm | 0.079 in | 2 mm | ||||||||||||
TE Connectivity Raychem Cable Protection | 105 ░C | -30 ░C | 4 A | 3.3 mm | 0.13 in | Rectangular | Gold | All | UL94 V-0 | 22 positions | General Purpose Industrial | 3.5 mm | 0.138 in | 150 VDC | Copper Alloy | 12.44 mm | 0.49 in | Detent Lock | 2 çm | 78.7 çin | Tin | Shrouded - 4 Wall | 0.12 in | 3.05 mm | Black | Polyamide (PA66) Nylon 6/6 Glass Filled | Header | Tab | Through Hole | Board to Board Cable | 15 µin | 0.38 µm | Solder | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
Dynamic 1000 Series Series
Headers & Wire Housings TAB 28-22 AWG 15 AU
