1-1871935-6

Active

TE Connectivity Raychem Cable Protection

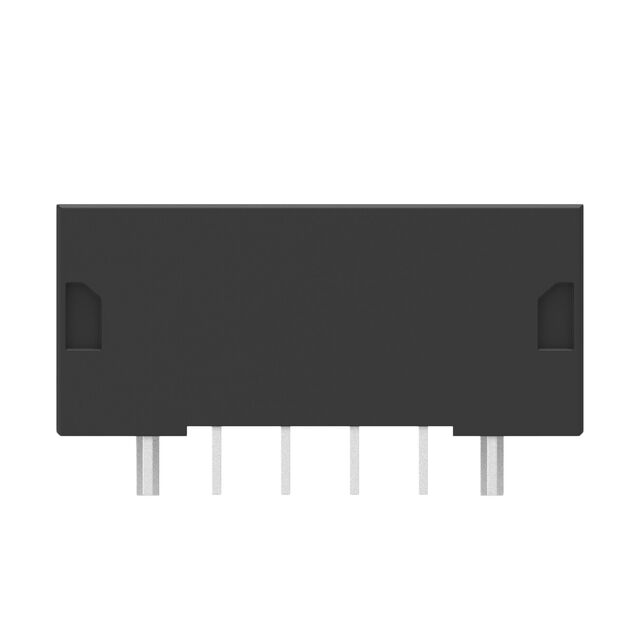

DYNAMIC 1900D HDR ASSY H-TYPE 12

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-1871935-6

Active

TE Connectivity Raychem Cable Protection

DYNAMIC 1900D HDR ASSY H-TYPE 12

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-1871935-6

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	0.465 in
Insulation Height	11.8 mm
Insulation Material	Thermoplastic, Glass Filled, Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch - Mating	0.138 in
Pitch - Mating	3.5 mm
Row Spacing - Mating [x]	3.3 mm
Row Spacing - Mating [x]	0.13 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Dynamic 1000 Series Series

Headers & Wire Housings TAB 28-22 AWG 15 AU

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Contact Finish - Mating	Number of Positions Loaded	Material Flammability Rating	Number of Positions	Applications	Pitch - Mating	Pitch - Mating	Voltage Rating	Contact Material	Insulation Height	Insulation Height	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Insulation Material	Connector Type	Contact Type	Mounting Type	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Number of Rows	Features	Contact Length - Post	Contact Length - Post	Pitch - Mating [x]	Pitch - Mating [x]	Contact Termination	Color	Row Spacing	Row Spacing	Note	Pitch [x]	Pitch [x]
TE Connectivity Raychem Cable Protection 2-1827875-4	105 ░C	-55 °C	5 A	3.3 mm	0.13 in	Square	Gold	All	UL94 V-0	8	General Purpose Industrial	2.5 mm	0.098 in	250 VDC	Copper Alloy	12.44 mm	0.49 in	Detent Lock	2 çm	78.7 çin	Tin	Shrouded - 4 Wall	0.12 in	3.05 mm	Black	Glass Filled Polyester Thermoplastic	Header	Male Pin	Through Hole	Board to Board Cable	15 µin	0.38 µm	Solder	2
TE Connectivity Raychem Cable Protection 1-2348454-6
TE Connectivity Raychem Cable Protection 1-1871935-6	105 ░C	-30 ░C		3.3 mm	0.13 in	Rectangular	Gold	All	UL94 V-0	12		3.5 mm	0.138 in		Copper Alloy	11.8 mm	0.465 in	Push-Pull	2 çm	78.7 çin	Tin	Shrouded - 4 Wall			Black	Glass Filled Polyester Thermoplastic	Header	Male Pin	Through Hole Right Angle	Board to Cable/Wire	15 µin	0.38 µm	Solder	2	Board Guide	0.118 in	3 mm
TE Connectivity Raychem Cable Protection 1-1871315-1	105 ░C	-55 °C		3.3 mm	0.13 in	Square		All	UL94 V-0	22 positions					Copper Alloy	12.44 mm	0.49 in	Push-Pull			Tin	Shrouded - 4 Wall	0.12 in	3.05 mm	Black	Glass Filled Polyester Thermoplastic	Header	Male Pin	Through Hole	Board to Cable/Wire			Solder	2				0.079 in	2 mm
TE Connectivity Raychem Cable Protection 1-2349949-6
TE Connectivity Raychem Cable Protection 1-1903130-0	105 ░C	-55 °C								20								Push-Pull								Glass Filled Polyester Thermoplastic	Plug	Tab	Free Hanging (In-Line)					2						Crimp	Black	0.13 in	3.3 mm	Contacts Not Included	0.098 in	2.5 mm
TE Connectivity Raychem Cable Protection 1-2013325-4	105 ░C	-30 ░C	4 A	3.3 mm	0.13 in	Rectangular	Gold	All	UL94 V-0	8	General Purpose Industrial	3.5 mm	0.138 in	150 VDC	Copper Alloy	12.44 mm	0.49 in	Detent Lock	2 çm	78.7 çin	Tin	Shrouded - 4 Wall	0.12 in	3.05 mm	Black	Polyamide (PA66) Nylon 6/6 Glass Filled	Header	Tab	Through Hole	Board to Board Cable	15 µin	0.38 µm	Solder	2
TE Connectivity Raychem Cable Protection 1-1939638-7	105 ░C	-55 °C	3 A	3.3 mm	0.13 in	Square	Gold	All	UL94 V-0	34	General Purpose Industrial			125 VDC	Copper Alloy	11.8 mm	0.465 in	Detent Lock	2 çm	78.7 çin	Tin	Shrouded - 4 Wall			Black	Glass Filled Polyester Thermoplastic	Header	Male Pin	Through Hole Right Angle	Board to Board Cable	15 µin	0.38 µm	Solder	2		0.122 "	3.1 mm	0.079 in	2 mm
TE Connectivity Raychem Cable Protection 1-1939638-4	105 ░C	-55 °C	3 A	3.3 mm	0.13 in	Square	Gold	All	UL94 V-0	28	General Purpose Industrial			125 VDC	Copper Alloy	11.8 mm	0.465 in	Detent Lock	2 çm	78.7 çin	Tin	Shrouded - 4 Wall			Black	Glass Filled Polyester Thermoplastic	Header	Male Pin	Through Hole Right Angle	Board to Board Cable	15 µin	0.38 µm	Solder	2		0.122 "	3.1 mm	0.079 in	2 mm
TE Connectivity Raychem Cable Protection 2-2013325-1	105 ░C	-30 ░C	4 A	3.3 mm	0.13 in	Rectangular	Gold	All	UL94 V-0	22 positions	General Purpose Industrial	3.5 mm	0.138 in	150 VDC	Copper Alloy	12.44 mm	0.49 in	Detent Lock	2 çm	78.7 çin	Tin	Shrouded - 4 Wall	0.12 in	3.05 mm	Black	Polyamide (PA66) Nylon 6/6 Glass Filled	Header	Tab	Through Hole	Board to Board Cable	15 µin	0.38 µm	Solder	2
