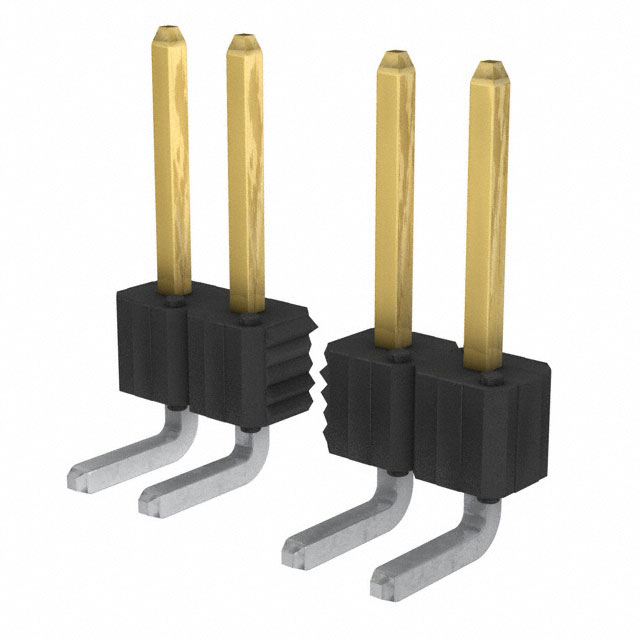

10082201-102-36LF

Active

Amphenol ICC (FCI)

CONN HEADER R/A 36POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 54122-810161900LF +1

10082201-102-36LF

Active

Amphenol ICC (FCI)

CONN HEADER R/A 36POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet 54122-810161900LF +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10082201-102-36LF

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold or Gold, GXT™
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	0.266 in
Contact Length - Mating	6.75 mm
Contact Length - Post	2.5 mm
Contact Length - Post	0.098 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.094 in
Insulation Height	2.4 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	36
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

10082201 Series

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Finish - Post	Features	Contact Finish - Mating	Mounting Type	Termination	Contact Material	Number of Rows	Fastening Type	Number of Positions Loaded	Shrouding	Contact Type	Connector Type	Contact Length - Post	Contact Length - Post	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Number of Positions	Material Flammability Rating	Insulation Height	Insulation Height	Contact Shape	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating [x]
Amphenol ICC (FCI) 10082201-104A06LF	2 çm	78.7 çin	3 A	Tin	Pick and Place	Gold or Gold GXT™	Through Hole Right Angle	Solder	Phosphor Bronze	1	Push-Pull	All	Unshrouded	Male Pin	Breakaway Header	0.118 in	3 mm	Black	0.1 in	2.54 mm	30 Áin	0.76 Ám	Thermoplastic	6	UL94 V-0	0.094 in	2.4 mm	Square	0.266 in	6.75 mm	-65 ░C	130 °C
Amphenol ICC (FCI) 10082201-105-06LF	2 çm	78.7 çin	3 A	Tin		Gold or Gold GXT™	Through Hole Right Angle	Solder	Phosphor Bronze	1	Push-Pull	All	Unshrouded	Male Pin	Breakaway Header	0.118 in	3 mm	Black	0.1 in	2.54 mm	30 Áin	0.76 Ám	Thermoplastic	6	UL94 V-0	0.094 in	2.4 mm	Square	0.457 in	11.6 mm	-65 ░C	130 °C
Amphenol ICC (FCI) 10082201-101-10LF	2 çm	78.7 çin	3 A	Tin		Gold or Gold GXT™	Through Hole Right Angle	Solder	Phosphor Bronze	1	Push-Pull	All	Unshrouded	Male Pin	Breakaway Header	0.098 in	2.5 mm	Black	0.1 in	2.54 mm	30 Áin	0.76 Ám	Thermoplastic	10	UL94 V-0	0.094 in	2.4 mm	Square		5.84 mm	-65 ░C	130 °C	0.23 in
Amphenol ICC (FCI) 10082201-404-10LF	2 çm	78.7 çin	3 A	Tin			Through Hole Right Angle	Solder	Phosphor Bronze	1	Push-Pull	All	Unshrouded	Male Pin	Breakaway Header	0.118 in	3 mm	Black	0.1 in	2.54 mm	78.7 µin	2 µm	Thermoplastic	10	UL94 V-0	0.094 in	2.4 mm	Square	0.266 in	6.75 mm	-65 ░C	130 °C
Amphenol ICC (FCI) 10082201-101-07LF	2 çm	78.7 çin	3 A	Tin		Gold or Gold GXT™	Through Hole Right Angle	Solder	Phosphor Bronze	1	Push-Pull	All	Unshrouded	Male Pin	Breakaway Header	0.098 in	2.5 mm	Black	0.1 in	2.54 mm	30 Áin	0.76 Ám	Thermoplastic	7	UL94 V-0	0.094 in	2.4 mm	Square		5.84 mm	-65 ░C	130 °C	0.23 in
Amphenol ICC (FCI) 10082201-102-36LF	2 çm	78.7 çin	3 A	Tin		Gold or Gold GXT™	Through Hole Right Angle	Solder	Phosphor Bronze	1	Push-Pull	All	Unshrouded	Male Pin	Breakaway Header	0.098 in	2.5 mm	Black	0.1 in	2.54 mm	30 Áin	0.76 Ám	Thermoplastic	36	UL94 V-0	0.094 in	2.4 mm	Square	0.266 in	6.75 mm	-65 ░C	130 °C
Amphenol ICC (FCI) 10082201-101-06LF	2 çm	78.7 çin	3 A	Tin		Gold or Gold GXT™	Through Hole Right Angle	Solder	Phosphor Bronze	1	Push-Pull	All	Unshrouded	Male Pin	Breakaway Header	0.098 in	2.5 mm	Black	0.1 in	2.54 mm	30 Áin	0.76 Ám	Thermoplastic	6	UL94 V-0	0.094 in	2.4 mm	Square		5.84 mm	-65 ░C	130 °C	0.23 in
Amphenol ICC (FCI) 10082201-104-20LF	2 çm	78.7 çin	3 A	Tin		Gold or Gold GXT™	Through Hole Right Angle	Solder	Phosphor Bronze	1	Push-Pull	All	Unshrouded	Male Pin	Breakaway Header	0.118 in	3 mm	Black	0.1 in	2.54 mm	30 Áin	0.76 Ám	Thermoplastic	20	UL94 V-0	0.094 in	2.4 mm	Square	0.266 in	6.75 mm	-65 ░C	130 °C
Amphenol ICC (FCI) 10082201-406K06LF	2 çm	78.7 çin	3 A	Tin			Through Hole Right Angle	Solder	Phosphor Bronze	1	Push-Pull	All	Unshrouded	Male Pin	Breakaway Header	0.169 in	4.3 mm	Black	0.1 in	2.54 mm	78.7 µin	2 µm	Thermoplastic	6	UL94 V-0	0.094 in	2.4 mm	Square	0.374 in	9.5 mm	-65 ░C	130 °C
Amphenol ICC (FCI) 10082201-101-20LF	2 çm	78.7 çin	3 A	Tin		Gold or Gold GXT™	Through Hole Right Angle	Solder	Phosphor Bronze	1	Push-Pull	All	Unshrouded	Male Pin	Breakaway Header	0.098 in	2.5 mm	Black	0.1 in	2.54 mm	30 Áin	0.76 Ám	Thermoplastic	20	UL94 V-0	0.094 in	2.4 mm	Square		5.84 mm	-65 ░C	130 °C	0.23 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	800	$ 2.19

Description

General part information

10082201 Series

Connector Header Through Hole, Right Angle 36 position 0.100" (2.54mm)
