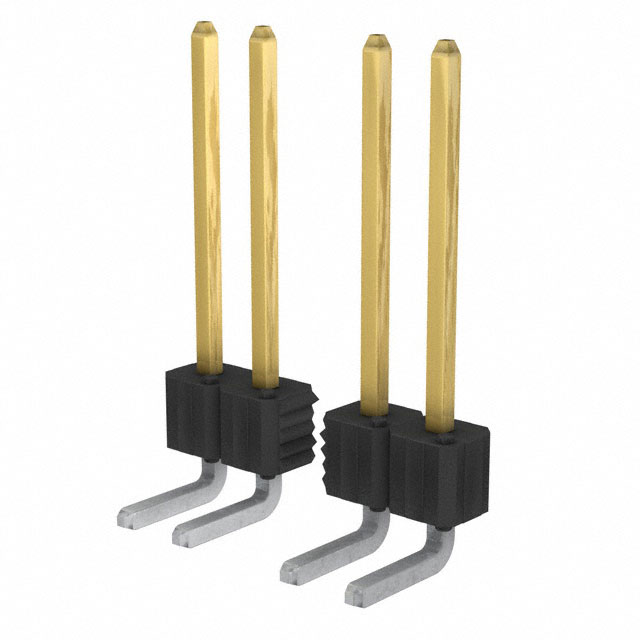

10082201-105-06LF
ActiveAmphenol ICC (FCI)
CONN HEADER R/A 6POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
10082201-105-06LF
ActiveAmphenol ICC (FCI)
CONN HEADER R/A 6POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10082201-105-06LF |
|---|---|
| Connector Type | Breakaway, Header |
| Contact Finish - Mating | Gold or Gold, GXT™ |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 2 çm |
| Contact Finish Thickness - Post | 78.7 çin |
| Contact Length - Mating | 0.457 in |
| Contact Length - Mating | 11.6 mm |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.094 in |
| Insulation Height | 2.4 mm |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
10082201 Series
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Current Rating (Amps) | Contact Finish - Post | Features | Contact Finish - Mating | Mounting Type | Termination | Contact Material | Number of Rows | Fastening Type | Number of Positions Loaded | Shrouding | Contact Type | Connector Type | Contact Length - Post | Contact Length - Post | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Material | Number of Positions | Material Flammability Rating | Insulation Height | Insulation Height | Contact Shape | Contact Length - Mating | Contact Length - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 2 çm | 78.7 çin | 3 A | Tin | Pick and Place | Gold or Gold GXT™ | Through Hole Right Angle | Solder | Phosphor Bronze | 1 | Push-Pull | All | Unshrouded | Male Pin | Breakaway Header | 0.118 in | 3 mm | Black | 0.1 in | 2.54 mm | 30 Áin | 0.76 Ám | Thermoplastic | 6 | UL94 V-0 | 0.094 in | 2.4 mm | Square | 0.266 in | 6.75 mm | -65 ░C | 130 °C | |
Amphenol ICC (FCI) | 2 çm | 78.7 çin | 3 A | Tin | Gold or Gold GXT™ | Through Hole Right Angle | Solder | Phosphor Bronze | 1 | Push-Pull | All | Unshrouded | Male Pin | Breakaway Header | 0.118 in | 3 mm | Black | 0.1 in | 2.54 mm | 30 Áin | 0.76 Ám | Thermoplastic | 6 | UL94 V-0 | 0.094 in | 2.4 mm | Square | 0.457 in | 11.6 mm | -65 ░C | 130 °C | ||
Amphenol ICC (FCI) | 2 çm | 78.7 çin | 3 A | Tin | Gold or Gold GXT™ | Through Hole Right Angle | Solder | Phosphor Bronze | 1 | Push-Pull | All | Unshrouded | Male Pin | Breakaway Header | 0.098 in | 2.5 mm | Black | 0.1 in | 2.54 mm | 30 Áin | 0.76 Ám | Thermoplastic | 10 | UL94 V-0 | 0.094 in | 2.4 mm | Square | 5.84 mm | -65 ░C | 130 °C | 0.23 in | ||
Amphenol ICC (FCI) | 2 çm | 78.7 çin | 3 A | Tin | Through Hole Right Angle | Solder | Phosphor Bronze | 1 | Push-Pull | All | Unshrouded | Male Pin | Breakaway Header | 0.118 in | 3 mm | Black | 0.1 in | 2.54 mm | 78.7 µin | 2 µm | Thermoplastic | 10 | UL94 V-0 | 0.094 in | 2.4 mm | Square | 0.266 in | 6.75 mm | -65 ░C | 130 °C | |||
Amphenol ICC (FCI) | 2 çm | 78.7 çin | 3 A | Tin | Gold or Gold GXT™ | Through Hole Right Angle | Solder | Phosphor Bronze | 1 | Push-Pull | All | Unshrouded | Male Pin | Breakaway Header | 0.098 in | 2.5 mm | Black | 0.1 in | 2.54 mm | 30 Áin | 0.76 Ám | Thermoplastic | 7 | UL94 V-0 | 0.094 in | 2.4 mm | Square | 5.84 mm | -65 ░C | 130 °C | 0.23 in | ||
Amphenol ICC (FCI) | 2 çm | 78.7 çin | 3 A | Tin | Gold or Gold GXT™ | Through Hole Right Angle | Solder | Phosphor Bronze | 1 | Push-Pull | All | Unshrouded | Male Pin | Breakaway Header | 0.098 in | 2.5 mm | Black | 0.1 in | 2.54 mm | 30 Áin | 0.76 Ám | Thermoplastic | 36 | UL94 V-0 | 0.094 in | 2.4 mm | Square | 0.266 in | 6.75 mm | -65 ░C | 130 °C | ||
Amphenol ICC (FCI) | 2 çm | 78.7 çin | 3 A | Tin | Gold or Gold GXT™ | Through Hole Right Angle | Solder | Phosphor Bronze | 1 | Push-Pull | All | Unshrouded | Male Pin | Breakaway Header | 0.098 in | 2.5 mm | Black | 0.1 in | 2.54 mm | 30 Áin | 0.76 Ám | Thermoplastic | 6 | UL94 V-0 | 0.094 in | 2.4 mm | Square | 5.84 mm | -65 ░C | 130 °C | 0.23 in | ||
Amphenol ICC (FCI) | 2 çm | 78.7 çin | 3 A | Tin | Gold or Gold GXT™ | Through Hole Right Angle | Solder | Phosphor Bronze | 1 | Push-Pull | All | Unshrouded | Male Pin | Breakaway Header | 0.118 in | 3 mm | Black | 0.1 in | 2.54 mm | 30 Áin | 0.76 Ám | Thermoplastic | 20 | UL94 V-0 | 0.094 in | 2.4 mm | Square | 0.266 in | 6.75 mm | -65 ░C | 130 °C | ||
Amphenol ICC (FCI) | 2 çm | 78.7 çin | 3 A | Tin | Through Hole Right Angle | Solder | Phosphor Bronze | 1 | Push-Pull | All | Unshrouded | Male Pin | Breakaway Header | 0.169 in | 4.3 mm | Black | 0.1 in | 2.54 mm | 78.7 µin | 2 µm | Thermoplastic | 6 | UL94 V-0 | 0.094 in | 2.4 mm | Square | 0.374 in | 9.5 mm | -65 ░C | 130 °C | |||
Amphenol ICC (FCI) | 2 çm | 78.7 çin | 3 A | Tin | Gold or Gold GXT™ | Through Hole Right Angle | Solder | Phosphor Bronze | 1 | Push-Pull | All | Unshrouded | Male Pin | Breakaway Header | 0.098 in | 2.5 mm | Black | 0.1 in | 2.54 mm | 30 Áin | 0.76 Ám | Thermoplastic | 20 | UL94 V-0 | 0.094 in | 2.4 mm | Square | 5.84 mm | -65 ░C | 130 °C | 0.23 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.69 | |
| 10 | $ 0.52 | |||
| 100 | $ 0.42 | |||
| 500 | $ 0.38 | |||
| 1000 | $ 0.32 | |||
| 5000 | $ 0.29 | |||
Description
General part information
10082201 Series
Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)
