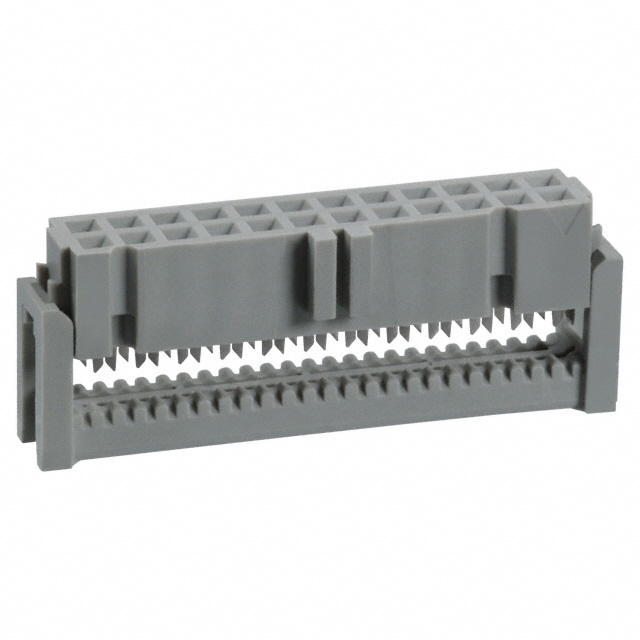

89124-0101

Active

3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 24 CONTACTS, CABLE MOUNT

Search across all available documentation for this part.

Active

3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 24 CONTACTS, CABLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Cable Termination	Wire Type	Contact Finish Thickness	Contact Finish Thickness	Row Spacing [x]	Row Spacing	Mounting Type	Number of Positions	Contact Type	Pitch [x]	Pitch [x]	Features	Number of Rows	Color	Connector Type
3M (TC) 89124-0103	Gold	IDC	Ribbon Cable	0.76 Ám	30 Áin	0.1 in	2.54 mm	Free Hanging (In-Line)	24	Female Socket	2.54 mm	0.1 in	Feed Through Polarizing Key Strain Relief	2	Gray	Receptacle
3M (TC) 89124-0101	Gold	IDC	Ribbon Cable	0.76 Ám	30 Áin	0.1 in	2.54 mm	Free Hanging (In-Line)	24	Female Socket	2.54 mm	0.1 in	Feed Through Polarizing Key	2	Gray	Receptacle
3M (TC) 89124-0001	Gold	IDC	Ribbon Cable	0.76 Ám	30 Áin	0.1 in	2.54 mm	Free Hanging (In-Line)	24	Female Socket	2.54 mm	0.1 in	Feed Through	2	Gray	Receptacle
