3M (TC)

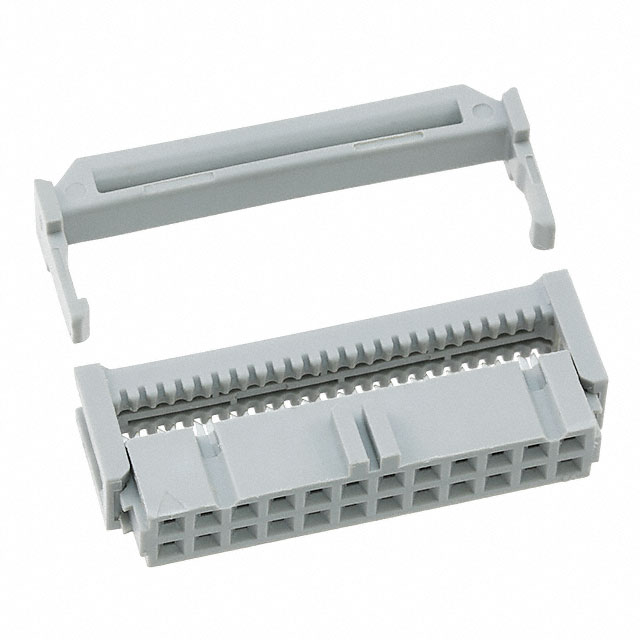

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 24 CONTACTS, CABLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	89124-0103

Cable Termination	IDC
Color	Gray
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Female Socket
Features	Feed Through, Polarizing Key, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	24
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

Part	Contact Finish	Cable Termination	Wire Type	Contact Finish Thickness	Contact Finish Thickness	Row Spacing [x]	Row Spacing	Mounting Type	Number of Positions	Contact Type	Pitch [x]	Pitch [x]	Features	Number of Rows	Color	Connector Type
3M (TC) 89124-0103	Gold	IDC	Ribbon Cable	0.76 Ám	30 Áin	0.1 in	2.54 mm	Free Hanging (In-Line)	24	Female Socket	2.54 mm	0.1 in	Feed Through Polarizing Key Strain Relief	2	Gray	Receptacle
3M (TC) 89124-0101	Gold	IDC	Ribbon Cable	0.76 Ám	30 Áin	0.1 in	2.54 mm	Free Hanging (In-Line)	24	Female Socket	2.54 mm	0.1 in	Feed Through Polarizing Key	2	Gray	Receptacle
3M (TC) 89124-0001	Gold	IDC	Ribbon Cable	0.76 Ám	30 Áin	0.1 in	2.54 mm	Free Hanging (In-Line)	24	Female Socket	2.54 mm	0.1 in	Feed Through	2	Gray	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG
